12V Snow Plow Motor Solenoid Kit Compatible With Meyer E47 E57 E60 Diamond Hydraulic Pump Cw Slotted

(0) Reviews: Write first review
10710KT*2
MOTOR OEM PART NUMBERS:
• Iskra: 11-212-981
• Meyer: 15687 / 15689 / 15727 / 15753
• Meyer: 2529AB / 2529AC / 2869AB / 2869AC
• Prestolite: 46-4196 / MUE-6209 / MUE-6209S
• W-8991

SOLENOID OEM PART NUMBERS:
• Meyer: 15370
• C.E. Niehoff: AL147 / DR135A
• Chrysler: 1658880 / 1658882 / 1692658 / 2084876 / 3620766 / 596903 / 3225624 / 3225629
• Chrysler: CH2326 / CH2332 / CH2335 / CH2361 / LM2303
• Cole Hersee: 24020 / 24022-05 / M24022 / 24022BX
• Delco: 1114205 / 1114215 / 1114233 / 1119901 / 1456 / 1466 / 1498 / 1544 / 2095360
• Delco: A903 / A914 / D927 / F900
• Ford: D20Z-11450-A / F-900 / FD-900 / SW1080 / SW263
• Motorcraft: 15-12 / 15-5 / 15-75 / D2OZ11450A / D2SF11450AB / SW27 / SWX12 / SWX75 / SWY118
• Pollak: 52-303 / 52-303P
• Prestolite: 15-426 / 15-5 / SAZ4201E / SS4008 / SS4011 / SS4023 / SAS-4203C92
• NSN: 2920000900890 / 2920001485074 / 5945010900890

MOTOR SPECIFICATIONS:
• Voltage: 12V
• Rotation: CW (Clockwise)
• Power: 1.7kW / 2.28 HP
• Shaft OD: 15mm Slotted
• Terminal: 5/16-24
• Housing OD: 114.3mm / 4.5 in
• Overall Length: 168.3mm / 6.626 in
• Bearings: Double Ball Bearing
• Ground: Common Ground

SOLENOID SPECIFICATIONS:
• Voltage: 12V
• Terminals: 3
• Duty Cycle: Intermittent
• Base: Grounded
• Mounting: 9/32 x 1/2 Holes, 2-7/32 Center-to-Center
• Weight: 17 lbs (kit total)
• Condition: New

APPLICATION:
• Meyer E47, E57, E60 Hydraulic Pump Units
• Diamond Snow Plow Quick Lift Systems

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $311.66
Sale: $178.09
Save: 43%
Save: $133.57
Qty:
Free Shipping!

Description

MEYER SNOW PLOW PUMP APPLICATIONS:
• Meyer E47 Hydraulic Pump Motor Systems
• Meyer E57 Hydraulic Pump Unit (Lift and Angle Functions)
• Meyer E60 Hydraulic Pump Unit (Lift, Angle Left, and Angle Right)
• Meyer Snow Plow Quick Lift Systems
• Meyer Plow Pump Assemblies Using Part Numbers 2869AB and 2869AC

DIAMOND SNOW PLOW APPLICATIONS:
• Diamond Snow Plow Quick Lift Hydraulic Pump Systems
• Diamond Snow Plow Lift Motor and Solenoid Applications

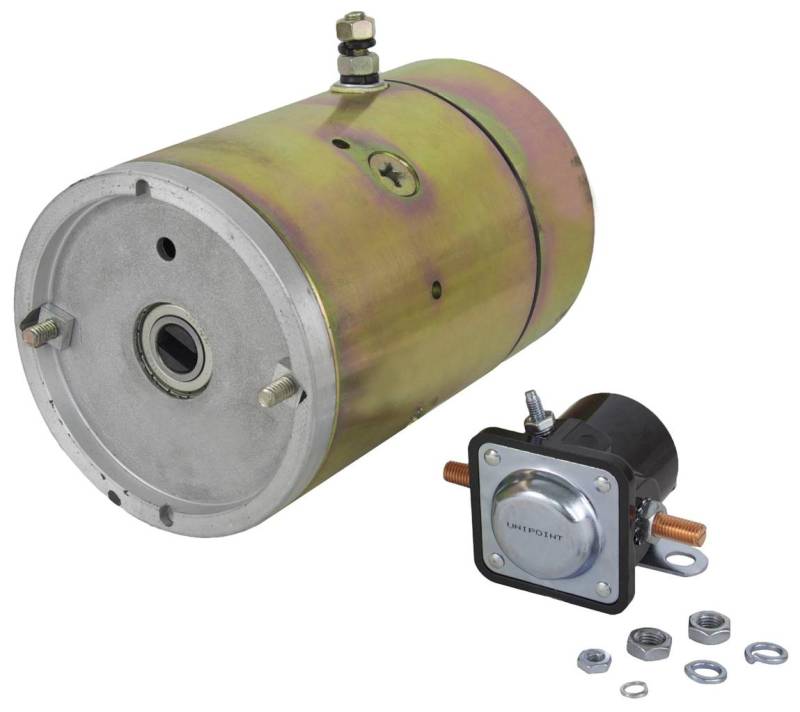

KIT INCLUDES:
• 12V CW Electric Motor with 15mm Slotted Shaft
• 12V 3-Terminal Solenoid with Grounded Base

MOTOR FEATURES:
• 15mm (0.591 in) Slotted Output Shaft
• 5/16-24 Terminal Connection
• 4.5-Inch (114.3mm) Frame Diameter
• 6.626-Inch (168.3mm) Overall Length
• Double Ball Bearing Construction
• Common Ground Configuration
• 1.7kW / 2.28 HP Output

SOLENOID FEATURES:
• 12V DC, 3-Terminal Design
• Intermittent Duty Cycle
• Grounded Base Configuration
• Mounting Bracket Holes: 9/32 x 1/2, 2-7/32 Center-to-Center

COMPATIBLE PUMP SYSTEMS:
• Meyer E47 Pump (Angle Function)
• Meyer E57 Pump (Lift and Angle Functions)
• Meyer E60 Pump (Lift, Angle Left, and Angle Right Functions)
• Diamond Quick Lift Pump Systems
• Used on Commercial and Residential Snow Plow Installations

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
