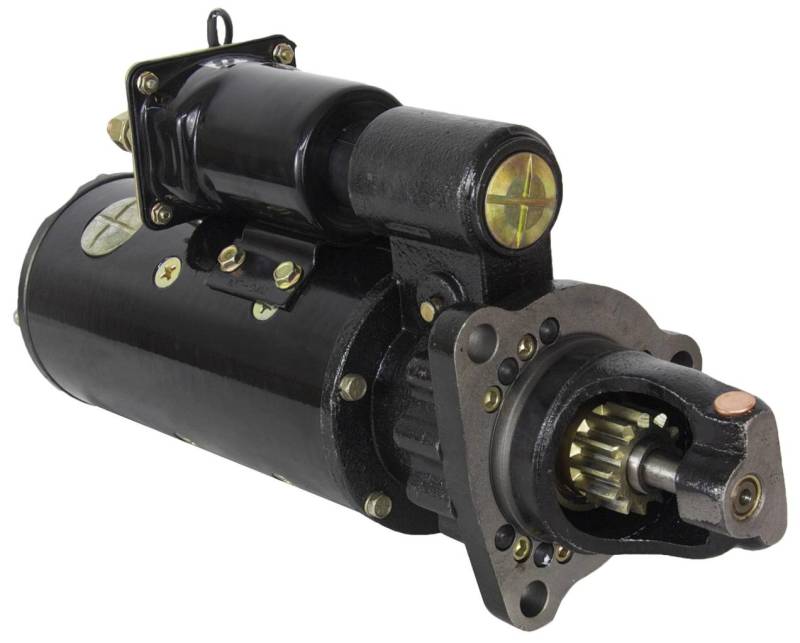

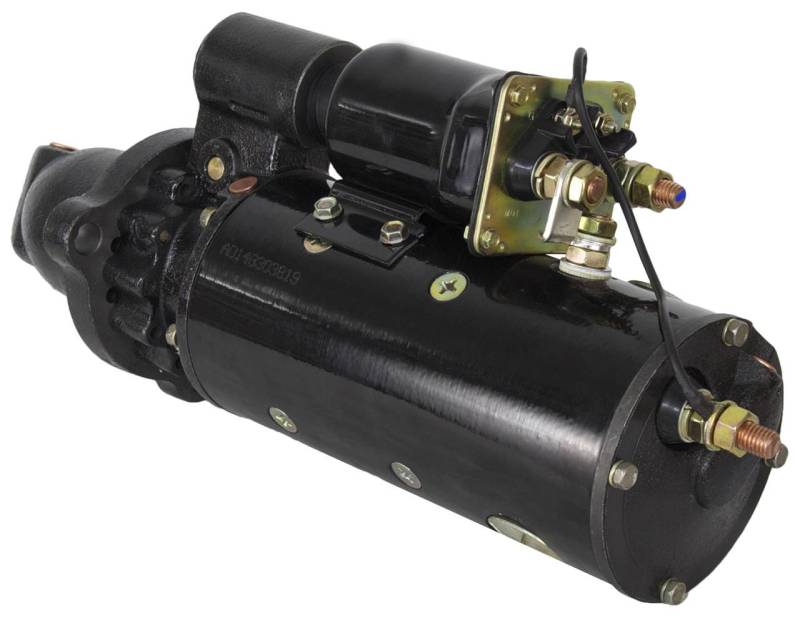

24V Starter Motor Compatible With 1972-1984 Caterpillar 225 235 Excavators 120G 12G 14G Graders Cat

OEM PART NUMBERS:
• Case: 690644C92
• Caterpillar: 25900, 2S0900, 2S900, 3A1872, 3A1872H, 3R7356
• Delco: 1114712, 1114729, 1114742, 1114777, 10461107, 10461242, 197127

SPECIFICATIONS:
• Series: Delco 40MT
• Type: DD (Direct Drive)
• Voltage: 24V
• Rotation: Clockwise (CW)
• Tooth Count: 12
• Gear OD: 1.831 in / 46.5mm
• Mounting Ear 1: 0.660" Unthreaded
• Mounting Ear 2: 0.660" Unthreaded
• Mounting Ear 3: 0.660" Unthreaded
• Weight: 66.031 lbs / 30.01 kg
• Condition: New

APPLICATION:
• Cat Excavators 215/215B/225/235 (1972-1984)
• Cat Graders 120G/12G/130G/140G/14G (1967-1983)
• Cat Forestry Loader FB227 (1983-1984)
• Cat 3208, 3304, 3306, and 3406 Engines

24V Starter - Cat Excavators and Graders
Brand new Delco 40MT series 24 volt starter motor for Caterpillar excavators, graders, and forestry loaders with Cat 3208, 3304, 3306, and 3406 engines. Direct drive with CW rotation, 12-tooth pinion (46.5mm OD), three 0.660" unthreaded mounting ears. 66.031 lbs. Replaces Delco 1114712, 1114729, 1114742, 1114777, 10461107, 10461242, 197127, Cat 25900, 2S0900, 2S900, 3A1872, 3A1872H, 3R7356, Case 690644C92.
