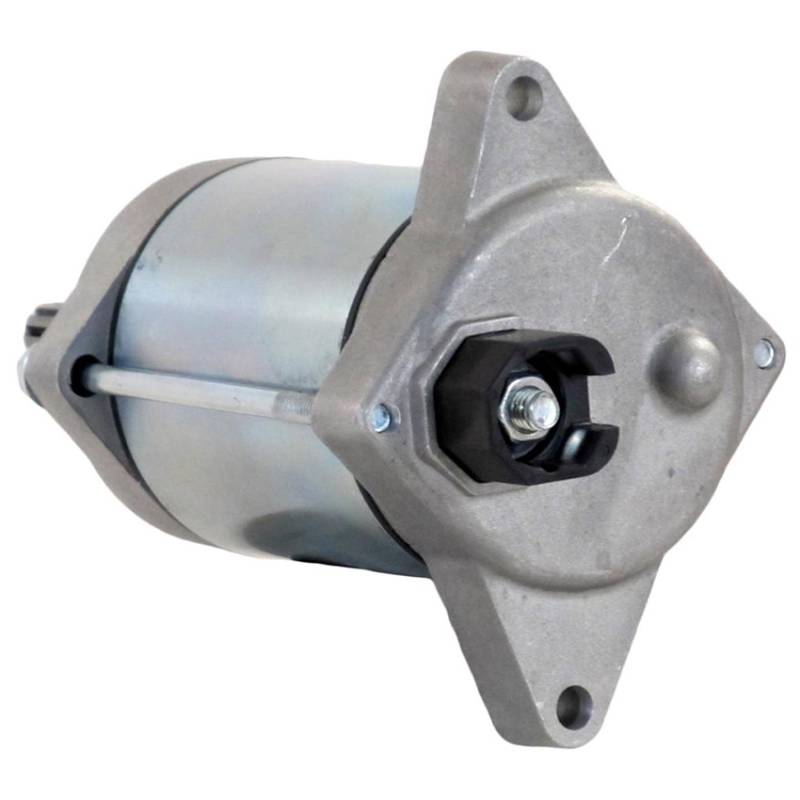

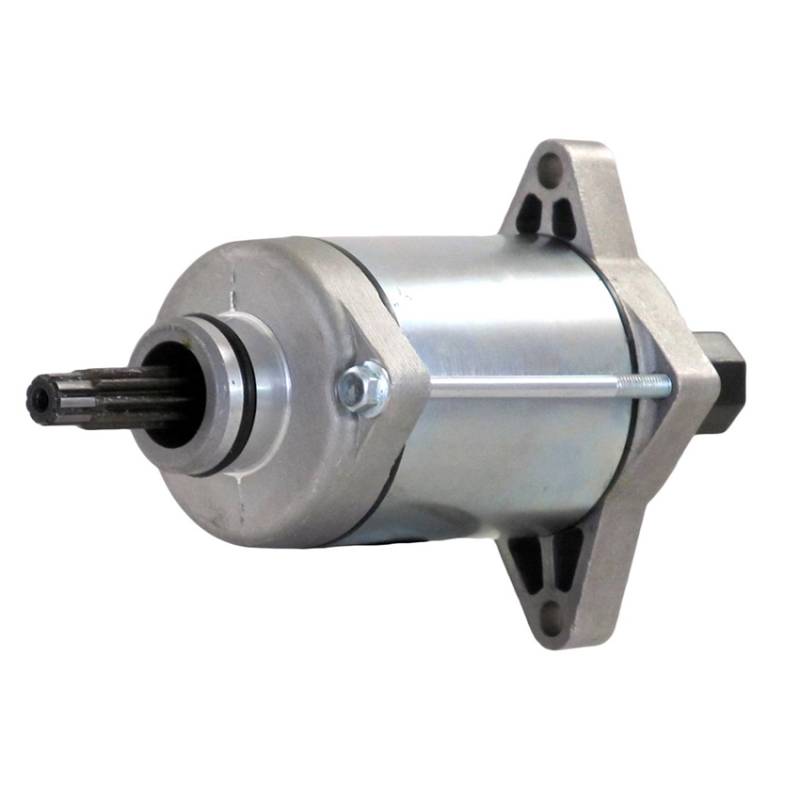

New Starter Motor for Honda ATV/UTV - 12V PMDD Starter for Honda FourTrax Rancher 420, Foreman 500, and Pioneer 500 applications. Direct OEM replacement with high torque output.
SPECIFICATIONS:
- Voltage: 12V
- Starter Type: PMDD (Permanent Magnet Direct Drive)
- Rotation: Counterclockwise (CCW)
- Tooth Count: 9
- Gear O.D.: 0.461 in (11.7mm)
- Gear Length: 1.27 in (32.4mm)
- Mounting Ear Holes: 6.3mm & 7.5mm Unthreaded
- Mounting Hole Distance: 3.5 in (89mm)
- Dimensions: 6.5 in x 2.8 in x 2.4 in (166mm x 70mm x 61mm)
- Weight: 4 lbs (1.81 kg)
HONDA OEM PART NUMBERS:
31200-HP5-601, 31200HP5601, 31200HP5-601, 31200-HR0-F01, 31200HR0F01, 06311-HL1-305, 31200-HL1-A01, 31200-HR6-B01
AFTERMARKET PART NUMBERS:
Mitsuba: SM18
Arrowhead: SMU0418
J&N: 410-54135
Lester: 18921, 18921N
Tucker Rocky: 495797, 49-5797
Parts Unlimited: 26-1349
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
