Piston Kit 0.5Mm Over 84.50Mm Compatible With Yamaha Gp 760 Wave Blaster 760 Wave Raider Xl 760 84Mm

OEM PART NUMBERS:
• Yamaha: 64X-11631-00-91 / 64X116310091
• Yamaha: 65U-11631-00-00 / 65U116310000
• Yamaha: 65U-11631-00-89 / 65U116310089
• Yamaha: 65U-11631-01-89 / 65U116310189
• Yamaha: 65U-11631-02-90 / 65U116310290
• Yamaha: 65U-11631-01-90 / 65U116310190

SPECIFICATIONS:
• Product Type: Piston Kit
• Bore Size: 84.50mm (0.5mm Over Standard 84.00mm)
• Piston: Cast OEM Spec
• Cross-Platform: Fits 760cc Twin AND 1200cc Triple (same 84mm bore)
• 760: ~754cc 2-Cyl Twin, 84mm x 68mm
• 1200: ~1180cc 3-Cyl Triple, 84mm x 71mm (Non-PV)

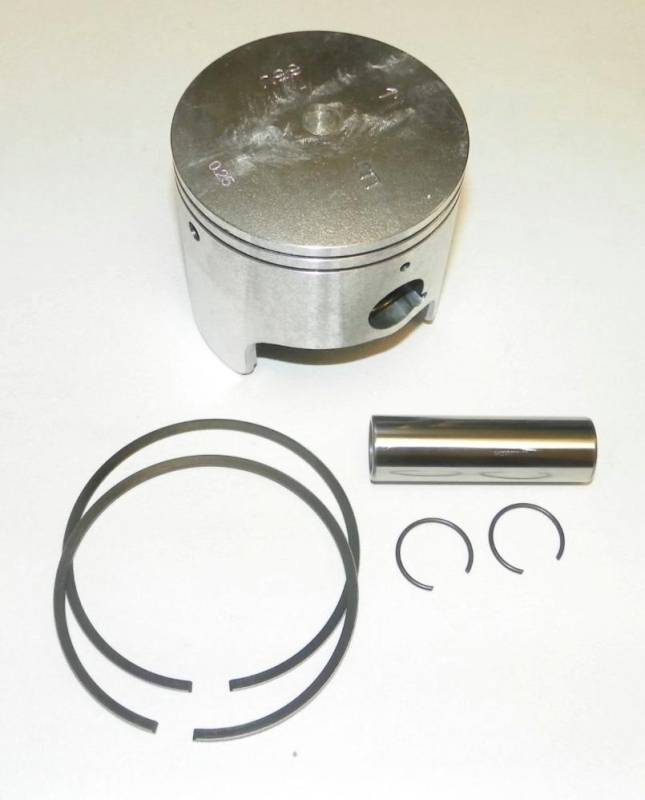

• Kit Includes: Piston, Ring Set, Wrist Pin, Circlips (2 for 760 twin, 3 for 1200 triple)
• Clearance: .004-.0045" • Weight: 2 lbs

APPLICATIONS:
• 760: GP/Wave Blaster/Raider/Runner/Venture/XL 760 (1996-2000)
• 1200: GP 1200/SUV 1200/Exciter/LS 2000/LX 210/AR 210 (1997-2005)
• Non-PV models only
