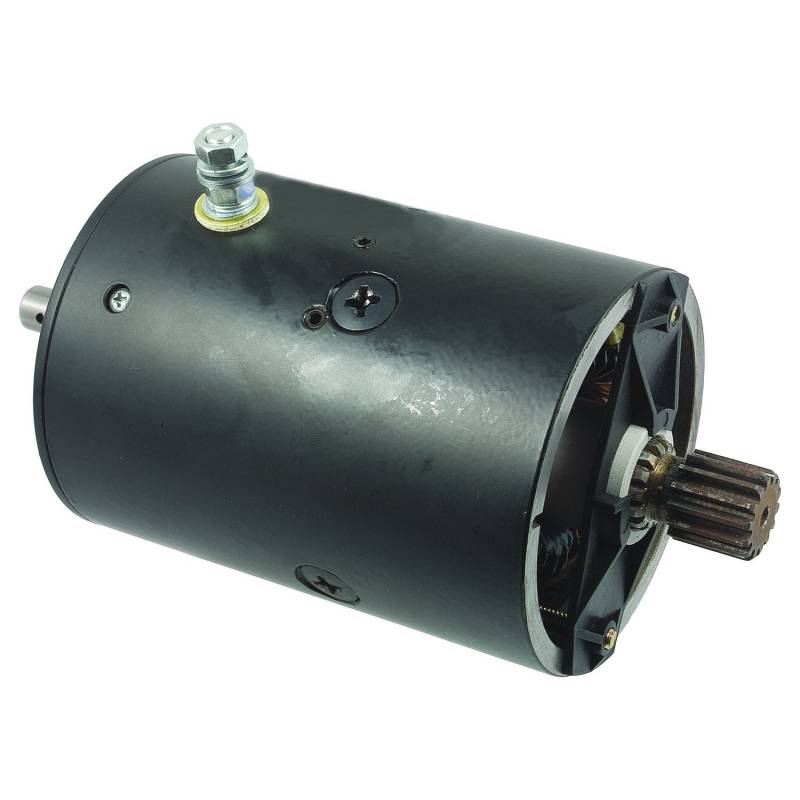

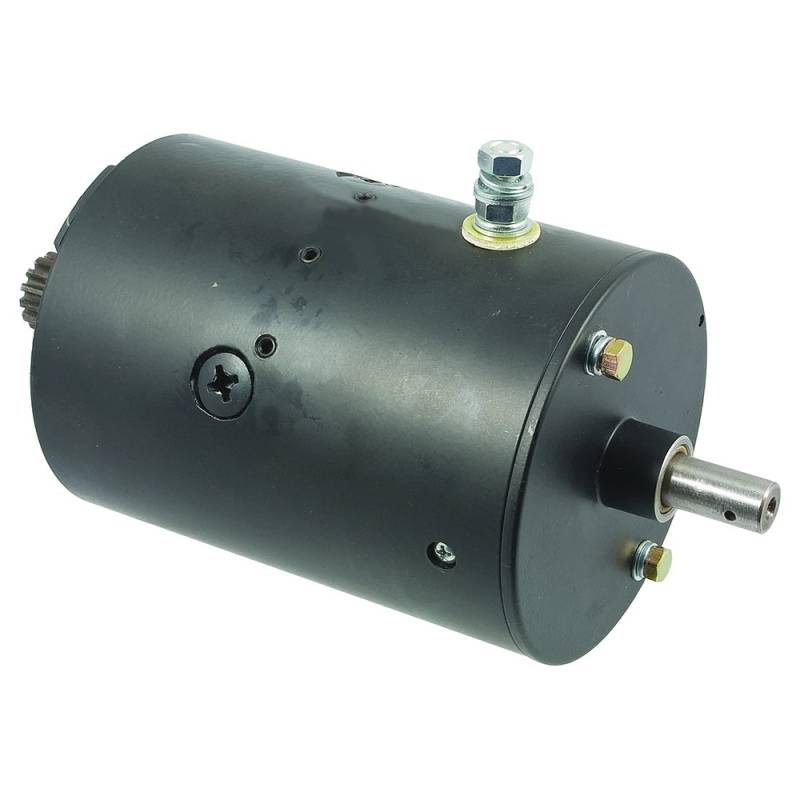

12V Electric Winch Motor Compatible With Warn Early Bellview Winch Ccw 14-Tooth Gear Heavy Duty

10732*3

OEM PART NUMBERS:
• 46-3650 / 463650 / 160-801 / 160801
• MHT6101 / MHT6101S / MHT7001 / MHT7101 / MHT7101S
• MHT-6101 / MHT-6101S / MHT-7001 / MHT-7101 / MHT-7101S
• Western Motor: W-8703 / W8703

SPECIFICATIONS:
• Type: Electric Winch Motor — 12V DC — CCW
• 1-Post / Heavy Duty 4-Coil Field (Upgrade from OE 2-Coil)
• 14-Tooth Gear / Slotted Shaft / 15mm Shaft OD
• Terminal: 5/16-24 / Thru Bolts: 5:00 and 11:00
• Field OD: 114.3mm (4.500") / Length: 183.8mm (7.236")
• Weight: 18 lbs / Steel CE Plate Included
• Condition: New

WINCH APPLICATIONS:
• Bellview Winch / Warn Winch (Early Models)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $608.27
Sale: $347.58
Save: 43%
Save: $260.69
Qty:
Free Shipping!

Description


WINCH APPLICATIONS:
• Bellview Winch
• Warn Winch (Early Models)

MOTOR SPECIFICATIONS:
• Type: Electric Winch Motor
• Voltage: 12V DC
• Rotation: Counter-Clockwise (CCW)
• Post: 1-Post
• Field: Heavy Duty 4-Coil (OE was 2-Coil — this is an upgrade)
• Drive End: 14-Tooth Gear on Shaft
• CE Shaft: Hole for Roll Pin
• Shaft OD: 15mm / Slotted Shaft
• Terminal: 5/16-24
• Field Housing OD: 114.3mm / 4.500"
• Overall Length: 183.8mm / 7.236"
• Thru Bolts: 5:00 and 11:00 Position
• Weight: 18 lbs
• Condition: New

NOTES:
• OE came as 2-coil field unit — replacement is heavy duty 4-coil field motor (upgrade)
• Shipped with steel CE plate with center hole for shaft
• Must use with original CE brake assembly if needed
• Verify OEM part number from original unit before ordering
