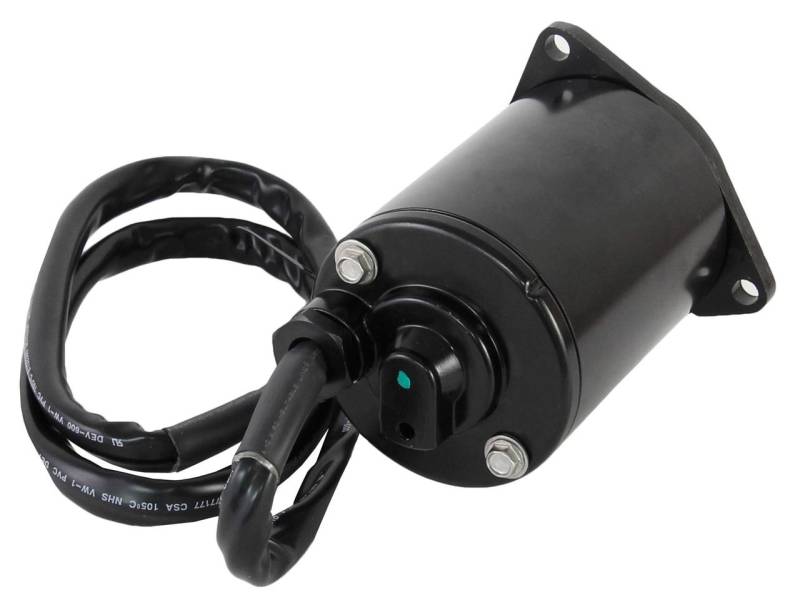

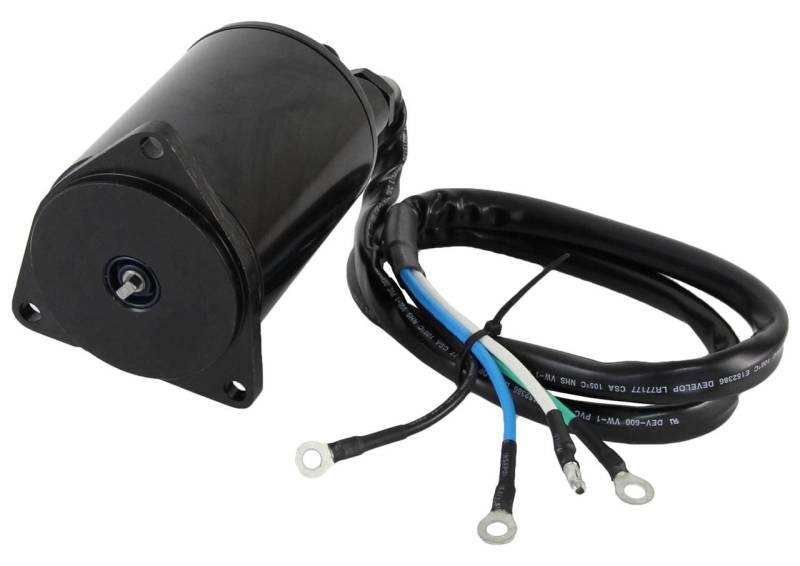

Tilt Trim Motor Compatible With Yamaha 250Etx 250Tur 250Txr L250etx L250txr 225Txr V6 2-Stroke

OEM PART NUMBERS:
• Yamaha: 61A-43880-02 / 61A4388002
• Yamaha: 61A-43880-02-00 / 61A438800200
• Yamaha: 61A-43880-01 / 61A4388001
• Yamaha: 61A-43880-01-00 / 61A438800100
• Yamaha: 61A-43880-00 / 61A4388000
• Yamaha: 61A-43880-00-00
• Quicksilver: 8M6007576



AFTERMARKET CROSS REFERENCE:
• API Marine: PT603NM-3
• 18-6782
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 4-Wire Configuration
• Terminals: Ring Terminal Ends
• Mounting: 3-Bolt Mount
• Shaft OD: 8mm / 0.315in
• Shaft Type: Slotted
• Field Housing OD: 91mm / 3.583in
• Overall Length: 126.2mm / 4.969in
• Weight: 4.5 lbs / 2.05 kg
• Condition: New

YAMAHA APPLICATIONS (1990-1996):
• 225HP: 225TUR/TXR, L225TUR/TXR, S225TUR/TXR (1994-1996)
• 250HP: 250ETX/TUR/TXR, L250ETX/TUR/TXR, S250TUR/TXR (1990-1996)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
