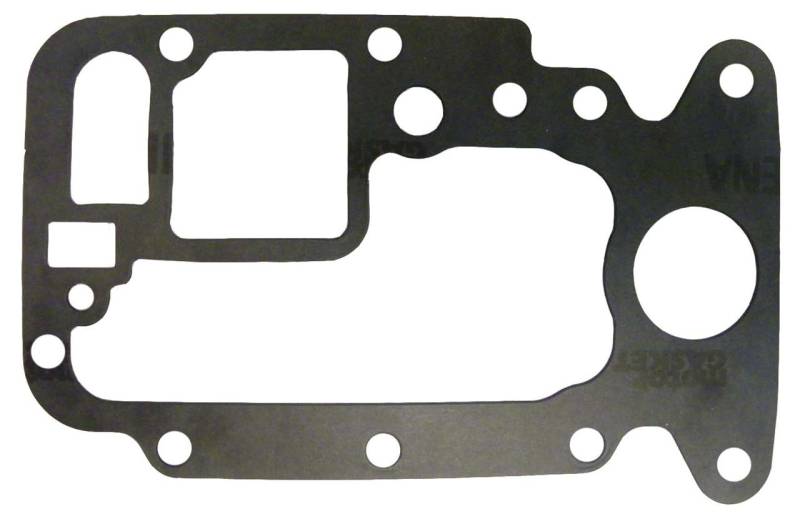

Outboard Base Gasket Compatible With Chrysler Force 40Hp 2 Cylinder 1992-1995 Replaces 27-82687-1

510-53
OEM PART NUMBERS:
• 27-82687-1 - Chrysler / Force / Mercury Marine OEM
• 27-826871 - Alternate format (no second dash)
• 27826871 - Alternate format (no dashes)

SPECIFICATIONS:
• Part Type: Powerhead Base Gasket
• Material: Non-Asbestos Composite
• Cylinder Bore: 3.375"
• Engine: 2-Cylinder 2-Stroke In-Line
• Application: Chrysler / Force 40HP Outboard
• Years: 1992, 1993, 1994, 1995
• Bore: 3.375 Inches
• Stroke: 2.875 Inches
• Condition: New Aftermarket Replacement
• Direct OEM Fit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $42.16
Sale: $24.09
Save: 43%
Save: $18.07
Qty:
Free Shipping!

Description

CHRYSLER / FORCE OUTBOARD MOTOR APPLICATIONS:

Force 40HP 2-Cylinder Outboard (1992-1994) - Bottom-Guided Block:
• 1992 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1993 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1994 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

Force 40HP 2-Cylinder Outboard (1995) - Cross-Flow Block:
• 1995 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

ENGINE SPECIFICATIONS:
• Configuration: 2-Cylinder In-Line
• Bore: 3.375 Inches (85.725mm)
• Stroke: 2.875 Inches (73.025mm)
• Cycle: 2-Stroke Loop Charged
• Fuel: Carbureted - Pre-Mix or Oil Injection
• Ignition: CDI Electronic Ignition
• Cooling: Water Cooled (Raw Water)
• Starting: Electric Start or Manual Pull Start
• Propeller: 14 Tooth / Pin Drive

NOTES:
• Force Outboard motors were manufactured by Chrysler Marine (later US Marine), then acquired by Mercury Marine
• 1992-1994 models feature bottom-guided piston design
• 1995 model transitioned to cross-flow design
• Both bottom-guided and cross-flow 40HP models use 3.375" bore
• Forging number 335016-3 or 600-818052 indicates bottom-guided block
• Forging number 640-96120 indicates top-guided block
• Verify block forging number and OEM gasket part number before ordering
