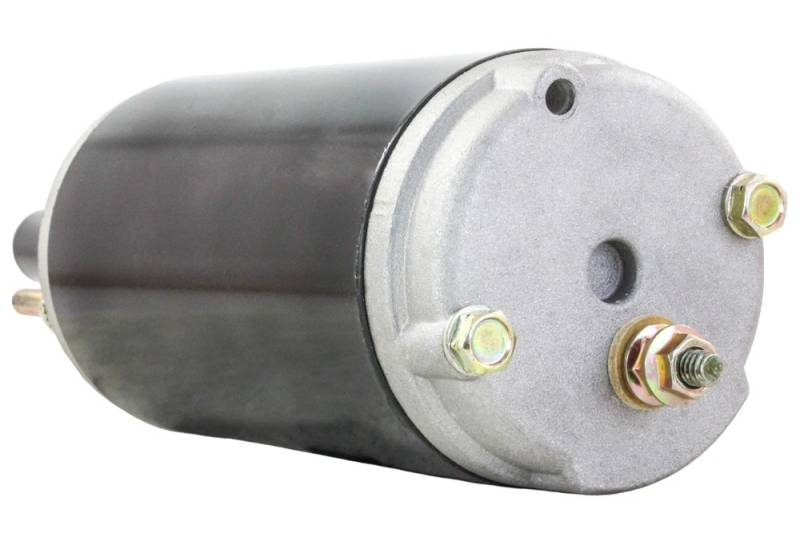

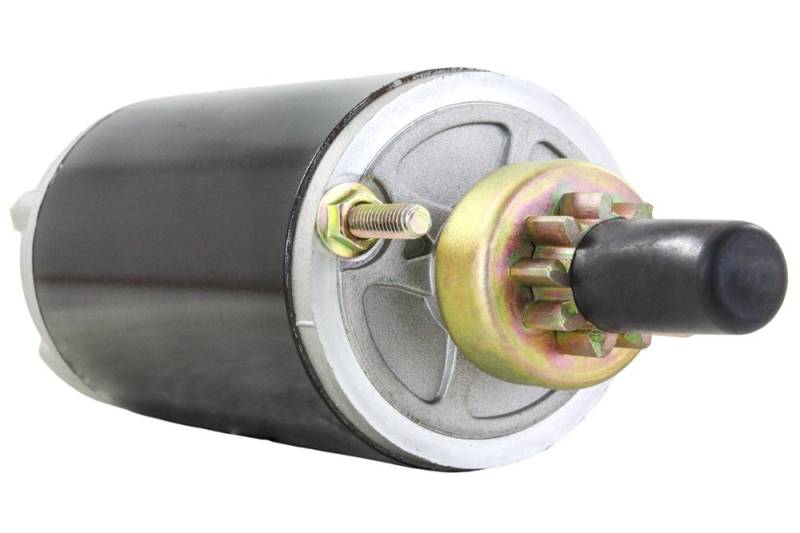

Starter Motor Compatible With Cub Cadet 2072 2082 Kohler M20 20Hp Toro Groundsmaster 117 718-Z 720-Z

OEM PART NUMBERS:
• Kohler: 52-098-06 / 5209806
• Kohler: 52-098-10 / 5209810
• Kohler: 52-098-13 / 5209813
• Kohler: 52-098-13-S / 5209813S
• Kohler: 52-170-03-S / 5217003S
• Gravely: 049247 / 04247
• Gravely: 038033, 20643800
• United Technologies: 2134940-M030SM / 2134940MO30SM
• United Technologies: 5213240-M030SM / 5213240MO30SM / SM52132
• United Technologies: 5666440-M030SM / 5666440MO30SM / SM56664

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Counterclockwise (CCW)
• Tooth Count: 9
• Gear OD: 29.2mm / 1.150in
• Field Housing Length: 122mm / 4.82in
• Thru Bolts: 1/4-20 (extend 25.8mm out front of drive cap)
• Terminal: Battery Stud on Back of CE Cap
• Weight: 6.965 lbs / 3.17 kg
• Condition: New

APPLICATIONS SUMMARY:
• Cub Cadet 2072 (1987-1989), 2082 (1992-2000)
• Toro Groundsmaster 117 (1985-1990), 718-Z (1986-1987), 720-Z (1987)
• Kohler KT17, KT19, KT21, M18, M20, MV20 Twin-Cylinder 17-21HP

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
