OEM PART NUMBERS:
• Nippondenso: 101211-8390 / 1012118390
• Nippondenso: 101211-8391 / 1012118391
• 8600127
• Paccar / Kenworth / Peterbilt: D27-6001-0130P / D27-6001-130P / D2760010130P / D276001130P / D276001010P
• Cross Reference: 90-29-5587 / A-80137
• Cross Reference: 14967AA / 290-297 / 290-297N
SPECIFICATIONS:

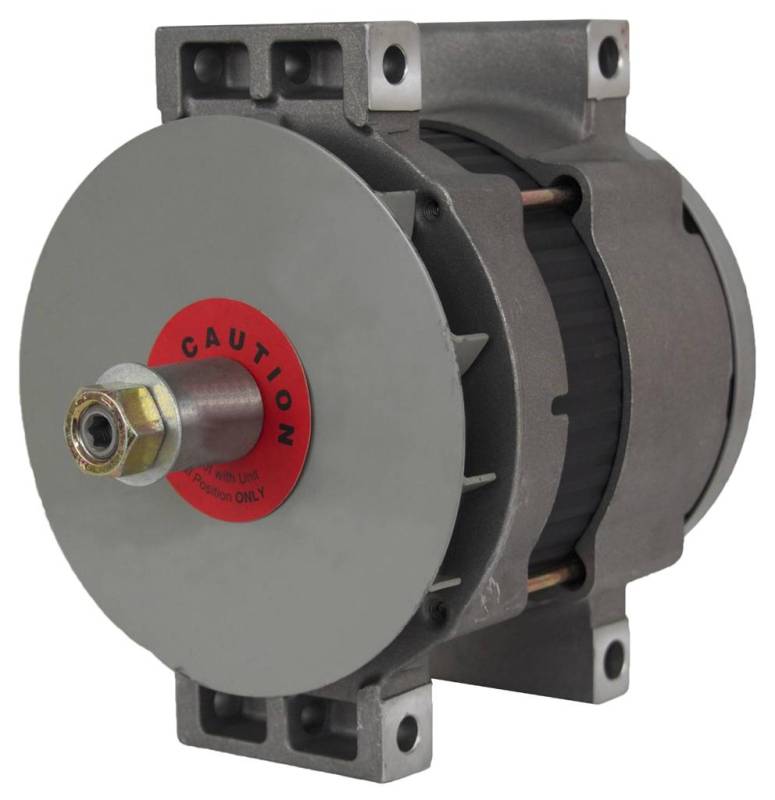

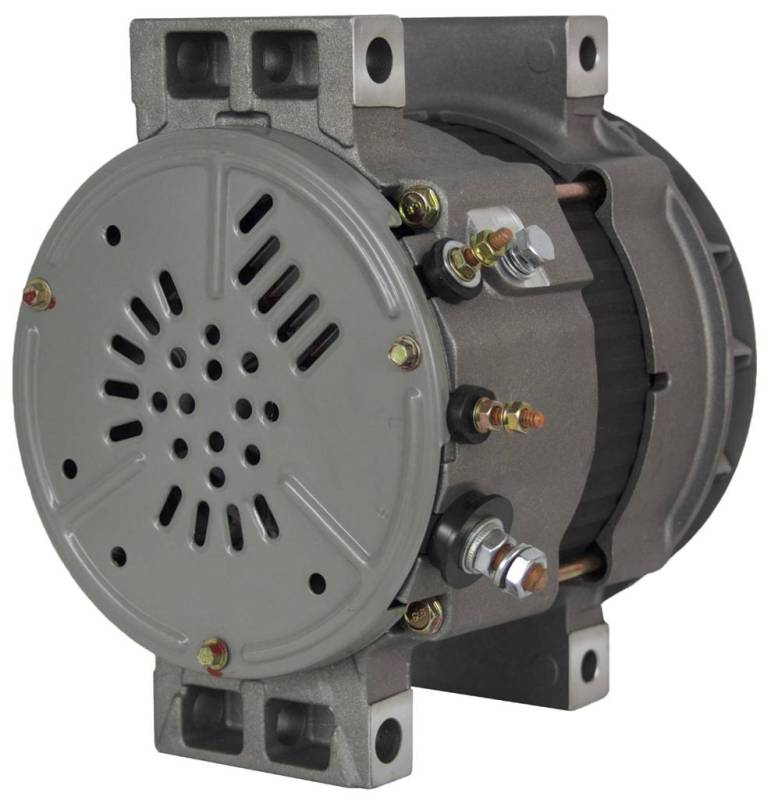

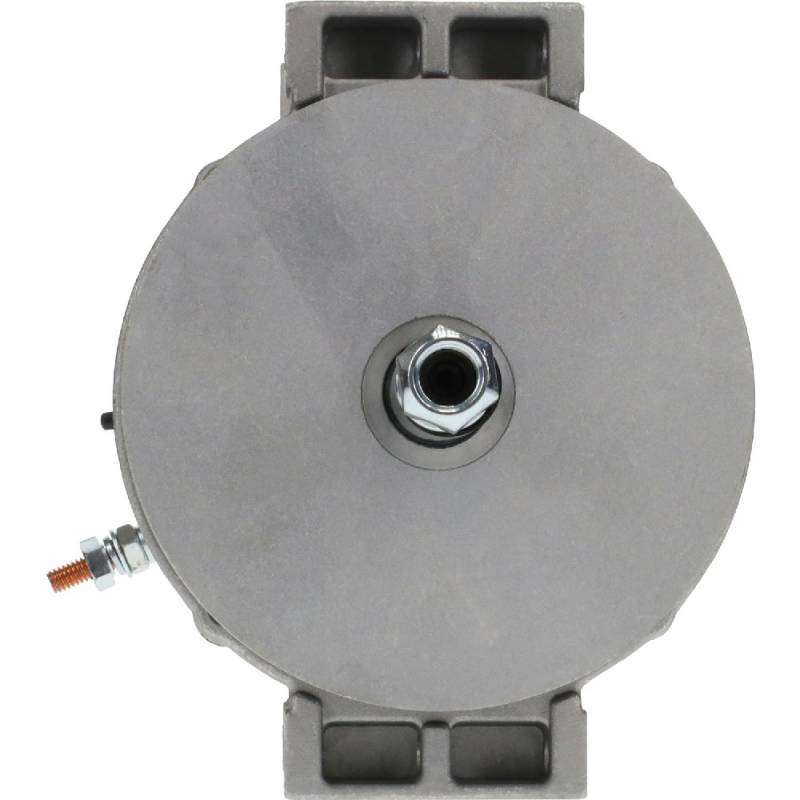

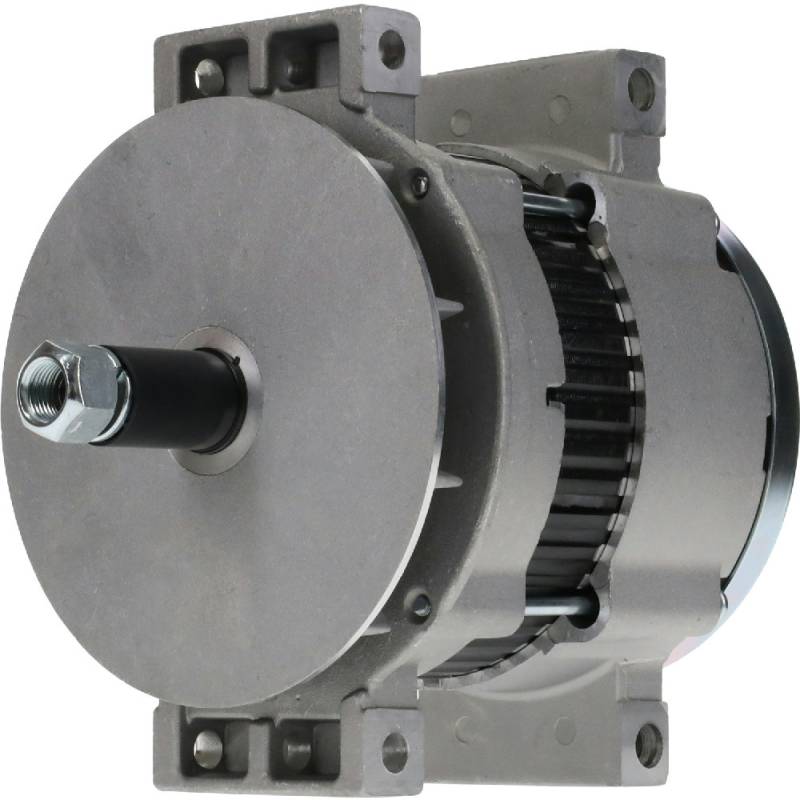

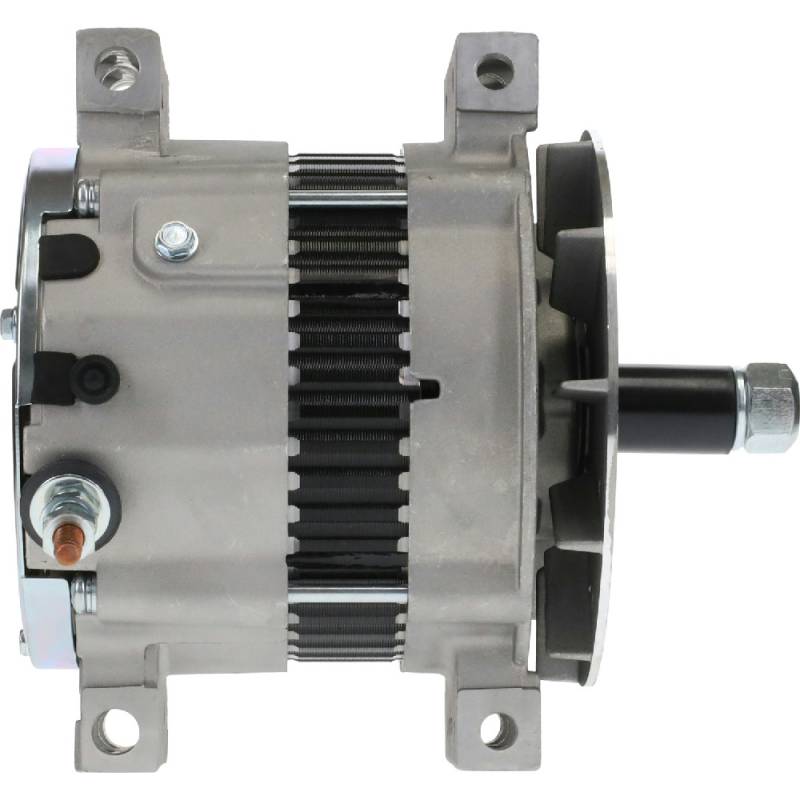

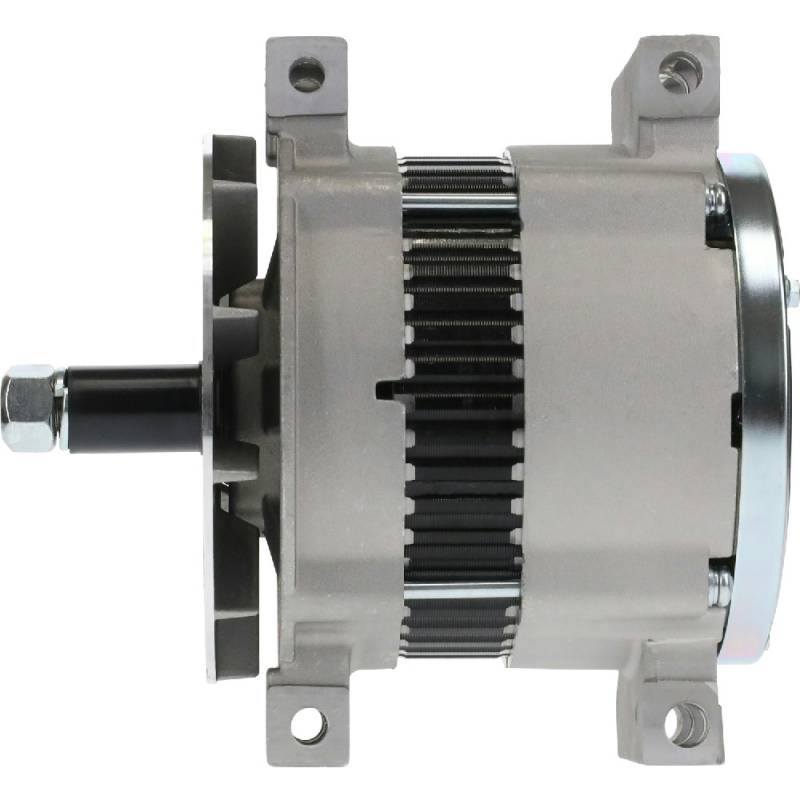

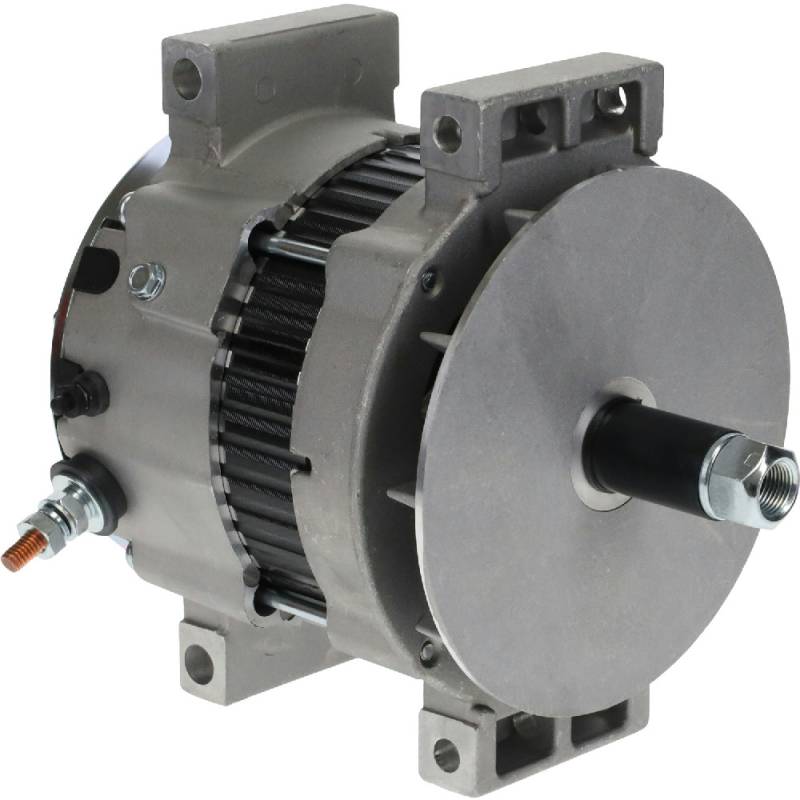

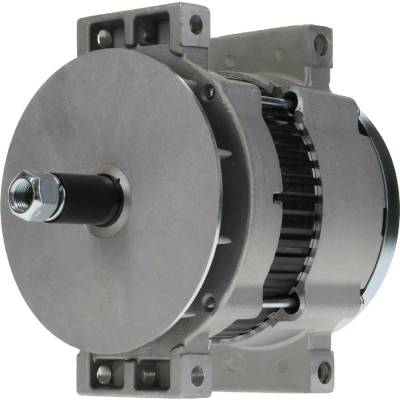

• Type: Alternator (Brushless)
• Voltage: 12V
• Amperage: 130A
• Rotation: CW (Clockwise)
• Clock Position: 3 O'Clock
• Fan: External
• Regulator: Internal
• Mount Type: Pad
• Pad Span Length: 4.25in / 107.95mm
• B+ Terminal: 5/16-18 Threaded
• R-Terminal: Pin
• No I-Terminal
• Shaft OD (Pulley): 0.875in / 22.22mm
• Mounting Ears: 4x (10.4mm / 12.7mm Unthreaded)
• Polarity: Negative
• Weight: 22-23.5 lbs / 10-10.68 kg
• Condition: New
KENWORTH / PETERBILT APPLICATIONS:
• Kenworth C500 / T2000 / T600 / T660 / T800 / W900 (1999-2013)
• Peterbilt 220 / 320 / 330 / 340 / 357 / 365-389 (2000-2013)
MACK / STERLING / WESTERN STAR APPLICATIONS:
• Mack CH / CL / CT / CTP / CV Series (2001-2008)
• Sterling A9500 / AT9500 / Condor / L9500 (2002-2008)
• Western Star 4900 Series (2002-2008)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
