OEM PART NUMBERS:
• Canimex: 120Z402H / 120Z402H1 / 120Z402H2 / W4BB1601
• Leeson: 108046 / 108047 / C4D17NK10B / C4D17NK68
• Leeson: C4D17NK6B / C4D17NK73 / C4D17NK7E
• Scott Motors: 4BB-01601 / 4BB-1601
• Pacific Scientific: BA-3630-700066 / BA-3630-70066056
• Pacific Scientific: BA-3630-700660 / BA-3630-7006
• Western Motors: W4BB-1601
SPECIFICATIONS:

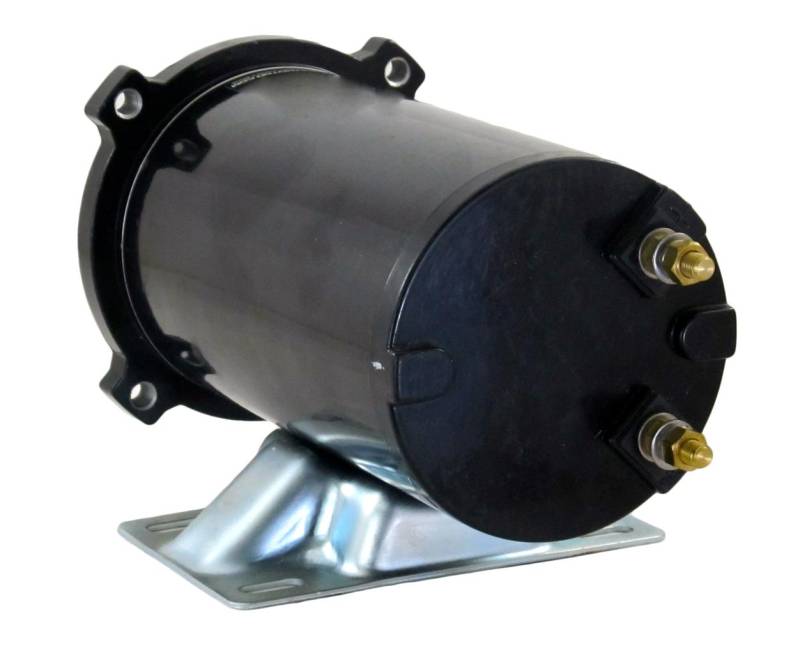

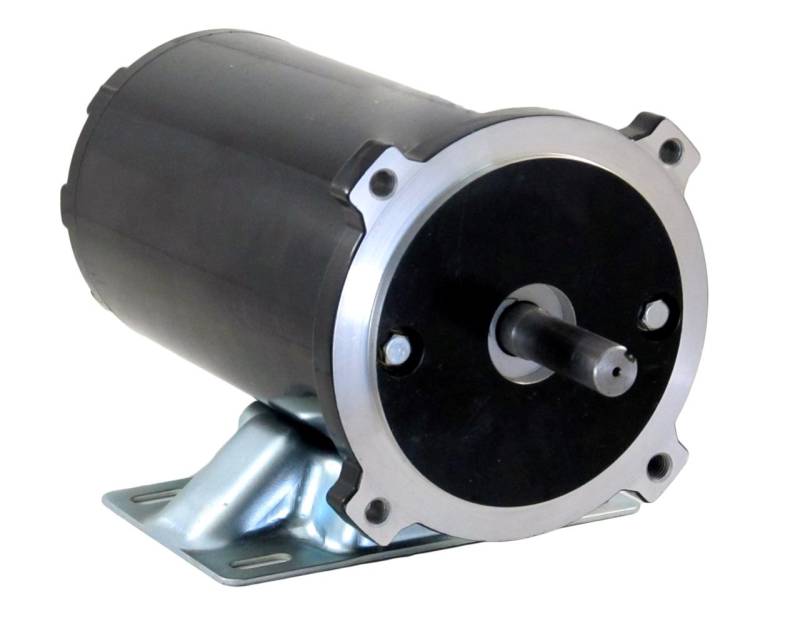

• Product Type: 12V DC Electric Motor
• Power: 1/2 HP / 1800 RPM
• Rotation: Bi-Rotational (Reversible)
• Field Housing OD: 4.5" (114.3mm)
• Field Housing Length: 192mm
• Overall Length: 12.00" (305mm)
• Mounting Bracket Distance: 210mm
• Shaft Diameter: 5/8" Keyed (Keyway)
• Shaft Length: 50mm
• Terminal 1: 5/16-24 Threaded
• Terminal 2: 5/16-24 Threaded
• Housing: Cast Aluminum, Black Powder Coat
• End Covers: Cast Aluminum
• Weight: 17.6 lbs (7.98 kg)
• Condition: New
APPLICATIONS:
• Salt Spreaders / Snow-Ex SP7500-SP9500 / Canimex
• Winches / Pot Pullers / Marine Deck Equipment
• Floor Care / Traction Drive / Mobility / Custom
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
