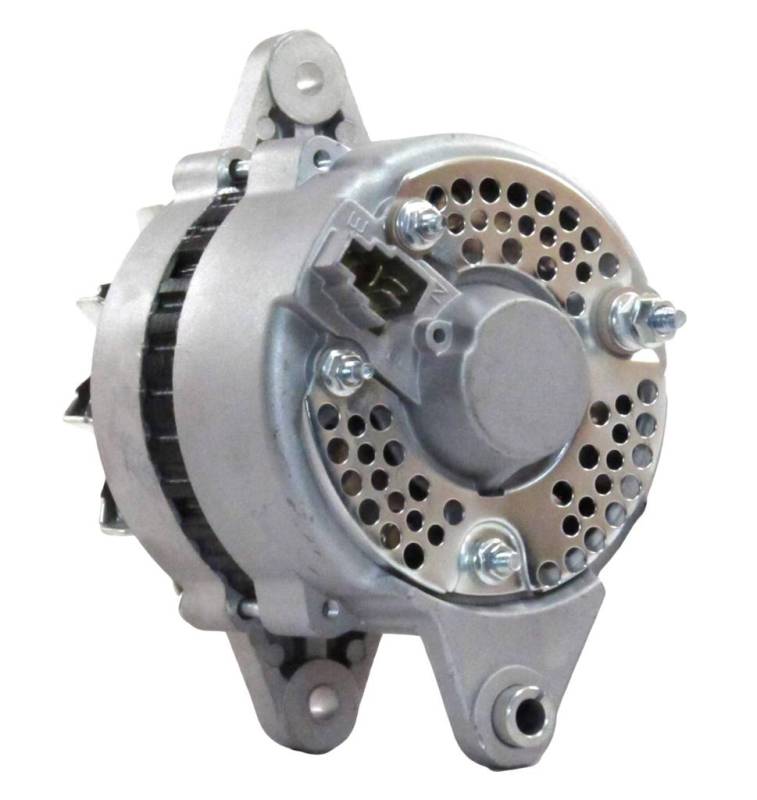

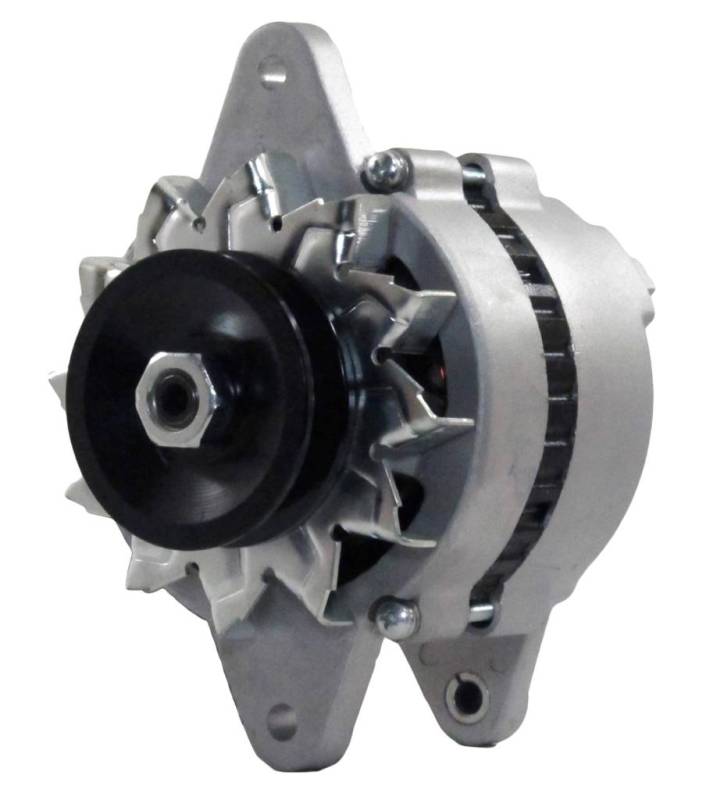

Alternator 12V 35 Amp Compatible With Kubota Compact Tractor L2850dt L3250dt L3350hdt L3750hdt

12068A1
OEM PART NUMBERS:

KUBOTA:
• 15763-64010
• 15763-64011
• 15763-64012
• 15321-64010 / 15321-64012
• 15411-64010 / 15411-64011
• 15471-64010 / 15471-64011
• 15606-64010 / 15606-64011

DENSO / NIPPONDENSO:
• 121000-0980
• 021000-5670
• 021000-6840
• 021000-8620
• 9712109-098 (Reman)

DELCO REMY:
• 10459521

GEHL:
• 121962

OTHER:
• 111195 (Cargo)
• 290-140A
• 90-29-5097
• 14510

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 35A
• Unit Type: Denso Style
• Fan: External
• Regulator: External
• Rotation: Clockwise (CW)
• Grooves: 1
• Polarity: Negative Ground
• Pulley OD: 2.953" / 75mm
• Terminals: 3 Terminal Plug
• Weight: 9.05 lbs / 4.11 kg

NOTE: Use voltage regulator 124384

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $175.98
Sale: $100.56
Save: 43%
Save: $75.42
Qty:
Free Shipping!

Description

ALTERNATOR - KUBOTA COMPACT TRACTOR & EQUIPMENT APPLICATIONS:

GEHL SKID STEERS:
• SL4625 w/Kubota V2203 Engine (1991)

KUBOTA EXCAVATORS:
• KH191 w/S2800D 59HP Diesel (1988)

KUBOTA MISC. EQUIPMENT:
• F2302 Engine (1983)
• V1702 Engine (1983)

KUBOTA COMPACT TRACTORS - L2850 SERIES:
• L2850DT w/V1702DIA 34HP Diesel (1985-1990)
• L2850DTGST w/V1702DIA 34HP Diesel (1985-1990)
• L2850F w/V1702DIA 34HP Diesel (1985-1990)
• L2850GST w/V1702DIA 34HP Diesel (1985-1990)

KUBOTA COMPACT TRACTORS - L3250 SERIES:
• L3250DT w/V1902DIA 40HP Diesel (1989-1990)
• L3250F w/V1902DIA 40HP Diesel (1989-1990)

KUBOTA COMPACT TRACTORS - L3350 SERIES:
• L3350HDT w/V1902DIA 40HP Diesel (1985-1990)
• L3350MDT w/V1902DIA 40HP Diesel (1985-1990)

KUBOTA COMPACT TRACTORS - L3750 SERIES:
• L3750HDT w/F2302DIL 45HP Diesel (1984-1990)
• L3750HF w/F2302DIL 45HP Diesel (1984-1990)
• L3750MDT w/F2302DIL 45HP Diesel (1984-1990)
• L3750MF w/F2302DIL 45HP Diesel (1984-1990)

KUBOTA COMPACT TRACTORS - L4150 SERIES:
• L4150DTN w/F2302DI 50HP Diesel (1988-1990)
• L4150F w/F2302DI 50HP Diesel (1990-1992)
• L4150HDT w/F2302DI 50HP Diesel (1984-1990)
