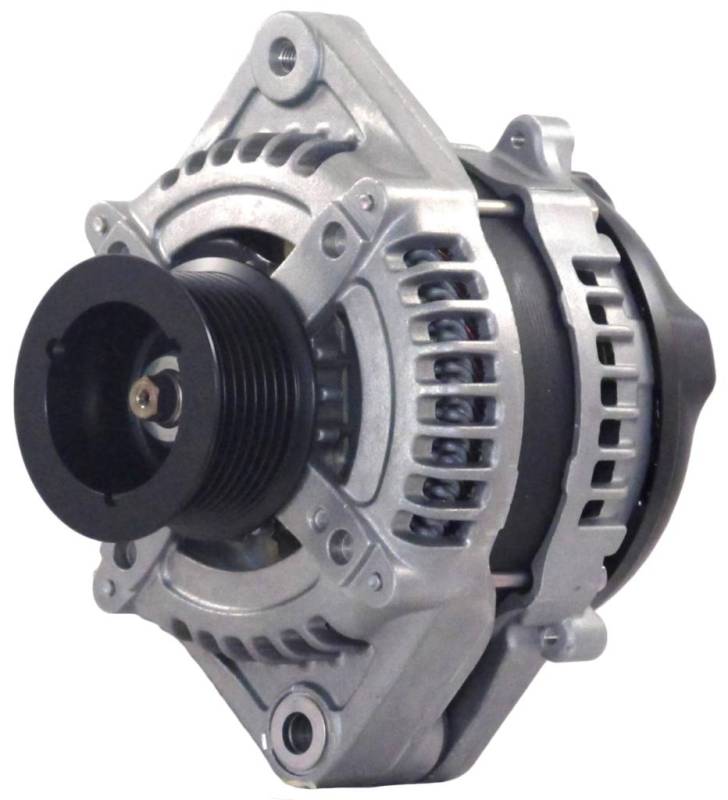

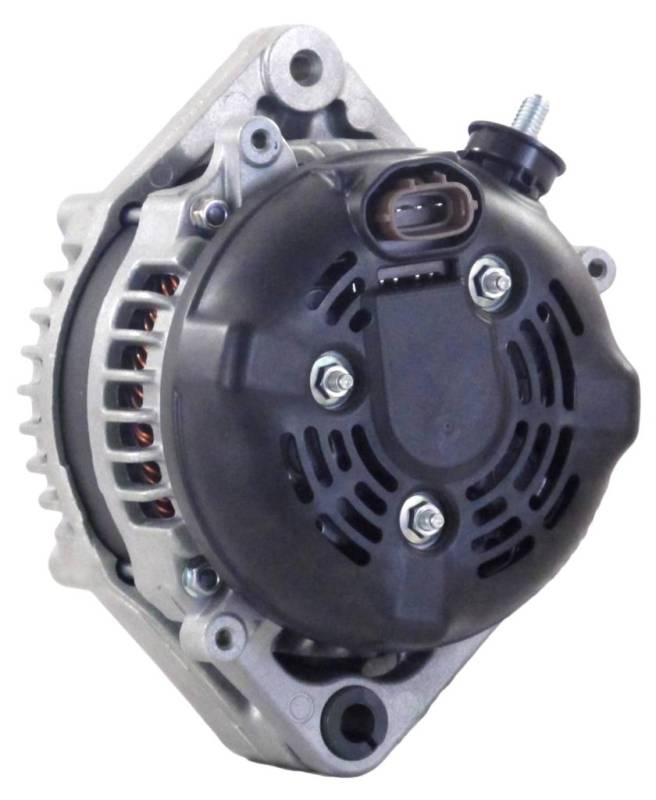

Alternator Compatible With John Deere Tractor 9220 9320 9320T 9420 9620T 104210-3921 1042103921

12660*1
JOHN DEERE PART NUMBERS:
• RE257541
• RE186320
• SE501837

DENSO PART NUMBERS:
• 104210-3920, 1042103920
• 104210-3921, 1042103921
• 021080-0140, 0210800140

LUCAS PART NUMBERS:
• LEA1070

SPECIFICATIONS:
• Voltage: 12V
• Output: 150 amp
• Rotation: CW (clockwise)
• Ground: negative
• Regulator: internal
• Type: SC hairpin type
• Fan: internal (hairpin stator)
• Pulley: 8 groove serpentine, 70 mm OD
• Regulator / plug position: 11:30
• B+ terminal: M8 x 1.25
• Ear 1: M8 x 1.25 threaded
• Ear 2: 10.2 mm unthreaded
• Weight: 13.95 lb
• Condition: New aftermarket, not a Denso or John Deere branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $486.69
Sale: $278.11
Save: 43%
Save: $208.58
Qty:
Free Shipping!

Description

JOHN DEERE 7000 SERIES TRACTORS:
• John Deere 7720 tractor, 6068HR 6.8L / 6081HR 8.1L, 2003-2007
• John Deere 7820 tractor, 6068HR 6.8L, 2003-2007
• John Deere 7920 tractor, 6081HR 8.1L, 2003-2007
• John Deere 7815 tractor, 6068HR 6.8L, 2005-2010

JOHN DEERE 9000 SERIES 4WD AND TRACK TRACTORS:
• John Deere 9120 4WD tractor, 2002-2007, from serial number 011283
• John Deere 9220, 9320, 9420, 9520 4WD tractors, 6125HR 12.5L, 2002-2007, from serial number 011175
• John Deere 9620 4WD tractor, 6125HR 12.5L
• John Deere 9320T, 9420T track tractors, 6125HR 12.5L, 2001-2007
• John Deere 9520T, 9620T track tractors, 6125HR 12.5L
• John Deere 9320T, 9420T, 9520T, 9620T from serial number 902186

JOHN DEERE SPRAYERS:
• John Deere 4720 self-propelled sprayer, 6068HN 6.8L, 2005-2014

SPECIFICATIONS:
• Voltage: 12V
• Output: 150 amp
• Rotation: CW (clockwise)
• Ground: negative
• Regulator: internal
• Type: SC hairpin type
• Fan: internal (hairpin stator)
• Pulley: 8 groove serpentine, 70 mm OD
• Regulator / plug position: 11:30
• B+ terminal: M8 x 1.25
• Ear 1: M8 x 1.25 threaded
• Ear 2: 10.2 mm unthreaded
• Weight: 13.95 lb
• Condition: New aftermarket, not a Denso or John Deere branded unit
