OEM PART NUMBERS:
• Komatsu: 3863240 / 600-863-4410 / 600-863-4510
• Komatsu: 600-863-4610 / 600-863-4611 / 600-832-3220
• Komatsu: 600-863-4110 / 600-863-4130
• Nikko: 0-24000-3060 / 0-24000-3061 / 0-24000-3071
• Nikko: 0-24000-3240 / 02-24-2029
• Denso: 228000-4990 / 228000-4991 / 228000-4992
• Denso: 9722809-499
SPECIFICATIONS:
• Voltage: 24V
• Power: 4.5kW / 6.03HP
• Rotation: CW (Clockwise)
• Type: OSGR (Offset Gear Reduction)
• Teeth: 10
• Gear OD: 1.531 Inch / 38.9mm
• Pinion OD: 1.512 Inch / 38.4mm
• Mounting: 11mm Unthreaded (Both Ears)
• Battery Stud: M10-1.5 Threaded
• Switch Terminal: M5-0.8 Set-Screw
• Weight: 20 lbs / 8.5 kg
• Note: Dry Clutch Only
• Condition: New
APPLICATION:
• Excavator PC60-7/PC75-UUE/PC100/PC120/PC128/PC130-6/PC138US/PC158US (S4D102E)
• Excavator PC200-6/PC200-7/PC210-6D/PC220-6/PC220-7/PC228UU-1 (S6D102E)
• Wheeled Excavator PW128E-1/PW128UUE-1 (4D102-E1)
• Dozer D37E/D41-E/D41A/D39E-21/D31P-20/D31E-20 (SD102/S4D102E/S6D102)
• Loader WA80E-3/WA100-3/WA120/WA180/WA200-3/WA250-3 (1997-2007)
• Forklift FD035/FD40ZT-7/CX20/DX20/EX50
• Generator EG125BS-2/EG90BS-1/EGS120 / Grader GD355A-3/GD405A-3
• Dry clutch applications only — not compatible with wet clutch

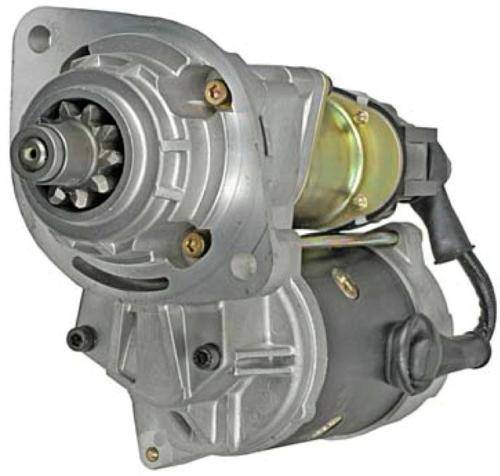

Heavy Duty Starter — Komatsu PC220-6 PC220-7 PC200-7 Dozer D37E D31P-20 SD102
Heavy duty 24V starter for Komatsu PC220-6, PC200-7, PC210-6D, and D37E/D31P-20 dozers. Replaces Nikko 0-24000-3071, 0-24000-3240, Komatsu 600-863-4510, 600-863-4611, and Denso 228000-4990. Also fits GD405A-3 grader and JV100/JV130 utility vehicles.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
