OEM PART NUMBERS:
• Mercury Marine: 14336A6
• Mercury Marine: 14336A8
• Mercury Marine: 14336A9
• Mercury Marine: 14336A12
• Mercury Marine: 14336A15
• Mercury Marine: 14336A17
• Mercury Marine: 14336A20
• Mercury Marine: 14336A25
• Mercury Marine: 14336A31
• Mercury Marine: 865380A03
• Mercury Marine: 865380A13
• Mercury Marine: 88183A5
• Mercury Marine: 88183A6
• Mercury Marine: 88183A8
• Mercury Marine: 88183A11
• Mercury Marine: 88183A12
• Mercury Marine: 88183A13
• Mercury Marine: 88183A25
SPECIFICATIONS:

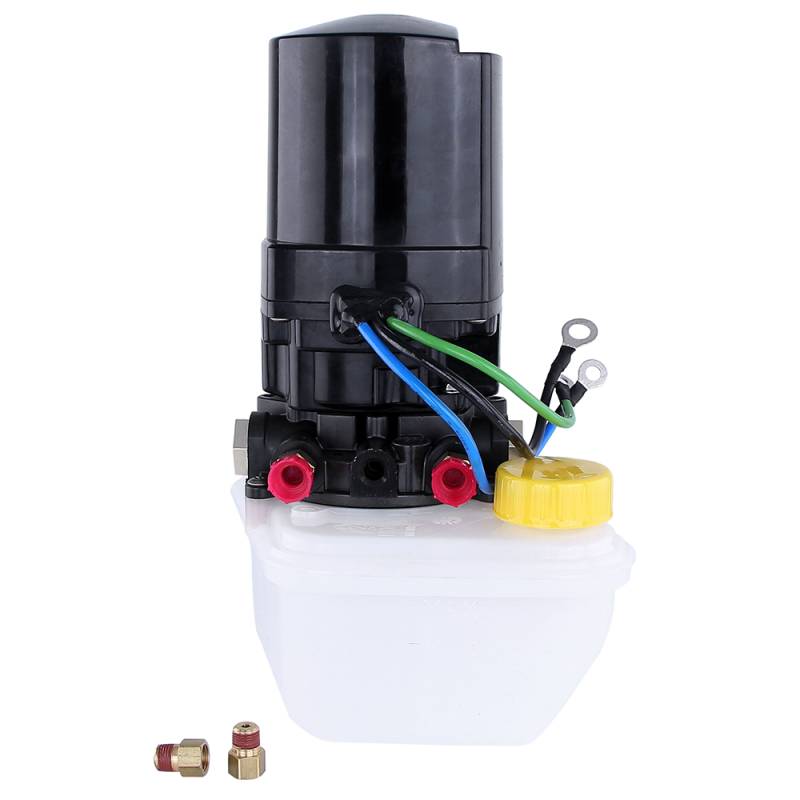

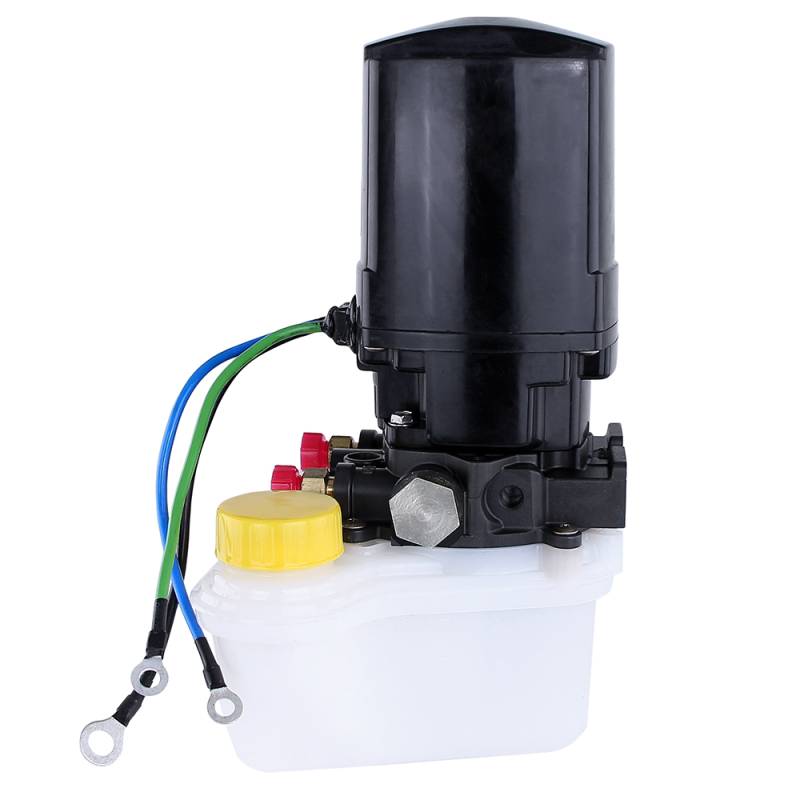

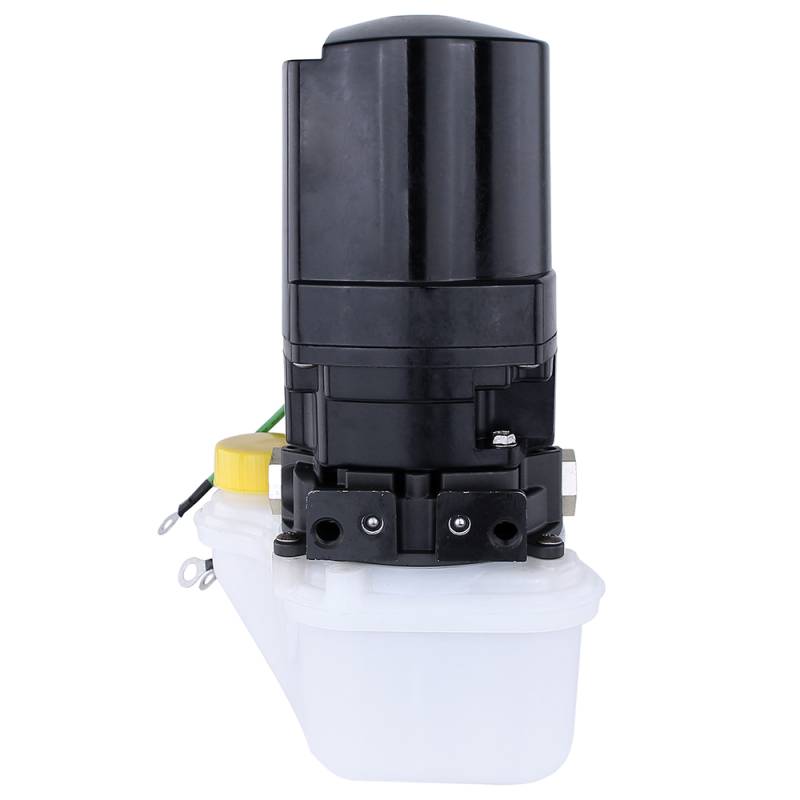

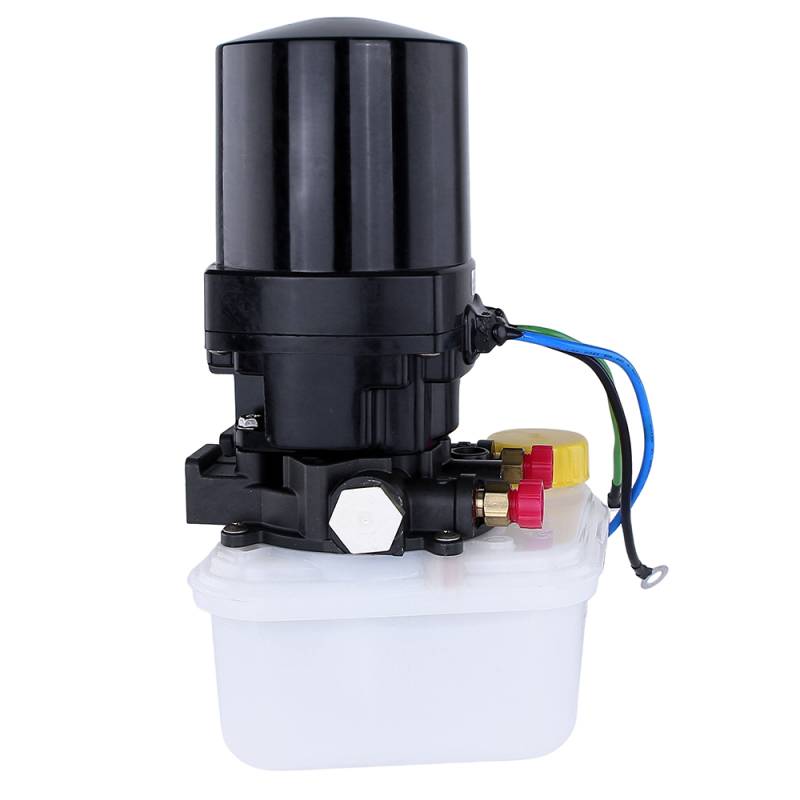

• Product Type: Tilt Trim Motor with Pump and Reservoir
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Shaft Type: Slotted Shaft (Male)
• Field Housing OD: 91.05mm / 3.585 inches
• Pump Style: Oildyne
• Connection: 3-Wire (Ring Terminal Ends)
• SAE J1171 Marine Ignition Protection Certified
• Weight: 10 lbs
• Condition: New
ASSEMBLY INCLUDES:
• Tilt Trim Motor
• Oildyne Style Pump
• Fluid Reservoir
APPLICATION:
• Mercury Outboard 30-200 HP (1974-1984)
• Mercury 3.4L V6 275 HP Outboard (1984-1987)
• MerCruiser MC1 Drives (1983-1987)
• MerCruiser Alpha One (1988-1991)
• MerCruiser Alpha One Gen II (Various)
• MerCruiser Bravo One/Two/Three and variants
• MerCruiser Blackhawk / SportMaster
• MerCruiser TR/TRS (1977-1993)
PRODUCT NOTICE:
