OEM PART NUMBERS:
• Hitachi: S114-407 / S114407
• Suzuki: 31100-95310 / 3110095310
• Suzuki: 31100-95312 / 3110095312
• Suzuki: 31100-95313 / 3110095313
• API Marine: MOT5006N
• Sierra Marine: 18-6414
• Arco Marine: 3440
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Pinion Gear OD: 29.3mm / 1.154"
• Mounting Holes: 2x M8-1.25 Threaded
• DE Housing: M8-1.25 Threaded Hole on Side
• CE Cap: Mounting Ear with 9.2mm Hole
• Weight: 5.82 lbs / 2.65 kg
• Condition: New
APPLICATION:
• Suzuki DT50ECL 48.7ci 50HP (1984)
• Suzuki DT60CL 48.7ci 60HP (1983-1984)
• Suzuki DT75TCL 73.0ci 75HP (1983-1987)
• Suzuki DT85EL 73.5ci 85HP (1980)
• Suzuki DT85TCL 73.0ci 85HP (1982-1987)
• Suzuki DT85TEL 73.5ci 85HP (1980)

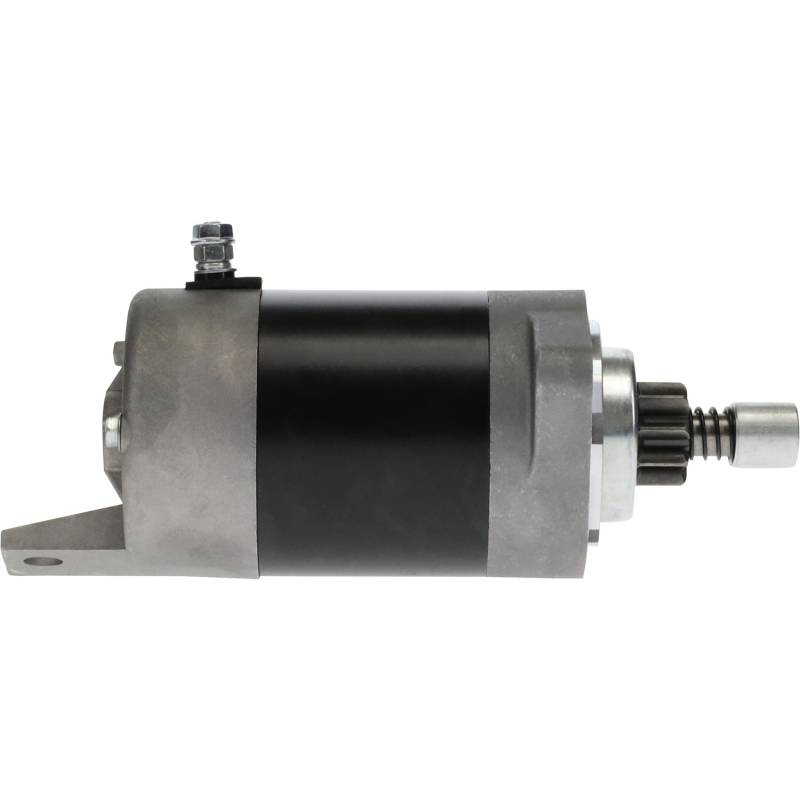

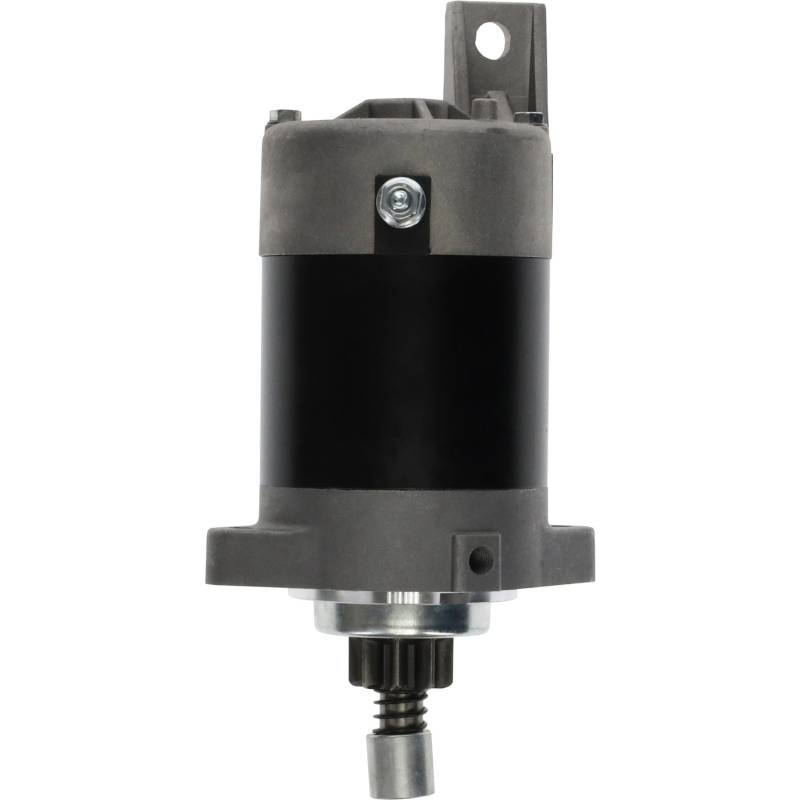

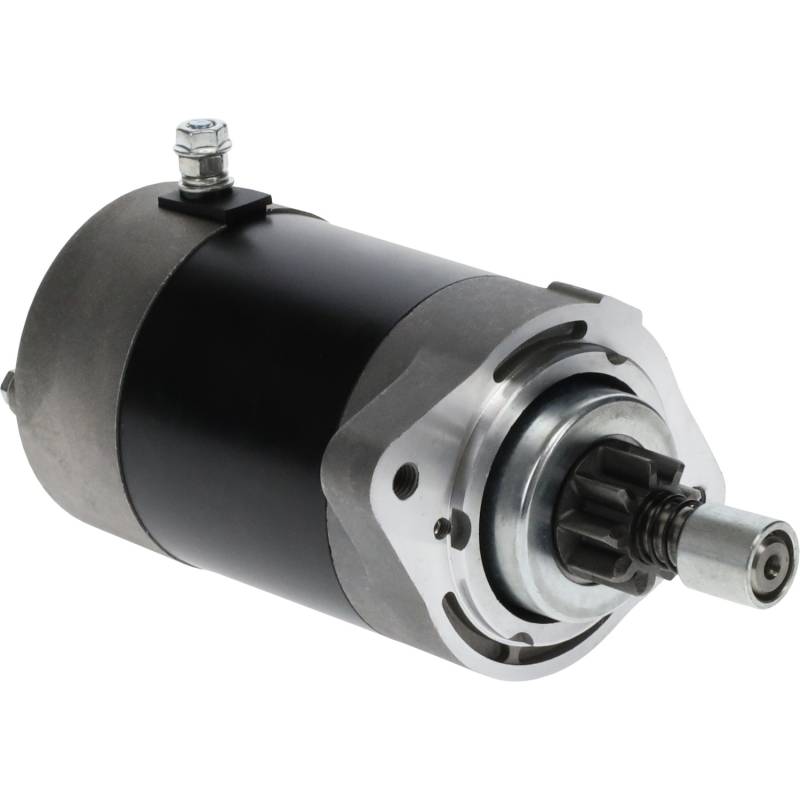

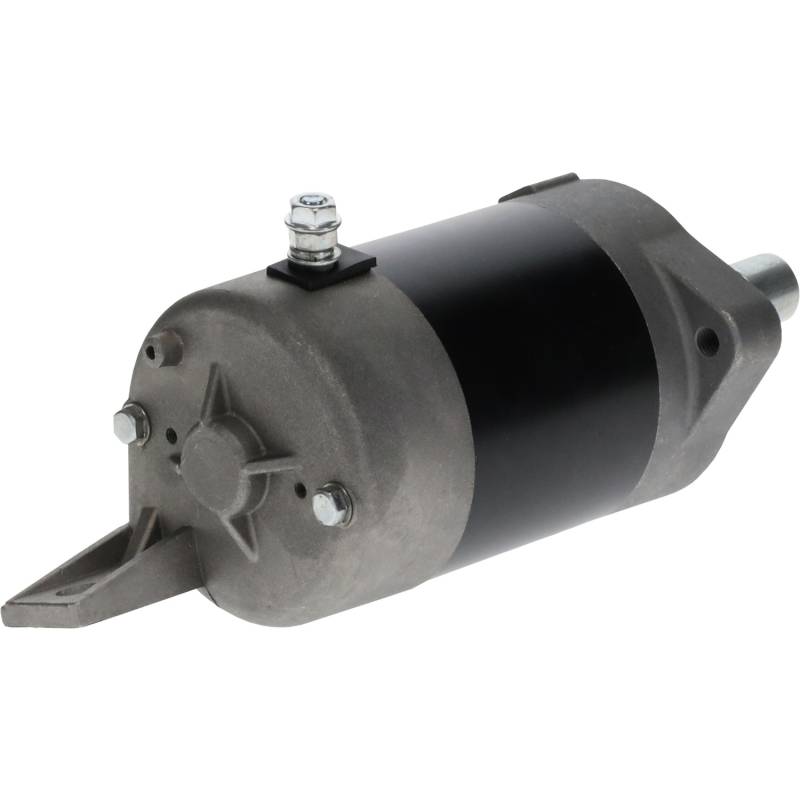

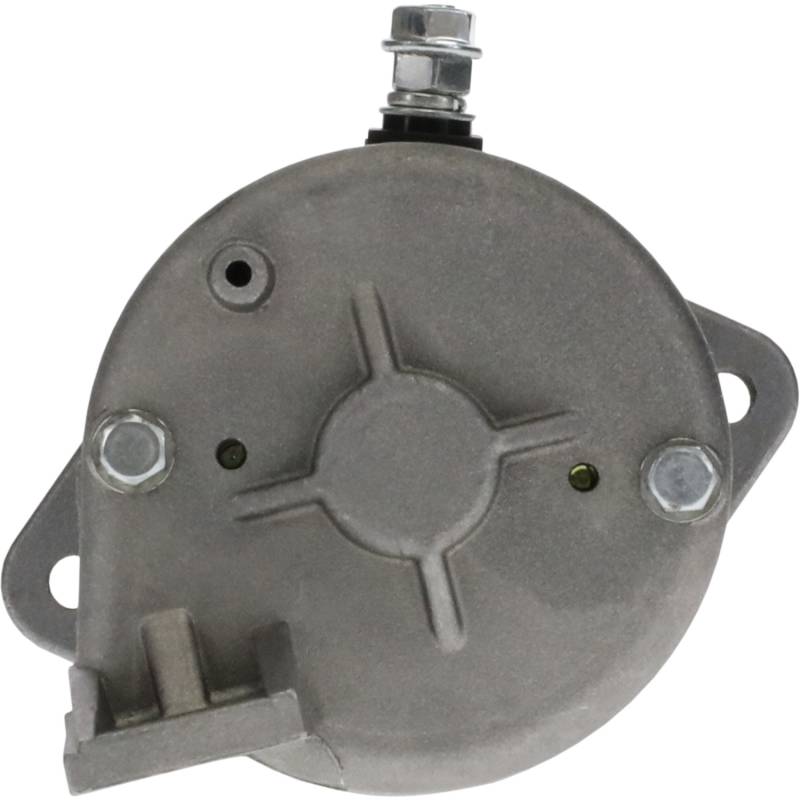

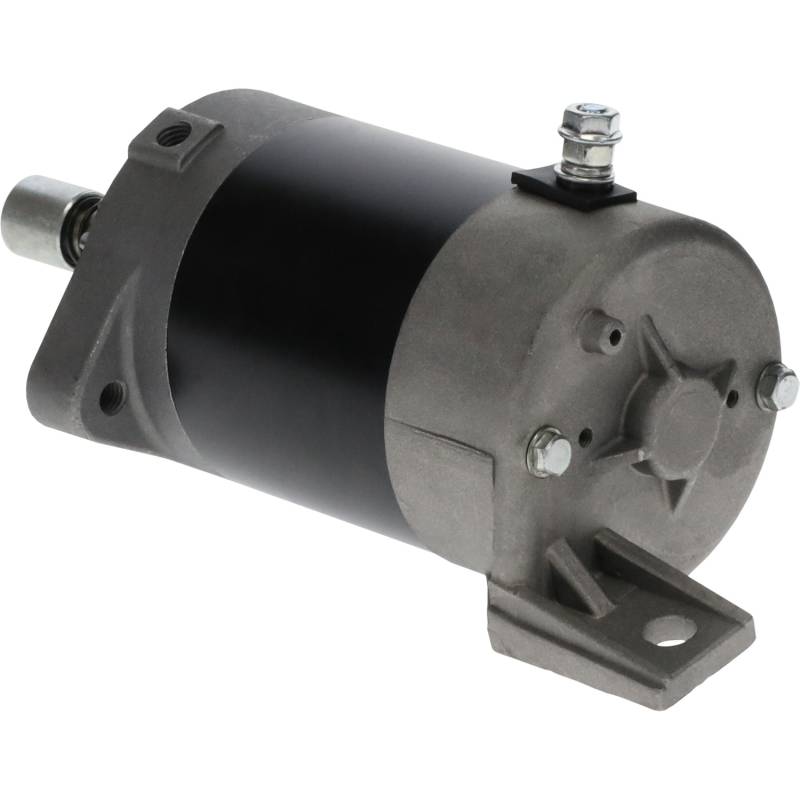

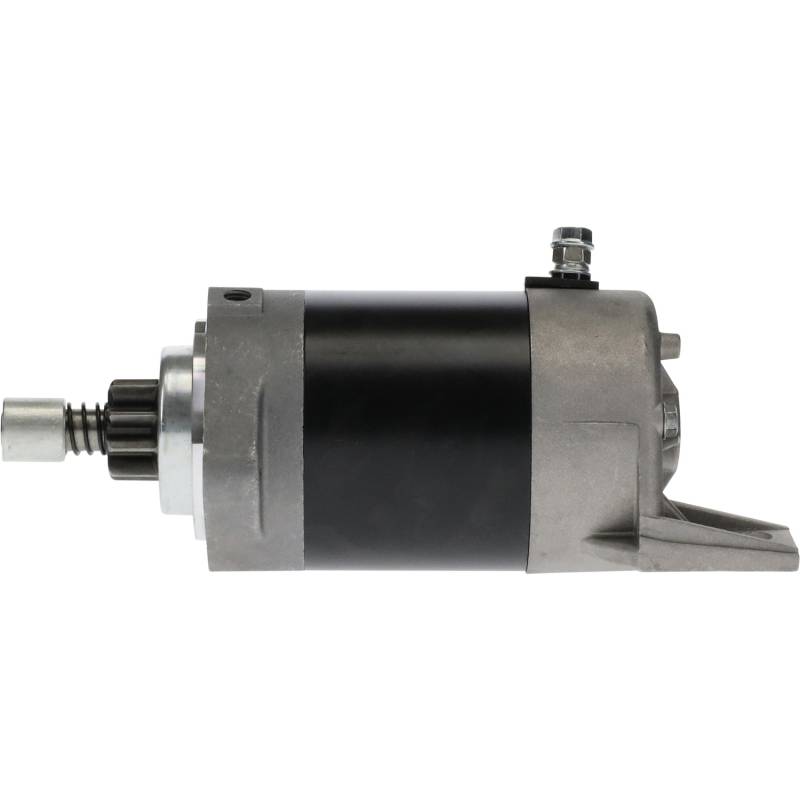

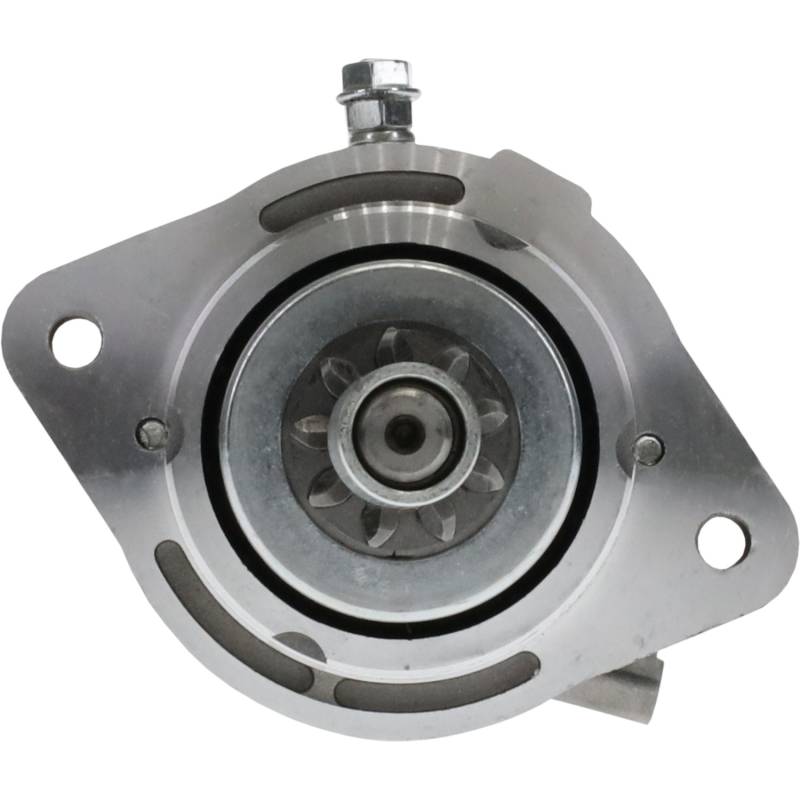

12V Starter Motor - Suzuki Outboard 50-85HP
New 12V direct drive starter motor for Suzuki 2-stroke outboard engines. Counterclockwise rotation, 9-tooth pinion gear, 29.3mm OD, weight 5.82 lbs. Two M8-1.25 threaded mounting holes. Direct OEM replacement for Hitachi S114-407, Suzuki 31100-95310, 31100-95312, 31100-95313, API Marine MOT5006N, Sierra Marine 18-6414, and Arco Marine 3440. Verify OEM part number from your original unit before ordering to ensure proper fitment.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
