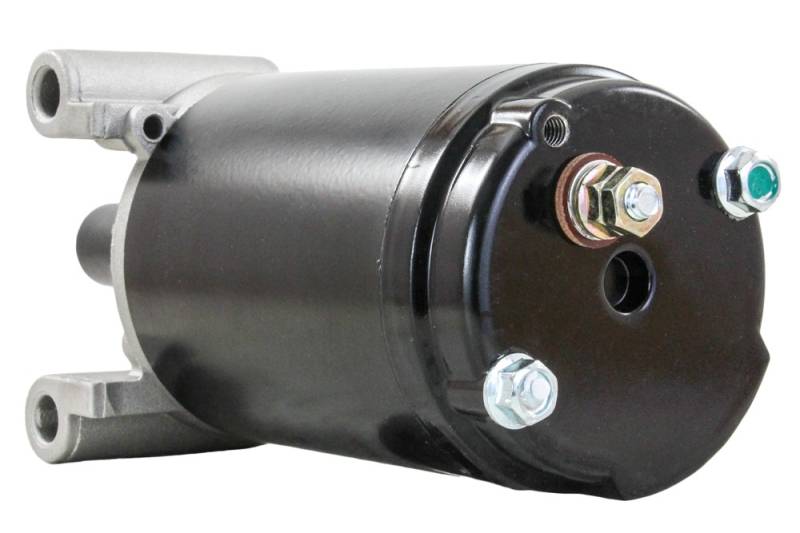

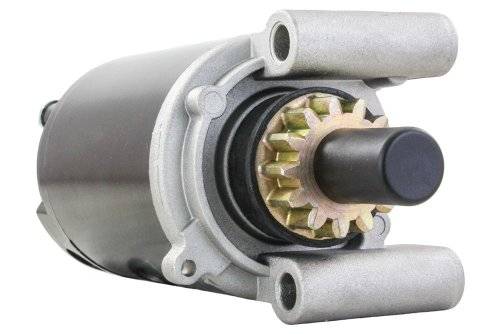

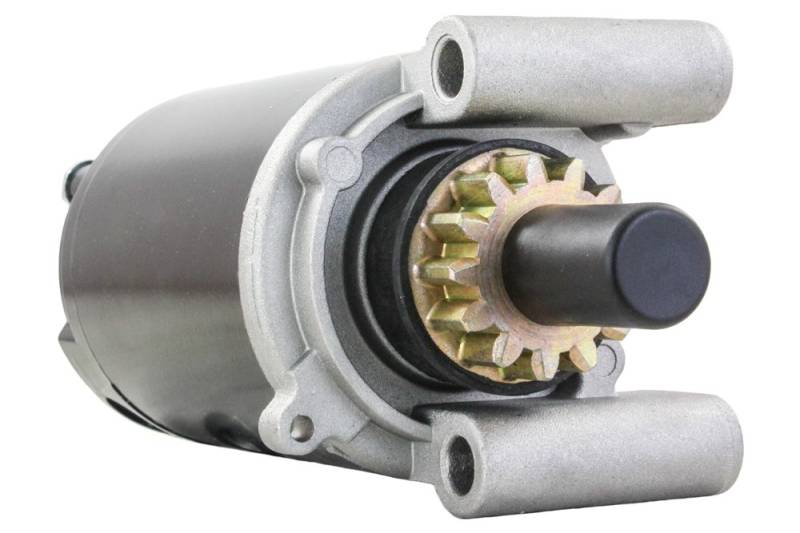

New Starter Compatible With Cub Cadet 1405 Kohler 12-098-05 12-098-06 1209805 1209806 1209809

KOHLER 12-098-05, 12-098-06, 12-098-09, 12-098-12, 12-098-14, 12-098-21, 12-098-21S
UNITED TECHNOLOGIES 5239740-M030SM, 5278440-M030SM, 5667040-M030SM, SM52397, SM52784, SM56670

OEM: KOHLER, JOHNSON ELECTRIC
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CCW
TEETH/SPLINES: 13 TEETH/SPLINES
PINION/SPLINES OD: 38.3MM / 1.508IN
MOUNTING HOLE 1: 8.0MM ID UNTHREADED
MOUNTING HOLE 2: 8.0MM ID UNTHREADED
APPROXIMATE WEIGHT: 5.1 LBS / 2.32 KG

NOTES:
BATTERY TERMINAL ON CE PLATE,
FIELD HOUSING LENGTH 88MM
