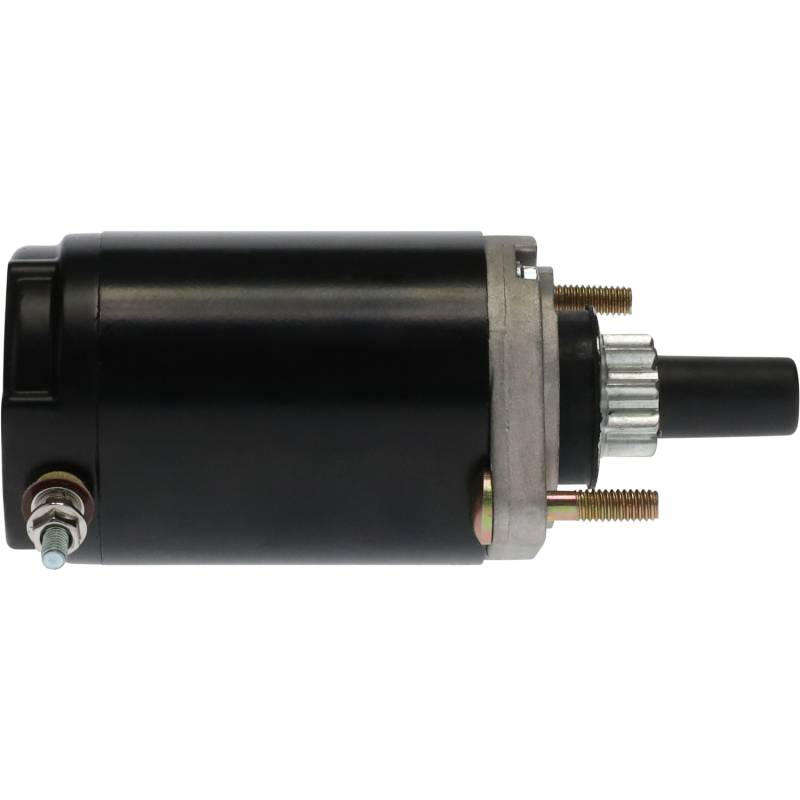

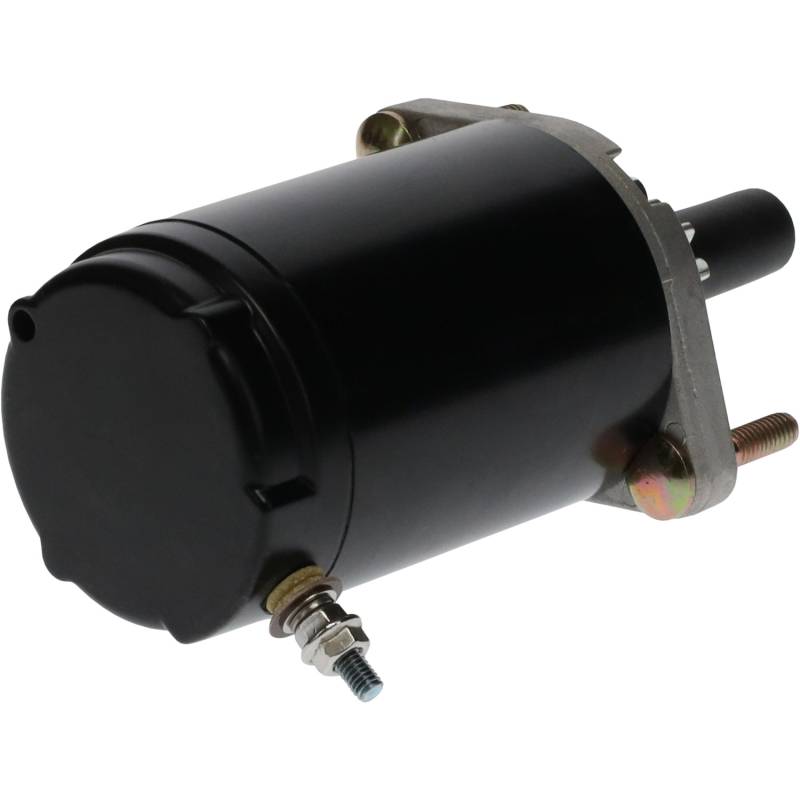

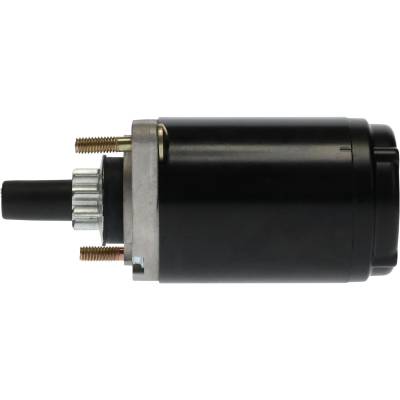

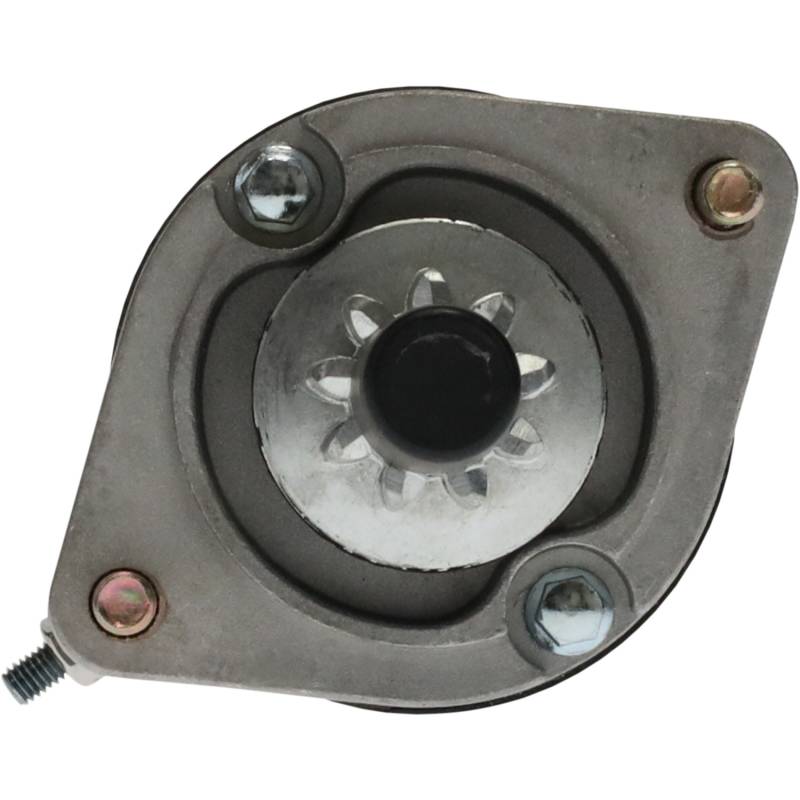

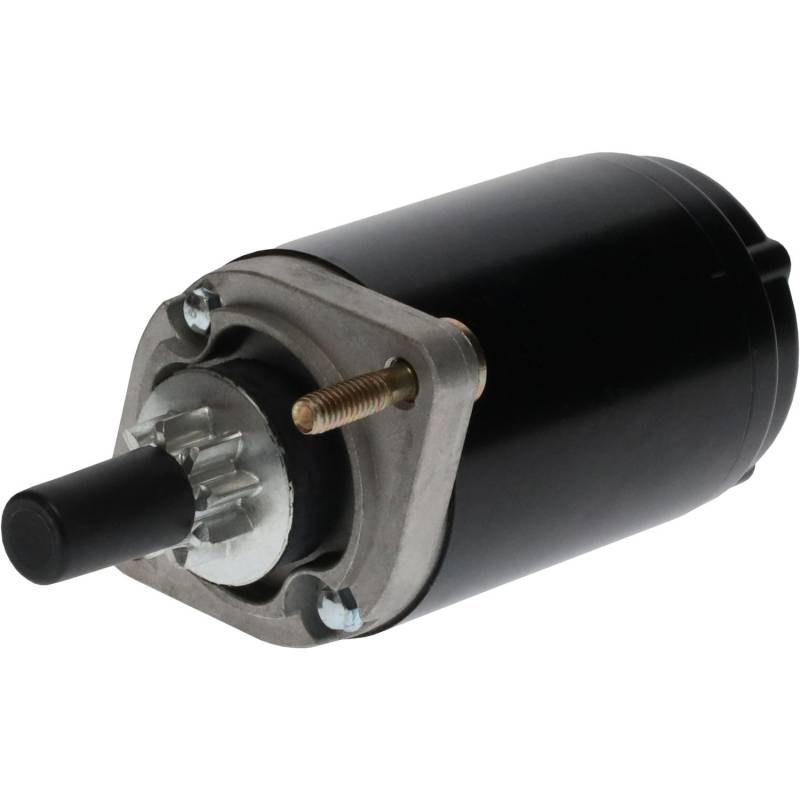

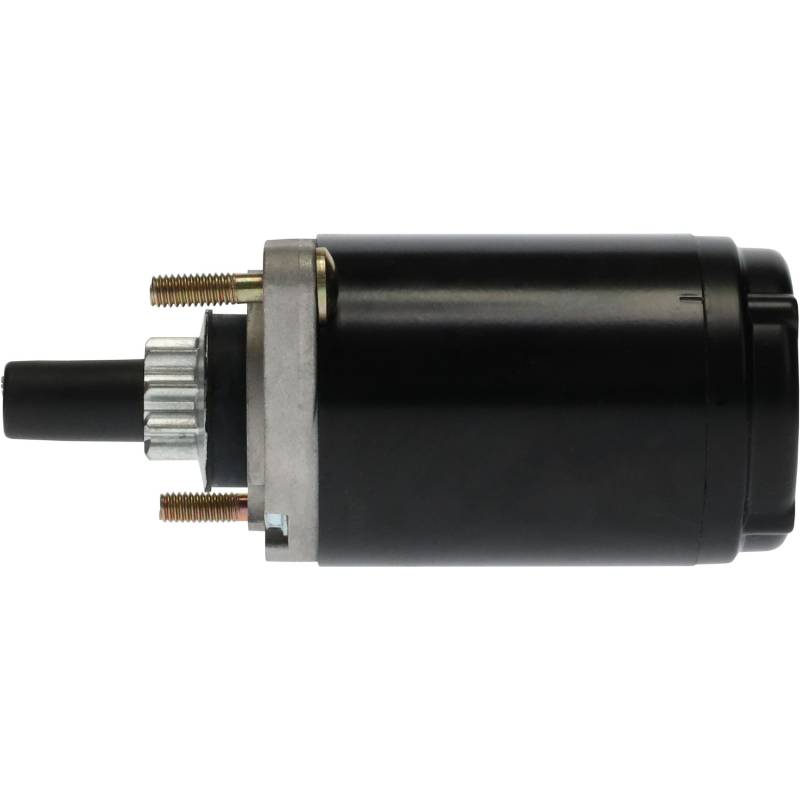

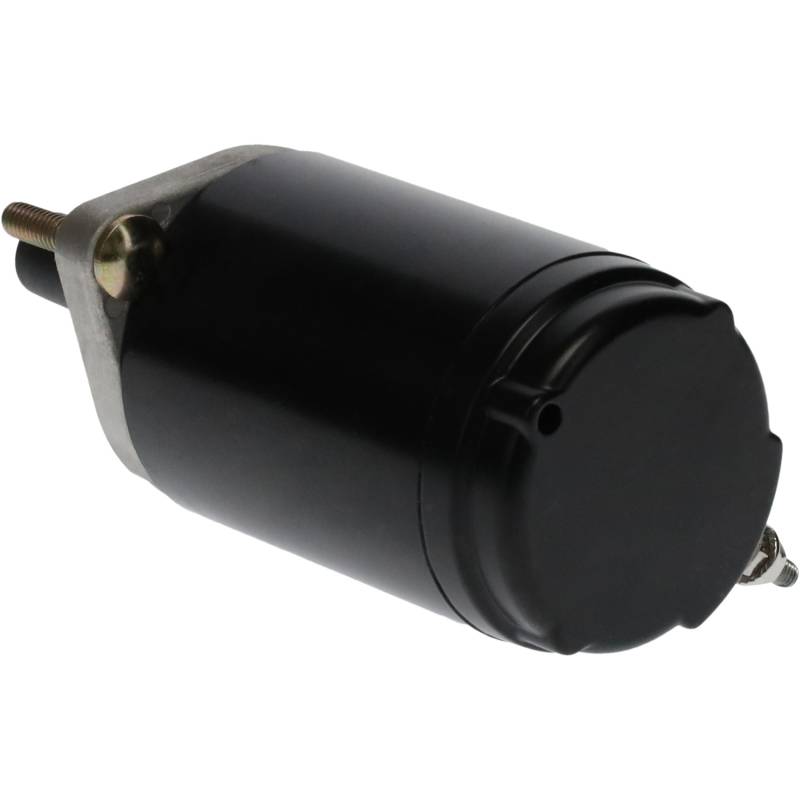

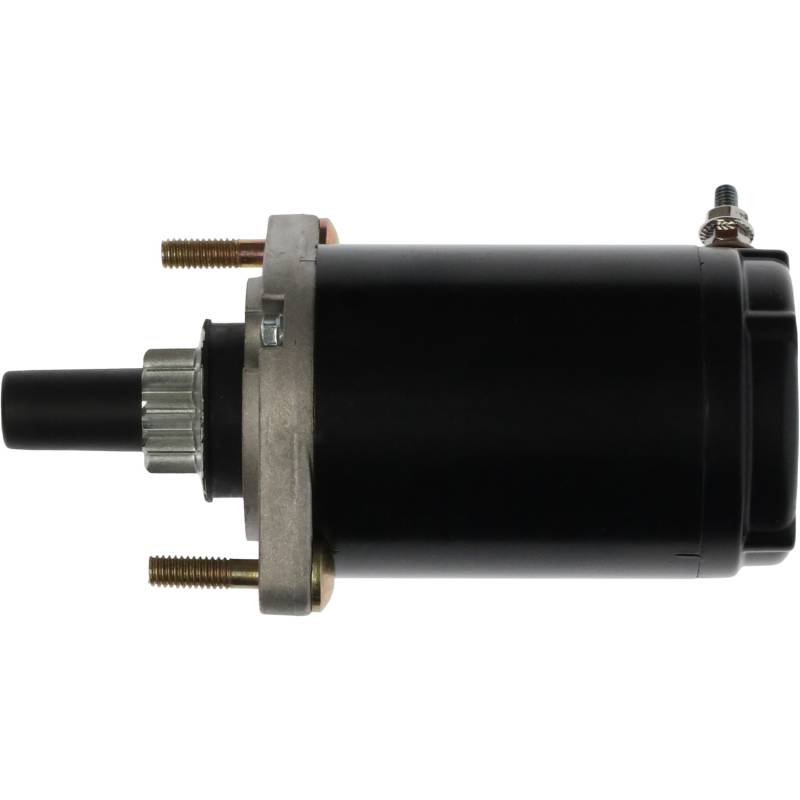

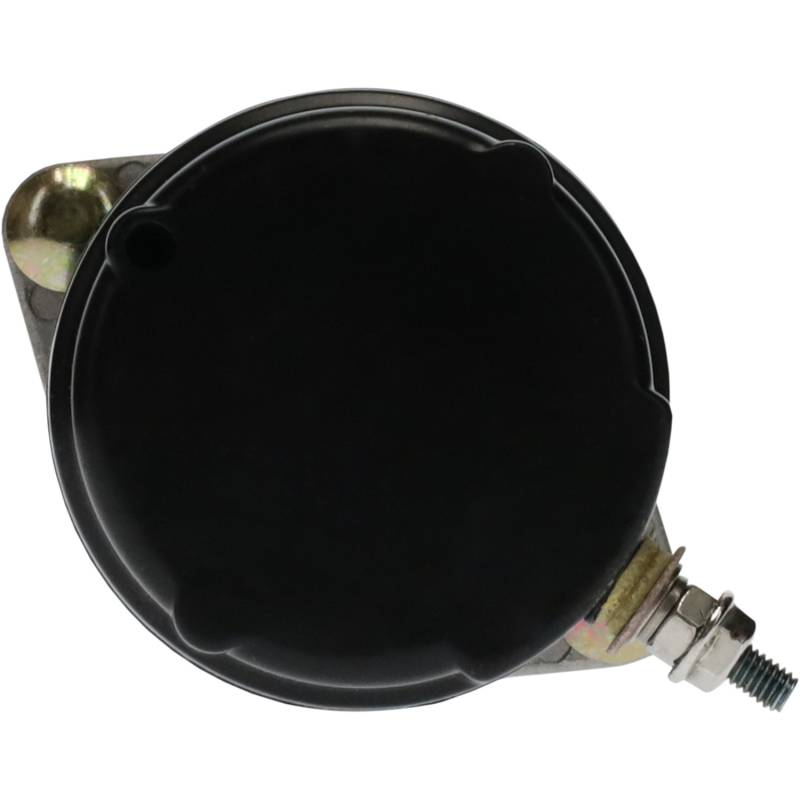

Electric Starter 12 Volt 9 Tooth Compatible With Arctic Cat Cougar 440 El Tigre Ext Jag 340 440Z

SKU: 5944A5

OEM PART NUMBERS:
• Arctco: 0745-052
• Arctco: 0745-257
• Arctco: 0745-030
• Arctco: 0745-018
• Arctco: 0745-357 (replaced by 0745-434)
• Arctco: 0745-434 (current number)
• Arctco: 6639-631
• Arctco: 0745-395
• Arctco: 0745-382
• Arctco: 0745-376
• Arctco: 0745-358
• Arctco: 0745-351
• Arctco: 0745-331
• Arctco: 0645-064

SUPERSESSION CHAIN:
• 0745-052 → superseded by 0745-257 → superseded by 0745-357 → superseded by 0745-434
• 0745-018 → superseded by 0745-030 → superseded by 0745-357 → superseded by 0745-434

SPECIFICATIONS:
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW (Clockwise)
• Teeth: 9
• Gear OD: 29.1mm / 1.146in
• Weight: 6 lbs / 2.72 kg
• Brush Type: Carbon
• Torque: 1.74 Nm
• Cycle Rating: 10000
• Manufacturer: Johnson Electric
• Dimensions: Length 183mm (7.2in), Width 78mm (3.1in), Height 78mm (3.1in)
• Mounting Hole Distance: 90mm (3.5in)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $179.13

Sale: $102.36

Save: 43%

Save: $76.77

Description
Details
Shipping
Reviews

Description

ARCTIC CAT SNOWMOBILE APPLICATIONS:

BEARCAT (339-431cc):
• Bearcat 340 (339cc) - 1995, 1996, 1997, 1998, 1999, 2000
• Bearcat 440 (431cc) - 1995, 1996, 1997, 1998, 1999, 2000
• Bearcat 440 I (431cc) - 1999, 2000
• Bearcat 440 II (431cc) - 1999, 2000

CHEETAH (339-431cc):
• Cheetah 340 (339cc) - 1994
• Cheetah 440 (431cc) - 1991, 1992, 1993, 1994
• Cheetah 440 1-Speed (431cc) - 1994
• Cheetah 440 2-Speed (431cc) - 1994
• Cheetah 440 Touring (431cc) - 1991, 1992
• Cheetah 500 Touring (500cc) - 1990

COUGAR (431-500cc):
• Cougar 440 (431cc) - 1991, 1992, 1993, 1994
• Cougar 440 2-Up (431cc) - 1991, 1992
• Cougar 440 Mountain Cat (431cc) - 1993, 1994
• Cougar 500 (500cc) - 1990
• Cougar 500 Mountain Cat (500cc) - 1990

EL TIGRE (529cc):
• El Tigre EXT (529cc) - 1989, 1990, 1991
• El Tigre EXT Mountain Cat (529cc) - 1989, 1990, 1991
• El Tigre EXT Special (529cc) - 1990

JAG 340 (339cc):
• Jag 340 (339cc) - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 340 Deluxe (339cc) - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 340 Mountain Cat (339cc) - 1990, 1991

JAG 440 (431cc):
• Jag 440 (431cc) - 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 440 AFS (431cc) - 1989, 1990, 1991, 1992, 1993
• Jag 440 AFS Deluxe (431cc) - 1990, 1991
• Jag 440 AFS Long Track (431cc) - 1990, 1991, 1992, 1993
• Jag 440 AFS Special (431cc) - 1991
• Jag 440 Deluxe (431cc) - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
• Jag 440 LC (431cc) - 1996
• Jag 440 Special (431cc) - 1992
• Jag 440 Z (431cc) - 1993, 1994

LYNX (339cc):
• Lynx (339cc) - 1991, 1992, 1993
• Lynx Deluxe (339cc) - 1991, 1992, 1993
• Lynx Mountain Cat (339cc) - 1992, 1993

Details

SKU: 5944A5
Stock #: 5944A5
Brand: Rareelectrical
Year Make Model Submodel: 1988 Arctic Cat Jag 440 -
Year Make Model Submodel: 1988 Arctic Cat Jag 340 -
Year Make Model Submodel: 1988 Arctic Cat Jag 340 Deluxe
Year Make Model Submodel: 1989 Arctic Cat El Tigre EXT -
Year Make Model Submodel: 1989 Arctic Cat El Tigre EXT Mountain Cat
Year Make Model Submodel: 1989 Arctic Cat Jag 340 -
Year Make Model Submodel: 1989 Arctic Cat Jag 340 Deluxe
Year Make Model Submodel: 1990 Arctic Cat El Tigre EXT -
Year Make Model Submodel: 1990 Arctic Cat El Tigre EXT Mountain Cat
Year Make Model Submodel: 1990 Arctic Cat El Tigre EXT Special
Year Make Model Submodel: 1991 Arctic Cat Cheetah Touring
Year Make Model Submodel: 1991 Arctic Cat El Tigre EXT -
Year Make Model Submodel: 1991 Arctic Cat El Tigre EXT Mountain Cat
Year Make Model Submodel: 1993 Arctic Cat Cheetah 440 -
Year Make Model Submodel: 1994 Arctic Cat Cheetah 340 -
Year Make Model Submodel: 1994 Arctic Cat Cheetah 440 1 Speed
Year Make Model Submodel: 1994 Arctic Cat Cheetah 440 2 Speed
Year Make Model Submodel: 1995 Arctic Cat Bearcat 340 -
Year Make Model Submodel: 1995 Arctic Cat Bearcat 440 -
Year Make Model Submodel: 1996 Arctic Cat Bearcat 340 -
Year Make Model Submodel: 1996 Arctic Cat Bearcat 440 -
Year Make Model Submodel: 1997 Arctic Cat Bearcat 340 -
Year Make Model Submodel: 1997 Arctic Cat Bearcat 440 -
Year Make Model Submodel: 1998 Arctic Cat Jag 440 -
Year Make Model Submodel: 1998 Arctic Cat Jag 440 Deluxe
Year Make Model Submodel: 1998 Arctic Cat Bearcat 340 -
Year Make Model Submodel: 1998 Arctic Cat Bearcat 440 -
Year Make Model Submodel: 1998 Arctic Cat Jag 340 -
Year Make Model Submodel: 1998 Arctic Cat Jag 340 Deluxe
Year Make Model Submodel: 1999 Arctic Cat Jag 440 -
Year Make Model Submodel: 1999 Arctic Cat Bearcat 340 136in
Year Make Model Submodel: 1999 Arctic Cat Bearcat 440 I 136in
Year Make Model Submodel: 1999 Arctic Cat Bearcat 440 II 156in
Year Make Model Submodel: 1999 Arctic Cat Jag 340 Deluxe
Year Make Model Submodel: 2000 Arctic Cat Bearcat 340 -
Year Make Model Submodel: 2000 Arctic Cat Bearcat 440 I
Year Make Model Submodel: 2000 Arctic Cat Bearcat 440 II
SOURCE: Aftermarket
VEHICLE MAKE: Arctic Cat
PRODUCT TYPE: Starter
VOLTAGE: 12
ROTATION: Clockwise
TEETH ON DRIVE: 9
STARTER TYPE: PMDD
COUNTRY OF ORIGIN: TW
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 6.0 lbs.
Package Dimensions: W6.0000” x H6.0000” x L10.0000”
Shipping: Free Shipping!
