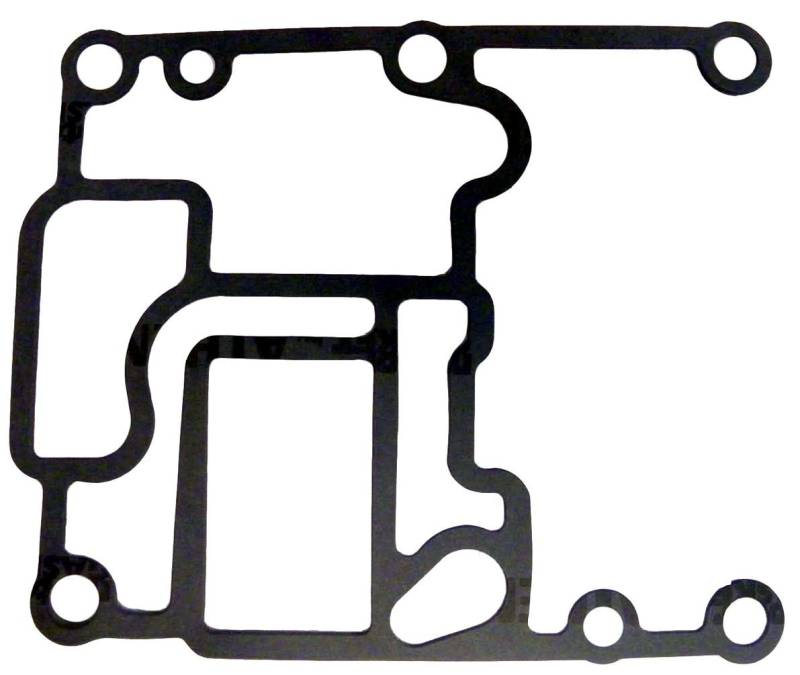

Outboard Adapter Plate Gasket Compatible With Chrysler Force 40Hp 50Hp 2 Cylinder 1995-1999 Replaces

510-52
OEM PART NUMBERS:
• 27-826738 - Chrysler / Force / Mercury Marine OEM
• 27-826738-1 - Superseded OEM format
• 826738 - Mercury Marine short format

SPECIFICATIONS:
• Part Type: Adapter Plate Gasket
• Material: Non-Asbestos Composite
• Cylinder Bore: 3.375"
• Engine: 2-Cylinder 2-Stroke In-Line
• Horsepower: 40HP and 50HP
• Years: 1995, 1996, 1997, 1998, 1999
• Bore: 3.375 Inches
• Stroke: 2.875 Inches
• Condition: New Aftermarket Replacement
• Direct OEM Fit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $44.21
Sale: $25.26
Save: 43%
Save: $18.95
Qty:
Free Shipping!

Description

CHRYSLER / FORCE OUTBOARD MOTOR APPLICATIONS:

Force 40HP 2-Cylinder Outboard (1995) - Cross-Flow Block:
• 1995 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

Force 50HP 2-Cylinder Outboard (1995) - Cross-Flow Block:
• 1995 Force 50HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

Force 40HP 2-Cylinder Outboard (1996-1999) - Top Guided Block:
• 1996 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1997 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1998 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1999 Force 40HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

Force 50HP 2-Cylinder Outboard (1996-1999) - Top Guided Block:
• 1996 Force 50HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1997 Force 50HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1998 Force 50HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore
• 1999 Force 50HP 2-Cylinder 2-Stroke Outboard - 3.375" Bore

Mercury Outboard (1998-1999):
• 1998 Mercury 40HP 2-Cylinder 2-Stroke Outboard
• 1998 Mercury 50HP 2-Cylinder 2-Stroke Outboard
• 1999 Mercury 40HP 2-Cylinder 2-Stroke Outboard
• 1999 Mercury 50HP 2-Cylinder 2-Stroke Outboard

ENGINE SPECIFICATIONS:
• Configuration: 2-Cylinder In-Line
• Bore: 3.375 Inches (85.725mm)
• Stroke: 2.875 Inches (73.025mm)
• Cycle: 2-Stroke Loop Charged
• Fuel: Carbureted - Pre-Mix or Oil Injection
• Ignition: CDI Electronic Ignition
• Cooling: Water Cooled (Raw Water)
• Starting: Electric Start or Manual Pull Start

NOTES:
• 1995 models use cross-flow piston design
• 1996-1999 models use top-guided piston design
• Both designs share the same 3.375" bore and use this adapter plate gasket
• Force outboards acquired by Mercury Marine; 1998-1999 models sold under both brands
• Force outboard production ended 1999
