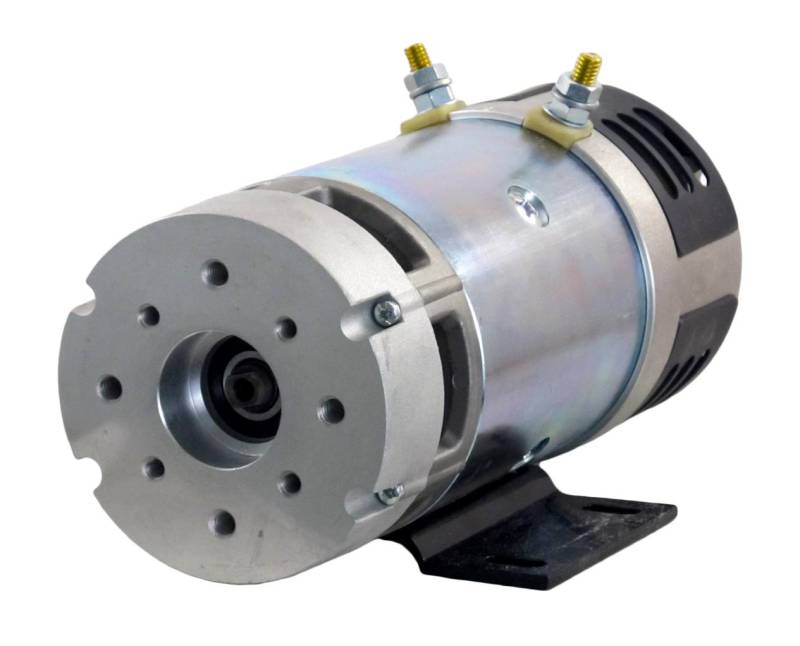

OEM PART NUMBERS:
• Iskra/Letrika: 11.216.130, AMK4635, 11.216.011, AMK4626, 11.212.822, AMK4622, 11.216.957
• Letrika/Mahle: IM0284, MM288
• Haldex Hydraulics: 220-1054 / 2201054
• Savery: 8106-1184
• Skyjack: 123477, 123477AA, 106576, 220856
• Ariens: 715141
SPECIFICATIONS:
• Voltage: 24V DC
• Power: 3KW / 4HP
• Rotation: CW (Clockwise)
• RPM: 3,100
• Type: Iskra/Letrika 4-Pole Wound Field, Bipolar
• Field Housing OD: 123.5mm / 4.862"
• Overall Length: 285.8mm / 11.252"
• Shaft: 1/4-20 Threaded (Flex Coupler Style)
• Terminal 1: M10-1.5 | Terminal 2: M10-1.5
• Weight: 27.935 lbs / 12.70 kg
• Features: Vented, Heavy Duty Insulated Ground, Internal Fan
• Operating Range: -20°C to +90°C
• Condition: New
SJIII 3015, SJIII 3215, SJIII 3219, SJIII 3220, SJIII 3226, SJIII 4620, SJIII 4626, SJIII 4632:
SKYJACK SCISSOR LIFTS:PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
