OEM PART NUMBERS:
• Mercury Marine: 14336A6 / 14336A8 / 14336A9 / 14336A12
• Mercury Marine: 14336A15 / 14336A17 / 14336A20 / 14336A22
• Mercury Marine: 14336A25 / 14336A28 / 14336A31
• Mercury Marine: 88183A5 / 88183A6 / 88183A8 / 88183A11
• Mercury Marine: 88183A12 / 88183A13 / 88183A25
• Mercury Marine: 865380A03 / 865380A13
SPECIFICATIONS:

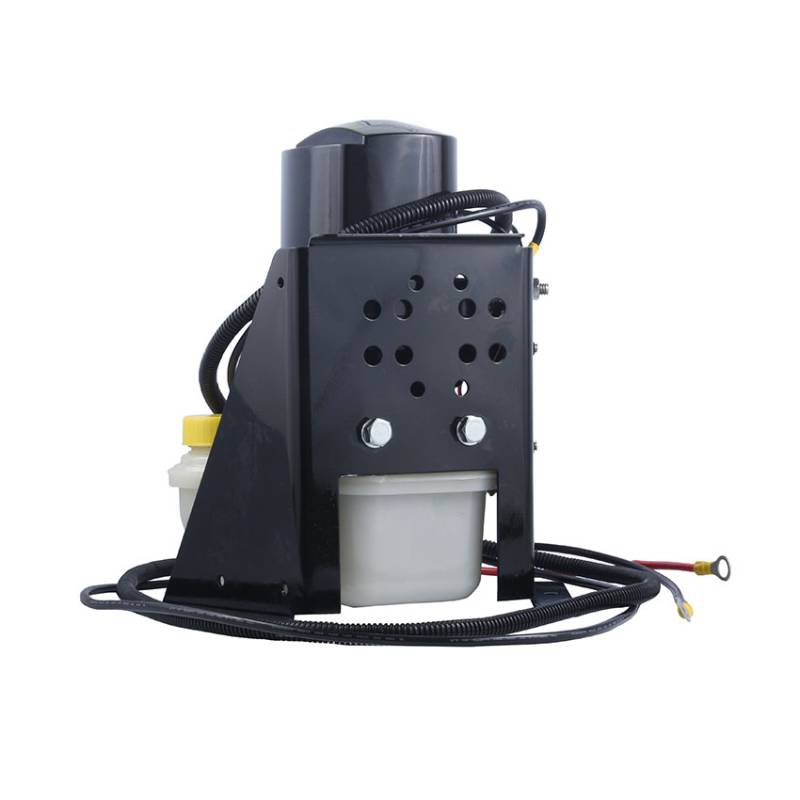

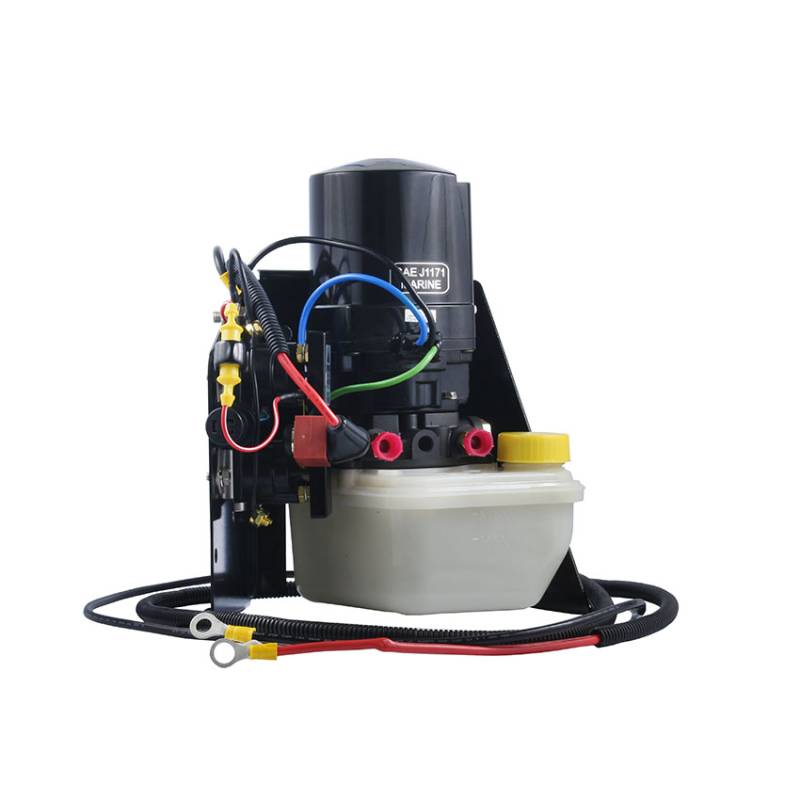

• Product Type: Complete Tilt Trim Assembly (Floor Mount)
• Includes: Motor, Oildyne Pump, Reservoir, Mounting Bracket, Solenoids, Wiring, Junction Block, Hardware
• Mounting: Floor Mount (Bottom Mount)
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Connection: 3-Wire (Ring Terminal Ends)
• Pump Type: Oildyne
• Reservoir: Plastic (White)
• Bracket: Stainless Steel Mounting
• SAE J1171 Marine Ignition Protection Certified
• Quick Connect Hose Fittings
• Condition: New
APPLICATION:
• MerCruiser Alpha One Gen II / Bravo One / Two / Three and All Variants
• MerCruiser Blackhawk / Integrated Transom / TR/TRS
• Mercury 377/502/540/575 Bravo (1998-2006)
• Mercury Outboard 35-220 HP (1974-1984)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
