Piston Kit 70.75Mm 1Mm Over Compatible With Polaris Sl 750 1993-1995 Slt 750 1994-1995 Fuji 744Cc

010-830-07K
OEM PART NUMBERS:
• Polaris: 3240146

SPECIFICATIONS:
• Kit Type: Piston Kit — per cylinder (3 required per engine)
• Engine: Polaris / Fuji 744cc 3-Cylinder 2-Stroke ~80HP
• Bore Size: 70.75mm (+1mm Over) — Standard bore is 69.75mm
• Piston Pin Diameter: 17.85mm
• Oversize: 4th increment (+1mm / maximum standard oversize)

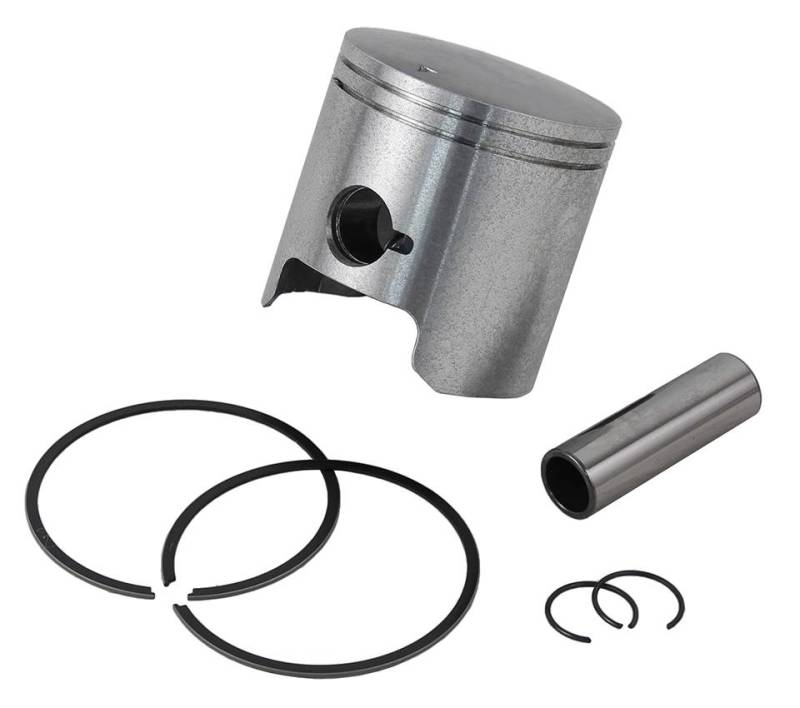

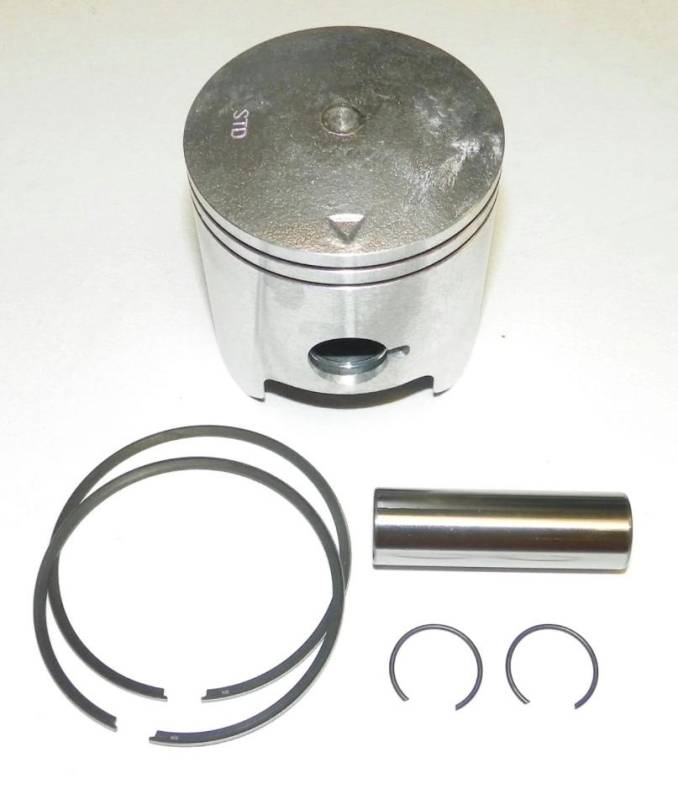

• Kit Contents: 1 Piston (70.75mm), 1 Ring Set, 1 Wrist Pin, 1 Bearing, 1 Circlip Set
• Source: Aftermarket / Weight: 2 lbs

POLARIS 750 APPLICATIONS:
• SL 750 (1993-1995) — 2-seat, Fuji 744cc 3-Cyl 2-Stroke ~80HP
• SLT 750 (1994-1995) — 3-seat, Fuji 744cc 3-Cyl 2-Stroke ~80HP

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $108.48
Sale: $61.99
Save: 43%
Save: $46.49
Qty:
Free Shipping!

Description

POLARIS FUJI 744cc 3-CYL 2-STROKE ~80HP — 70.75mm (+1mm Over, Std 69.75mm):
• SL 750 Polaris Fuji 744cc 3-Cyl 2-Stroke ~80HP (1993-1995)
• SLT 750 Polaris Fuji 744cc 3-Cyl 2-Stroke ~80HP (1994-1995)

⚠ ORDERING NOTE — PER-CYLINDER KIT:
• This kit contains parts for ONE cylinder (1 piston, 1 ring set, 1 wrist pin,
1 wrist pin bearing, 1 circlip set)
• Polaris 750 is a 3-cylinder engine — ORDER 3 KITS PER ENGINE
• Standard bore: 69.75mm | This kit: 70.75mm (+1mm / 4th oversize increment)
• Piston pin diameter: 17.85mm

BORE OVERSIZE SERIES (all available):
• 010-830K — Standard 69.75mm
• 010-830-04K — +.25mm (70.00mm)
• 010-830-05K — +.50mm (70.25mm)
• 010-830-06K — +.75mm (70.50mm)
• 010-830-07K — +1.00mm (70.75mm) ← THIS KIT

Details

Shipping Information

  • Item Requires Shipping
  • 1.1 lbs.
  • W4.0000” x H4.0000” x L6.0000”
  • Free Shipping!
