Piston Kit 1.00Mm Over 80.87Mm Compatible With 1999-2005 Kawasaki Ultra 150 1200 2002-2005 Stx-R

OEM PART NUMBERS:
• Kawasaki: 13001-3731 / 130013731
• Kawasaki: 13001-3730 / 130013730

SPECIFICATIONS:
• Type: Piston Kit (1.00mm Oversize Bore — Maximum)
• Standard Bore: 79.87mm / Oversize: 80.87mm (1.00mm Over)
• Maximum Oversize — Resleeving Required Beyond 1.00mm
• Engine: Kawasaki 1176cc 3-Cylinder 2-Stroke Slant Triple
• Power: ~150HP / Triple Keihin CDK Carburetors
• Cooling: Liquid Cooled / Digital CDI Ignition
• Weight: 2 lbs / Condition: New

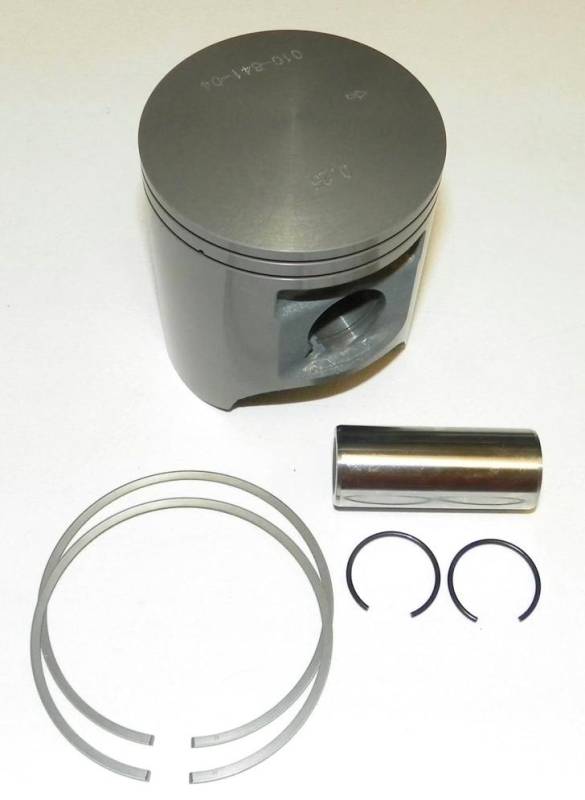

KIT CONTENTS (Single Cylinder):
• (1) Piston / (1) Ring Set (Japanese RIK Performance)
• (1) Wrist Pin / (2) Circlips
• Order (3) kits for complete 3-cylinder rebuild

BORE SIZE CHART (Kawasaki 1200 Ultra 150 / STX-R):
• Standard: 79.87mm
• 0.25mm Over: 80.12mm
• 0.50mm Over: 80.37mm
• 0.75mm Over: 80.62mm
• 1.00mm Over: 80.87mm (010-841-07K) — THIS KIT / MAXIMUM

APPLICATIONS:
• Ultra 150 1200 (1999-2005) / STX-R 1200 (2002-2005)
