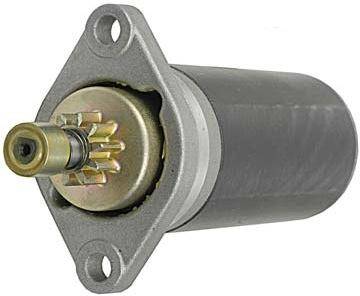

Starter Compatible With Mercury Marine 8Hp 9.9Hp 4-Stroke Outboard Evinrude Johnson 9.8Hp Yamaha

(0) Reviews: Write first review
18301*3
OEM PART NUMBERS:
• Hitachi: S106-12 / S10612 / S106-12A / S10612A / S106-12AN / S106-12B / S10612B
• Hitachi: S106-07 / S106-07B / S10607B / S106-07D / S106-07E / S10607E
• Hitachi: S106-07F / S10607F / S106-07FN / S10607FN
• Yamaha: 682-81800-11 / 68281800-11 / 682-81800-11-00 / 6828180011
• Yamaha: 682-81800-12 / 682-81800-12-00 / 6828180012
• Yamaha: 6L2-81800-20 / 6L2-81800-20-00 / 6L28180020
• Yamaha: 6L2-81800-11 / 6L28180011
• Tohatsu: 350-76010-0 / 35076010 / 350-76010-0M / 3507601-0M
• Tohatsu: 3AA-76010-0 / 3AA760100 / 3AA-76010-0M / 3AA7601-0M
• Tohatsu: B29A90500 / B29A90500A
• Mercury Marine: 50-803835T02 / 803835T02
• OMC: 5040343



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 3420
• Sierra: 18-6410
SPECIFICATIONS:
• Type: Hitachi PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Power: 0.4kW / 0.54HP
• Rotation: CCW (Counter-Clockwise)
• Teeth: 10
• Gear OD: 22.1mm / 0.870in
• Mounting: 8.5mm ID Unthreaded (x2)
• Weight: 3.62 lbs / 1.65 kg
• SAE J1171 Marine Ignition Protection Certified
• Condition: New

YAMAHA OUTBOARD APPLICATIONS:
• 6HP/8HP 2-Stroke (1984-1990) / 9.9HP/15HP 2-Stroke (1984-1997)
• 20HP 2-Stroke (1996-1997) / 25HP 2-Stroke (1988-2010)

TOHATSU / NISSAN OUTBOARD APPLICATIONS:
• Tohatsu M8/M9.8/M9.9/M15/M18 2-Stroke (1992-2003)
• Tohatsu MFS8/MFS9.8 4-Stroke (2003-2009)
• Nissan NS8/NS9.8/NS15/NS18 (1992-2003)

MERCURY / EVINRUDE JOHNSON APPLICATIONS:
• Mercury 8HP/9.9HP 4-Stroke 12.8ci (2005-2011)
• Evinrude/Johnson 9.8HP (2012-2018)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $232.09
Sale: $132.62
Save: 43%
Save: $99.47
Qty:
Free Shipping!

Description

YAMAHA 2-STROKE OUTBOARD MOTORS:
• 6HP 2-Stroke (1984-1990)
• 8HP 2-Stroke (1984-1990)
• 9.9HP 2-Stroke (1984-1997)
• 15HP 2-Stroke (1984-1997)
• 20HP 2-Stroke (1996-1997)
• 25HP 2-Stroke (1988-2010)

TOHATSU 2-STROKE OUTBOARD MOTORS:
• B29A 2-Stroke (1981-1982)
• M8 8HP 2-Stroke (1992-2003)
• M9.8 9.8HP 2-Stroke (1998-2003)
• M9.9 9.9HP 2-Stroke (1992-2003)
• M15 15HP 2-Stroke (1992-2003)
• M18 18HP 2-Stroke (1992-2003)

TOHATSU 4-STROKE OUTBOARD MOTORS:
• MFS8 8HP 4-Stroke (2003-2009)
• MFS9.8 9.8HP 4-Stroke (2003-2009)

NISSAN MARINE OUTBOARD MOTORS:
• NS8 8HP 2-Stroke (1992-2003)
• NS9.8 9.8HP 2-Stroke (1998-2003)
• NS15 15HP 2-Stroke (1992-2003)
• NS18 18HP 2-Stroke (1992-2003)

MERCURY MARINE 4-STROKE OUTBOARD MOTORS:
• 8HP 4-Stroke 12.8ci (2005-2011)
• 9.9HP 4-Stroke 12.8ci (2005-2011)

EVINRUDE / JOHNSON OUTBOARD MOTORS:
• 9.8HP (2012-2018)
