HALE: 200-0040-00
PRESTOLITE: 46-557 MAY4146 46-555 MAY4301 MAY4301S 46-2155 46-2244 46-235 46-2604 46-2605 MCL6225 MCL-6225 MCL6225A MCL6228 MCL6508 MCL6508T 46-2155 46-2244 46-235 46-2604 MCL6225 MCL6225A MCL6228 MCL6508 MCL6508T MAY-4601 46-557 46-555 MCL-6115 M-2000 46-4200
REPLACES: M-2000 V-1157 V-2068 VHA-445D
WESTERN MOTOR: W-6599 W6599

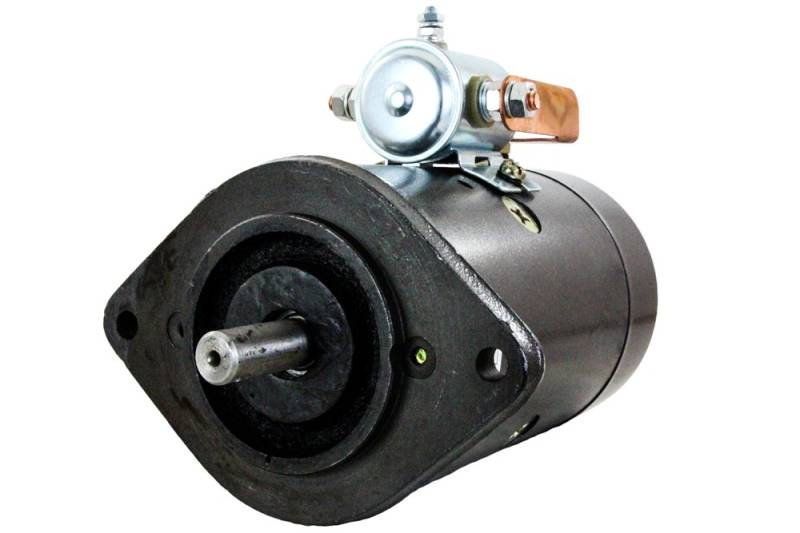

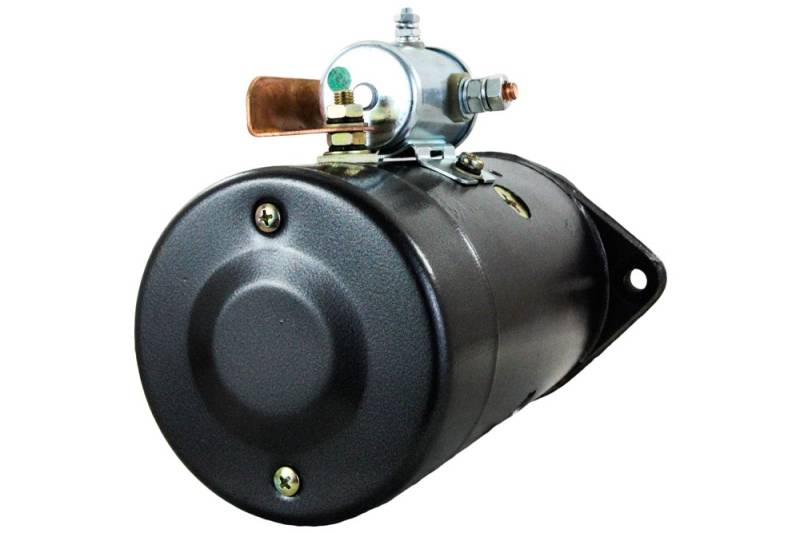

ITEM DESCRIPTION: ELECTRIC MOTOR
UNIT TYPE: PRESTOLITE
VOLTAGE: 12
ROTATION: CLOCKWISE
SHAFT OUTSIDE DIAMETER: 15.9 MM
SHAFT NOTES: 4.6 MM WIDE WOODRUFF SLOT
TERMINAL 1 SIZE: 5/16-18
TERMINAL 2 SIZE: 5/16-18
TERMINAL 3 SIZE: 5/16-18
TERMINAL 4 SIZE: 5/16-18
OVERALL LENGTH: 212 MM / 8.346 IN
SPECIFICATIONS: 112 MM / 4.409 IN
WEIGHT: 23 LBS
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
***DOUBLE BALL BEARING, PRIMER PUMP MOTOR***
FIRE TRUCK PUMP MOTOR
HALE PRIMER PUMP
POWER WHEELS EQUIPMENT
PUREZ CORP.
WATEROUS
