OEM PART NUMBERS:
• John Deere: AM809215 / AM879204 / M809215 / TY25238 / AM880978 / SE501858
• Nippondenso: 228000-7470 / 228000-7471 / 228000-7472 / 428000-0600
• Yanmar: 119626-77010 / 119626-77011
SPECIFICATIONS:
• Voltage: 12V
• Power: 1.1kW / 1.47HP
• Starter Type: PLGR (Planetary Gear Reduction)
• Starter Family: Denso P
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 28.5mm / 1.122in
• Mounting Ear 1: 11.4mm Unthreaded
• Mounting Ear 2: 11.4mm Unthreaded (Slotted - 21mm Long)
• Battery Stud: M8-1.25 Threaded
• Weight: 7.2 lbs / 3.27 kg
• Condition: New
APPLICATION:
• Utility Tractors 4010/4100/4110 Yanmar Diesel (1998-2005)
• Front Mowers 1420/1435 Yanmar Diesel (2005-2009)
• Pro Gator 2020/2020A/2030/2030A Yanmar (1998-2007)
• Gator TH 6x4 / XUV 850D / M-Gator A1 Yanmar (2010-2011)

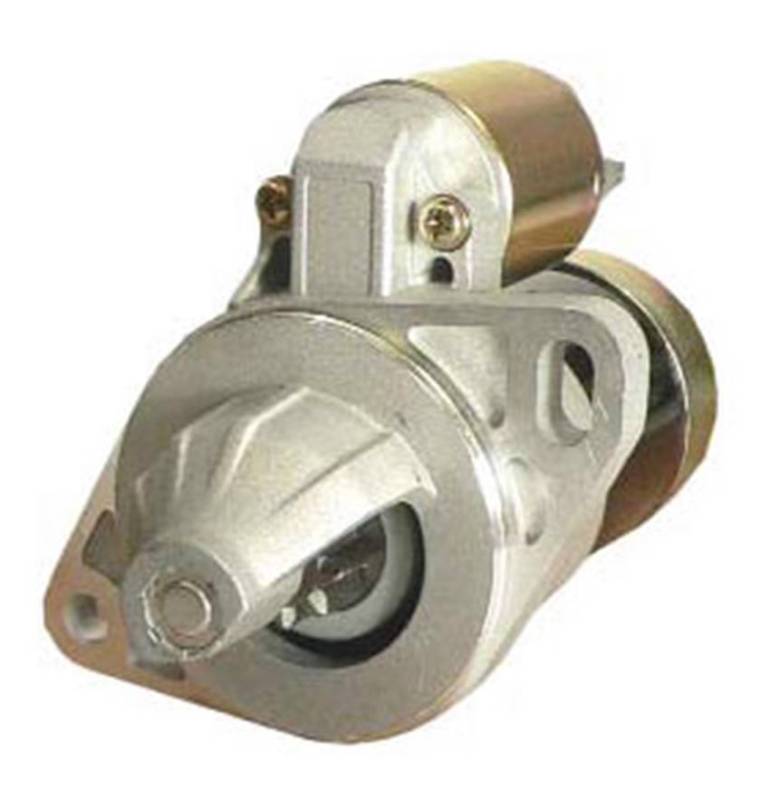

Denso PLGR Starter - 4100 4110 4010 Tractors and 1420 1435 Front Mowers
Direct OEM replacement 12-volt starter motor for Yanmar-powered utility tractors and front mowers. This 1.1kW PLGR starter features a 9-tooth pinion gear with 28.5mm OD and clockwise rotation. The compact planetary gear reduction design delivers reliable cranking at 7.2 lbs with two 11.4mm unthreaded mounting ears and M8-1.25 threaded battery stud. Fits the 4010, 4100, 4110 tractors, 1420 and 1435 front mowers, and Pro Gator/Gator utility vehicles with Yanmar engines. Replaces AM879204, Denso 228000-7471, and Yanmar 119626-77011.
