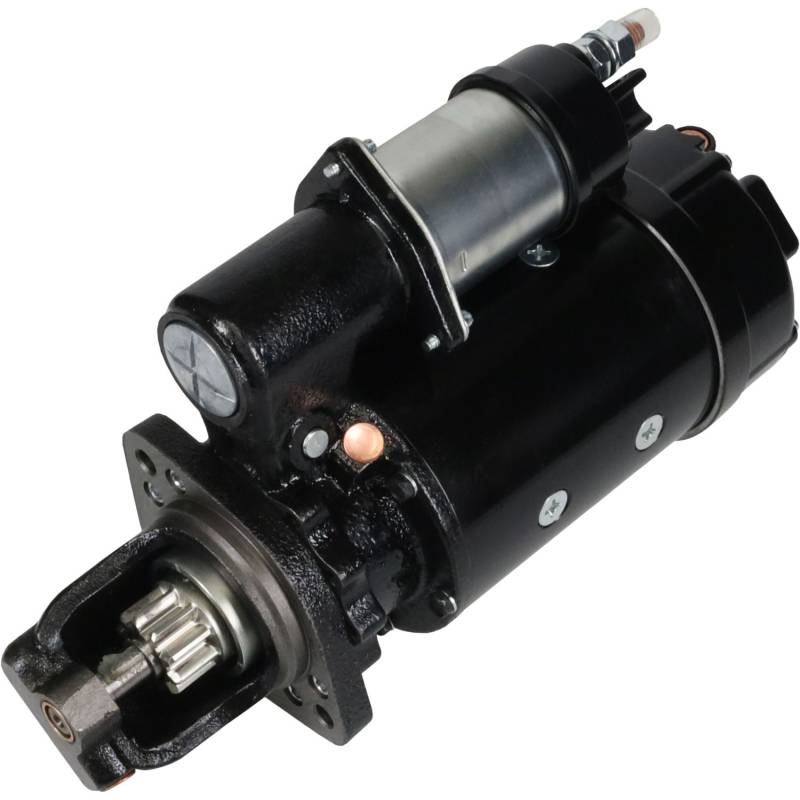

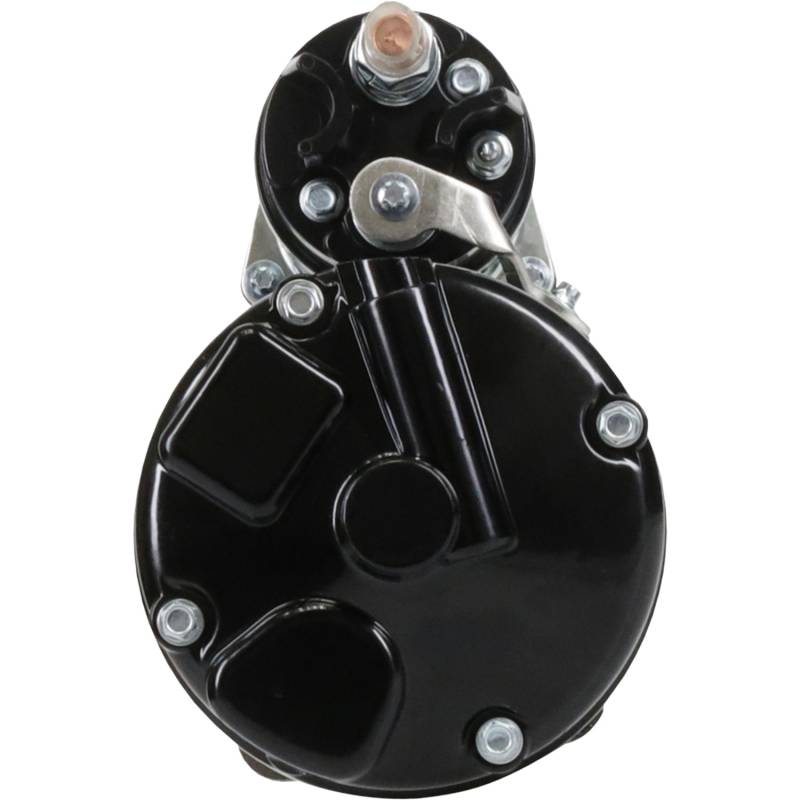

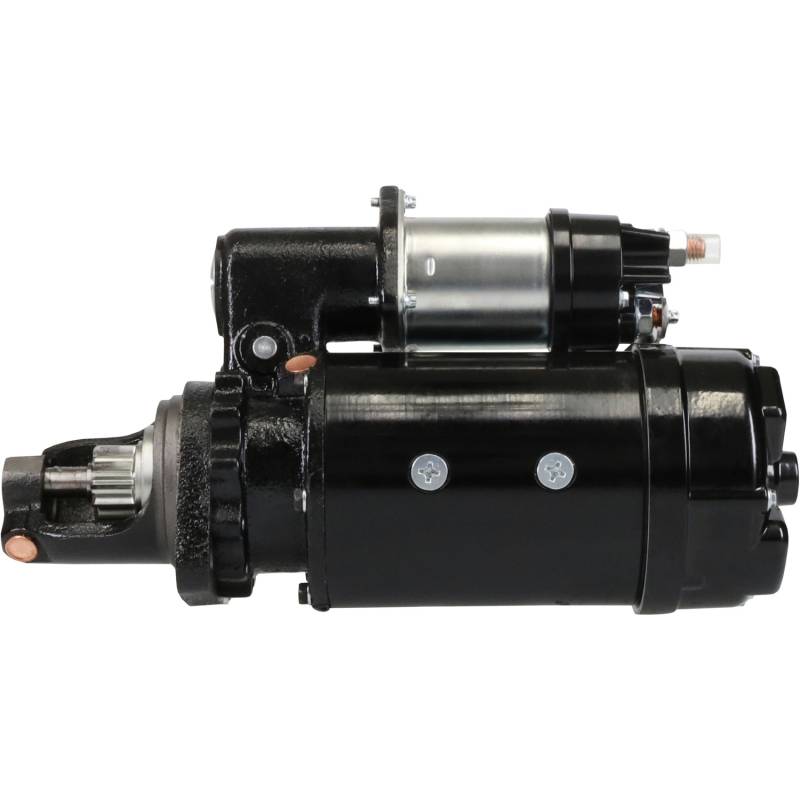

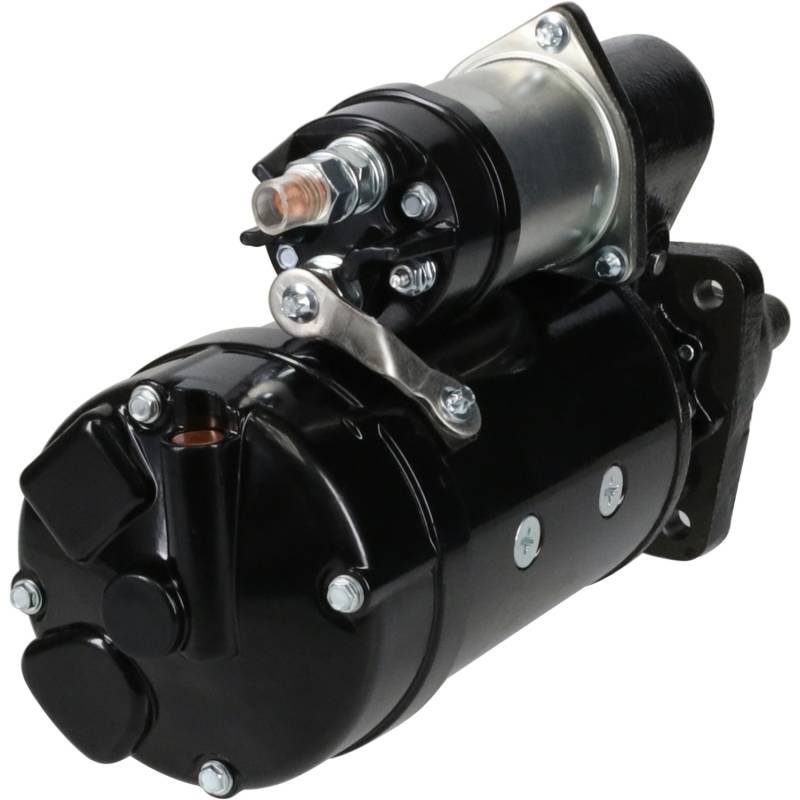

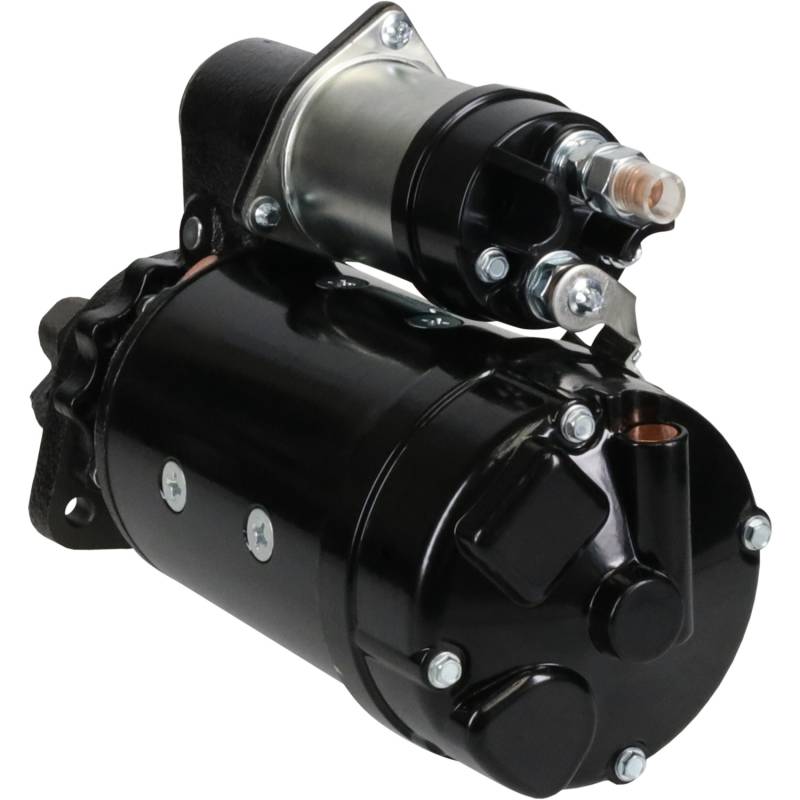

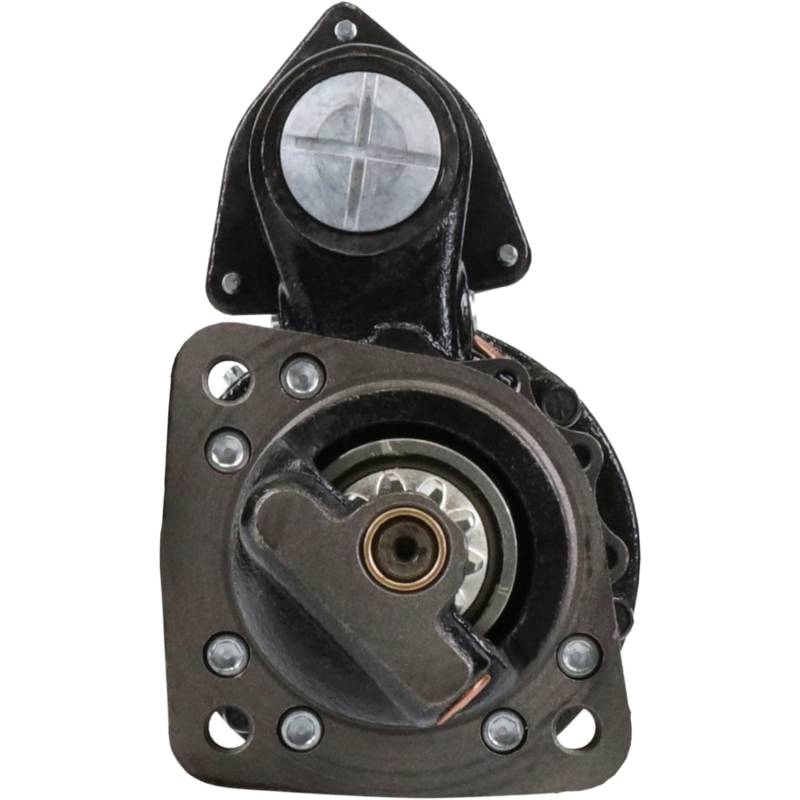

Starter Motor Compatible With Perkins 6-354 4-236 Industrial Diesel Engine Bobcat 843 853 943 970

EQUIPMENT APPLICATIONS:
• Bobcat 974 Skid Steer (Perkins 4-236 Diesel 1985)
• Clark C500 Lift Trucks (Perkins 6-354 Diesel 1986-1987)
• Clark CTD-30, CTD-40, CTD-50 Tow Tractors (Perkins 4-248 1985-1987)
• Clark IT60, IT80 (Perkins 4-248 1985-1986)
• International Hydro 84 (IHC D-256 Diesel 1978-1984)
• International TD-7E, TD-8E Crawlers (D-239/DT-239 1980-1985)
• Caterpillar D3B-SA (Cat 3204 Diesel 1985-1987)
• Massey Ferguson 230, 245, 285 Tractors; 510, 750, 860 Combines

OEM PART NUMBERS:
• AC Delco: 323-745, 323-837, 323-885
• Bosch: SR10009X
• Caterpillar: 10R0392, 369714, 690837
• Clark: 067005274
• Cummins: 3675164RX
• Delco: 10461003, 10461004, 10461225, 10461273, 10461303, 10478831, 1113391, 1113420, 1113421, 1113428, 1113431, 1113436, 1113441, 1113473, 1113496, 1113498, 1113499, 1990309, 1990318, 1990326, 1993705, 1993712, 1993726, 1993754, 1993769, 1993790, 1993792, 1993800, 1993881, 1993886
• Ford: F3HT-11001-BA, F3HZ-11002-C, F3HZ-11002-CRM, F3HZ-11V002-CRM
• Ford/New Holland: 9842667
• International: 739713C9, 739713C91
• John Deere: AR62267, AR77215, AR77254, AR78538, SE501444, SE501446, SE501452, TY1597, TY6618, TY6701, TY6710
• Massey Ferguson: 294-165-M91, 1903109M91, 1903109V91
• Motorcraft: SA-809

SPECIFICATIONS:
• Family: Delco 37MT
• Type: Direct Drive (DD)
• Voltage: 12V
• Power: 4.6kW / 6.17HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 37.9mm / 1.492"
• Length: 341.6mm / 13.449"
• Solenoid Position: 52°
• Mount Holes: 10.6mm ID Unthreaded (x3)
• Mounting Ear Distance 1: 106.1mm / 4.177"
• Mounting Ear Distance 2: 89.2mm / 3.512"
• Mounting Ear Distance 3: 89.2mm / 3.512"
• Registry OD: 88.8mm / 3.496"
• B+ Stud: 1/2-13
• S Terminal: 10-32 Threaded
• Housing Rotatable: Yes
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
