Piston Kit 85Mm 1Mm Over Compatible With Yamaha Exciter 135 1200 1998-1999 Exciter 270 1200

(0) Reviews: Write first review
010-826-07K*1
OEM PART NUMBERS:
• Yamaha 64X: 64X-11631-00-91 / 64X116310091
• Yamaha 65U: 65U-11631-00-89 / 65U116310089
• Yamaha 65U: 65U-11631-01-89 / 65U116310189
• Yamaha 65U: 65U-11631-02-90 / 65U116310290

SPECIFICATIONS:
• Kit Type: Piston Kit (piston, rings, wrist pin, circlips, bearing) per cylinder
• Bore Size: 85mm (+1mm Over) — Standard bore is 84.00mm
• Engine 1: Yamaha 64X 760cc 2-Cylinder 2-Stroke ~90HP
• Engine 2: Yamaha 65U 1196cc 3-Cylinder 2-Stroke Non-Power Valve ~135HP
• Both engines share 84mm standard bore — common piston application
• 760cc (64X): 2 pistons per engine / 1200cc (65U NPV): 3 pistons per engine
• Bore: Requires cylinder boring to 85mm before installation
• Source: Aftermarket / Weight: 2 lbs

YAMAHA 760 / 1200 APPLICATIONS:
• Wave Blaster 760 / Wave Raider 760 / Wave Runner 760 / Wave Venture 760 (1996-1998)
• XL 760 / GP 760 WaveRunner (1998-2000)
• GP 1200 / XL 1200 / SUV 1200 WaveRunner (1997-1999)
• Exciter 135 1200 / Exciter 270 1200 (1998-1999)
• LS 2000 1200 / LX 2000 1200 / LX 210 1200 / AR 210 1200 (1999-2005)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $146.35
Sale: $83.63
Save: 43%
Save: $62.72
Qty:
Free Shipping!

Description

YAMAHA 64X 760cc 2-CYL 2-STROKE (~90HP) — 85mm (+1mm Over, Std 84mm):
• Wave Blaster 760 Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1996-1997)
• Wave Raider 760 Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1996)
• Wave Runner 760 Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1997-1998)
• Wave Venture 760 Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1997)
• XL 760 WaveRunner Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1998-1999)
• GP 760 WaveRunner Yamaha 64X 760cc 2-Cyl 2-Stroke ~90HP (1999-2000)

YAMAHA 65U 1196cc 3-CYL NON-PV 2-STROKE (~135HP) — 85mm (+1mm Over, Std 84mm):
• GP 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1997-1999)
• XL 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1998)
• SUV 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1999)
• Exciter 135 1200 Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1998-1999)
• Exciter 270 1200 Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1998-1999)
• LS 2000 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (1999-2003)
• LX 2000 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (2002)
• LX 210 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (2003-2005)
• AR 210 1200 WaveRunner Yamaha 65U 1196cc 3-Cyl 2-Stroke Non-PV ~135HP (2003-2005)

DUAL-ENGINE KIT — KEY FACTS:
• 64X (760cc) and 65U (1200cc) both use 84mm standard bore → same 85mm (+1mm) piston
• 760cc models require 2 pistons per engine
• 1200cc Non-PV models require 3 pistons per engine
• 65U engine was used through 2005 (LS 2000, LX 210, AR 210) — not just 1997-1999

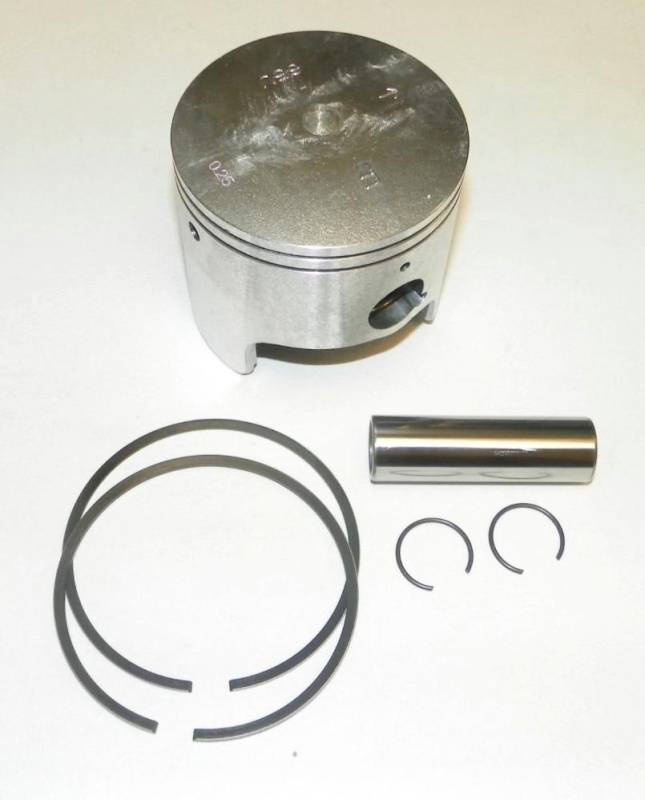

KIT CONTENTS (per cylinder):
• (1) Piston 85mm (+1mm), (1) Ring Set, (1) Wrist Pin, (1) Circlip Set, (1) Top End Bearing
