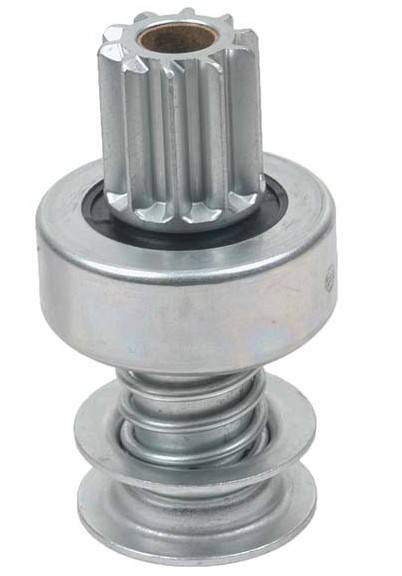

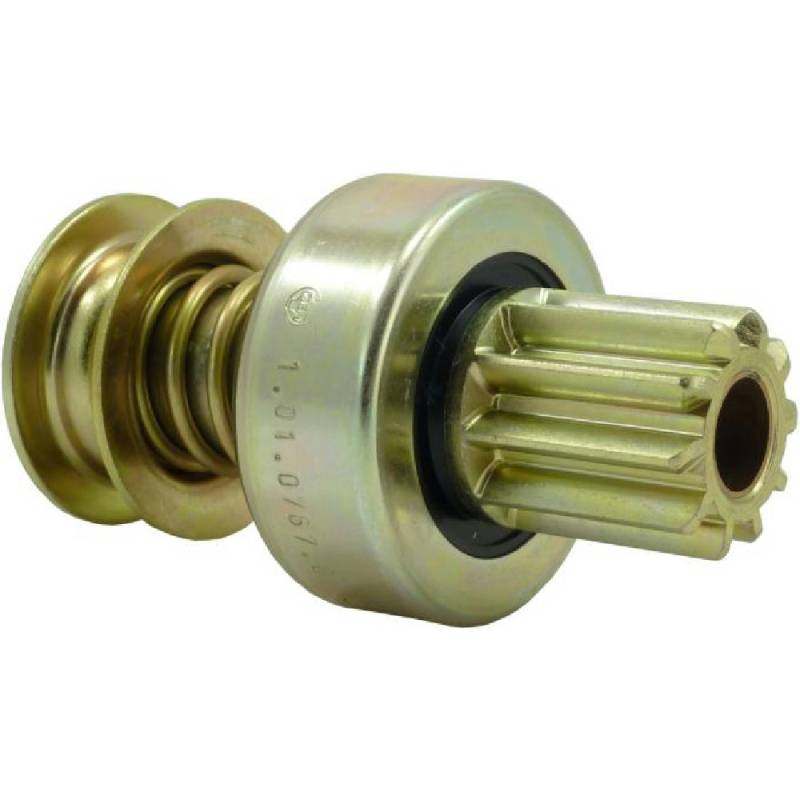

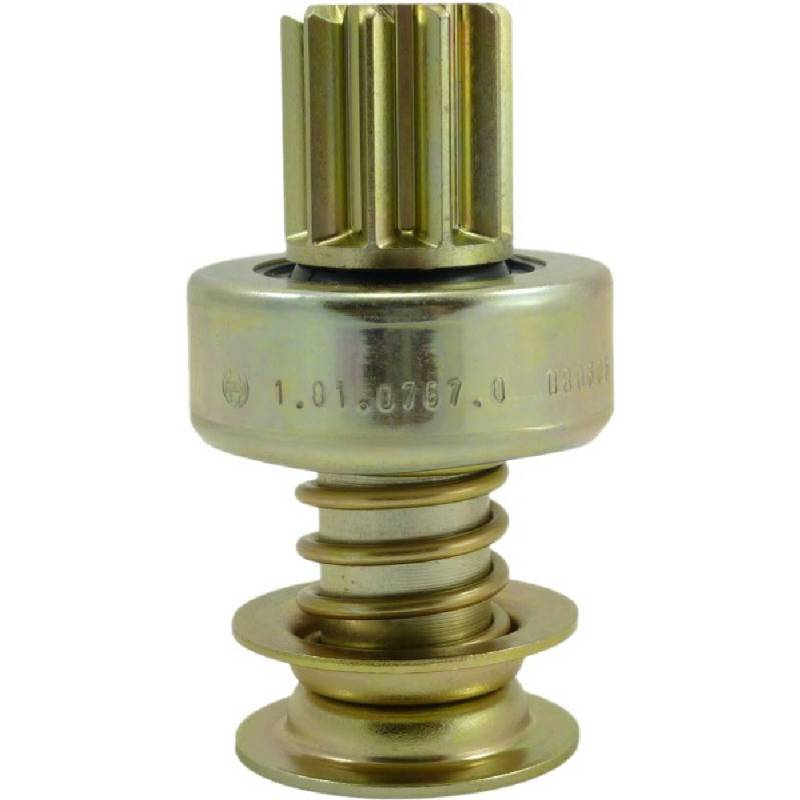

⚠️ 10 TOOTH CW ROLLER STARTER DRIVE, DRIVE ONLY:
• Roller clutch drive, 10 teeth, 32.1 mm (1.264 in) gear OD, 14.3 mm (0.563 in) ID
• 6 spiral splines, 106.1 mm (4.177 in) long, clockwise (CW), weather sealed
• For the Prestolite / Leece-Neville direct drive starter, 12V or 24V
• A starter with a 12 spline 86 mm drive (Delco 28MT) or a 13 tooth pinion takes a different drive
AM GENERAL HUMMER / HUMMER H1 (12V STARTER):
• AM General Hummer with the 6.2L V8 diesel 1992-1993
• AM General Hummer with the 6.5L V8 diesel 1994-2001
• Hummer H1 with the 6.5L V8 turbo diesel 2002-2004
MILITARY HMMWV / HUMVEE (24V STARTER):
• HMMWV M998 troop / utility carrier with the 6.2L V8 diesel
• HMMWV M998A1 troop / utility carrier with the 6.2L V8 diesel
• HMMWV M1038 troop / utility carrier with winch, 6.2L V8 diesel
• HMMWV M1038A1 troop / utility carrier with winch, 6.2L V8 diesel
• HMMWV M1097 heavy variant with the 6.2L V8 diesel
• HMMWV M1097A1 heavy variant with the 6.2L V8 diesel
• HMMWV M1097A2 heavy variant with the 6.5L V8 diesel
• HMMWV M1123 heavy variant with the 6.5L V8 diesel
• HMMWV M1025 armament carrier with the 6.2L V8 diesel
• HMMWV M1025A1 armament carrier with the 6.2L V8 diesel
• HMMWV M1025A2 armament carrier with the 6.5L V8 diesel
• HMMWV M1026 armament carrier with winch, 6.2L V8 diesel
• HMMWV M1026A1 armament carrier with winch, 6.2L V8 diesel
• HMMWV M1043 armament carrier with the 6.2L V8 diesel
• HMMWV M1043A1 armament carrier with the 6.2L V8 diesel
• HMMWV M1043A2 armament carrier with the 6.5L V8 diesel
• HMMWV M1044 armament carrier with winch, 6.2L V8 diesel
• HMMWV M1044A1 armament carrier with winch, 6.2L V8 diesel
• HMMWV M966 TOW carrier with the 6.2L V8 diesel
• HMMWV M966A1 TOW carrier with the 6.2L V8 diesel
• HMMWV M1045 TOW carrier with the 6.2L V8 diesel
• HMMWV M1045A1 TOW carrier with the 6.2L V8 diesel
• HMMWV M1045A2 TOW carrier with the 6.5L V8 diesel
• HMMWV M1046 TOW carrier with winch, 6.2L V8 diesel
• HMMWV M1046A1 TOW carrier with winch, 6.2L V8 diesel
• HMMWV M1121 TOW carrier with the 6.5L V8 diesel
• HMMWV M1167 TOW carrier with the 6.5L V8 turbo diesel
• HMMWV M1151 armament carrier with the 6.5L V8 turbo diesel
• HMMWV M1151A1 armament carrier with the 6.5L V8 turbo diesel
• HMMWV M1037 shelter carrier with the 6.2L V8 diesel
• HMMWV M1042 shelter carrier with winch, 6.2L V8 diesel
• HMMWV M996 ambulance with the 6.2L V8 diesel
• HMMWV M996A1 ambulance with the 6.2L V8 diesel
• HMMWV M997 ambulance with the 6.2L V8 diesel
• HMMWV M997A1 ambulance with the 6.2L V8 diesel
• HMMWV M997A2 ambulance with the 6.5L V8 diesel
• HMMWV M1035 soft top ambulance with the 6.2L V8 diesel
• HMMWV M1035A1 soft top ambulance with the 6.2L V8 diesel
• HMMWV M1035A2 soft top ambulance with the 6.5L V8 diesel
FORD MEDIUM / HEAVY TRUCKS, CUMMINS 5.9L WITH ALLISON AT545:
• Ford F600 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford F700 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford F800 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford F900 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford L6000 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford L7000 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford L8000 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford L9000 with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
FORD SCHOOL BUS CHASSIS, CUMMINS 5.9L WITH ALLISON AT545:
• Ford B600 school bus with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford B700 school bus with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
• Ford B800 school bus with the Cummins 5.9L (FD1060), Allison AT545 and Leece-Neville direct drive starter 1992-1999
