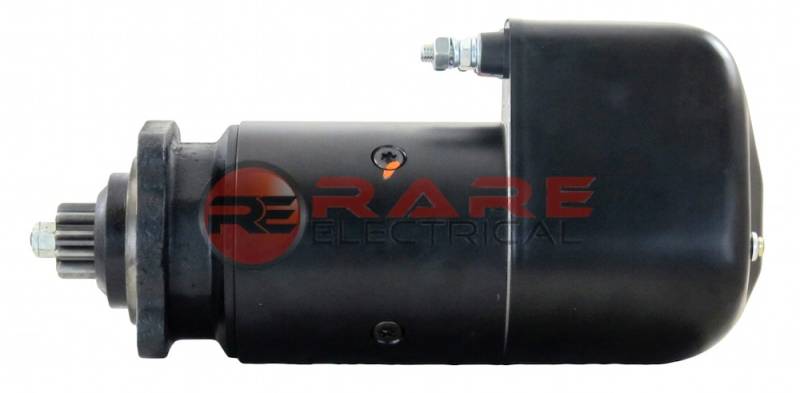

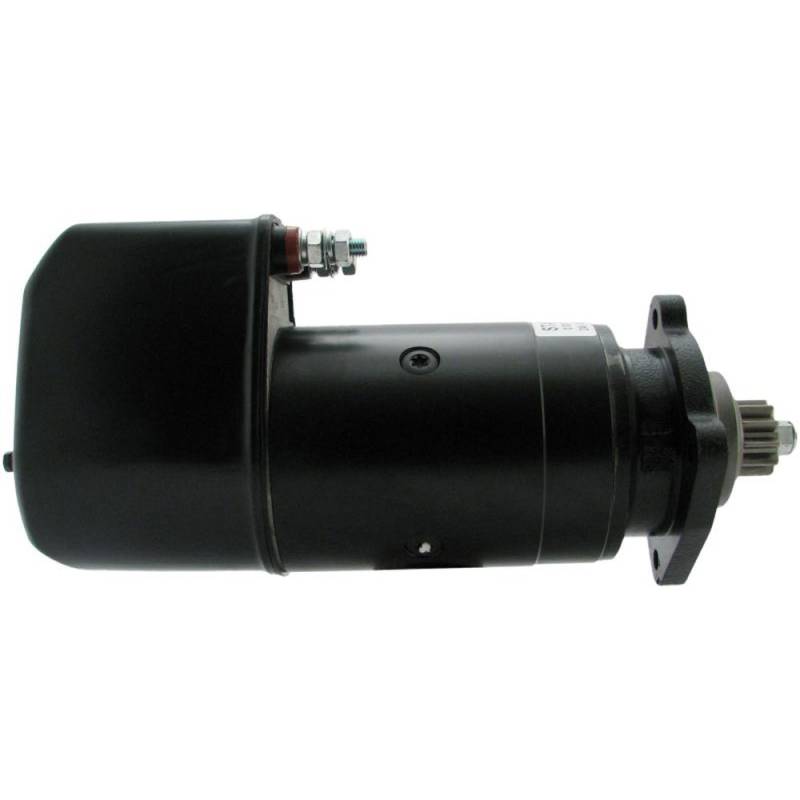

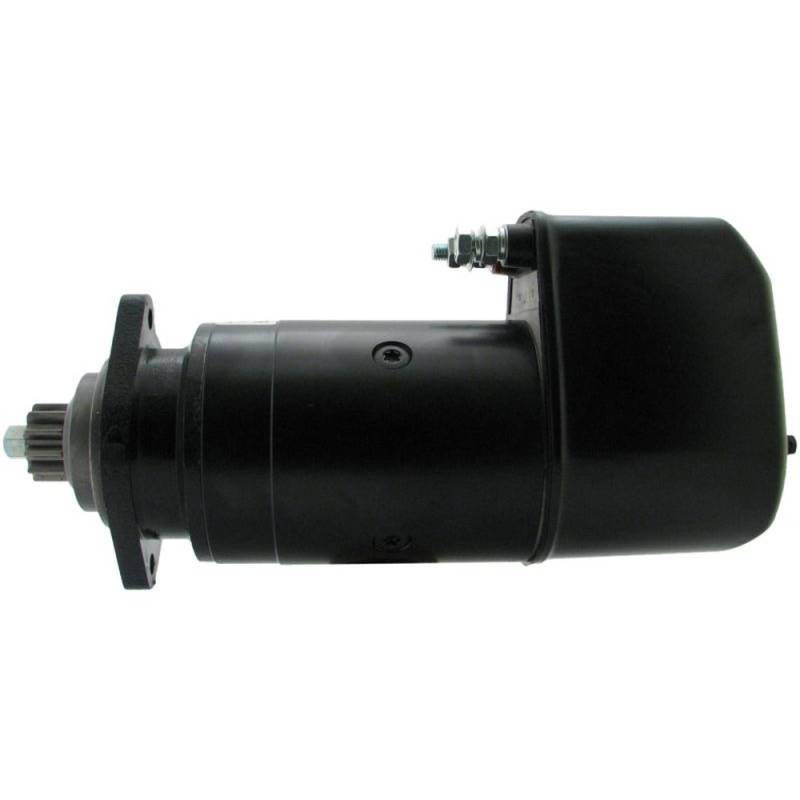

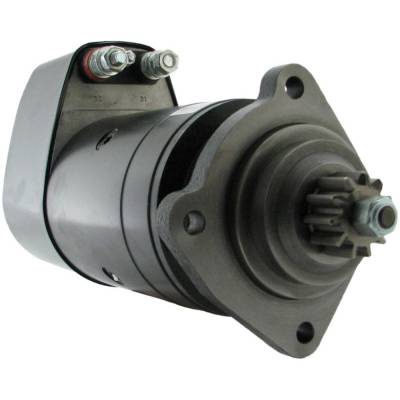

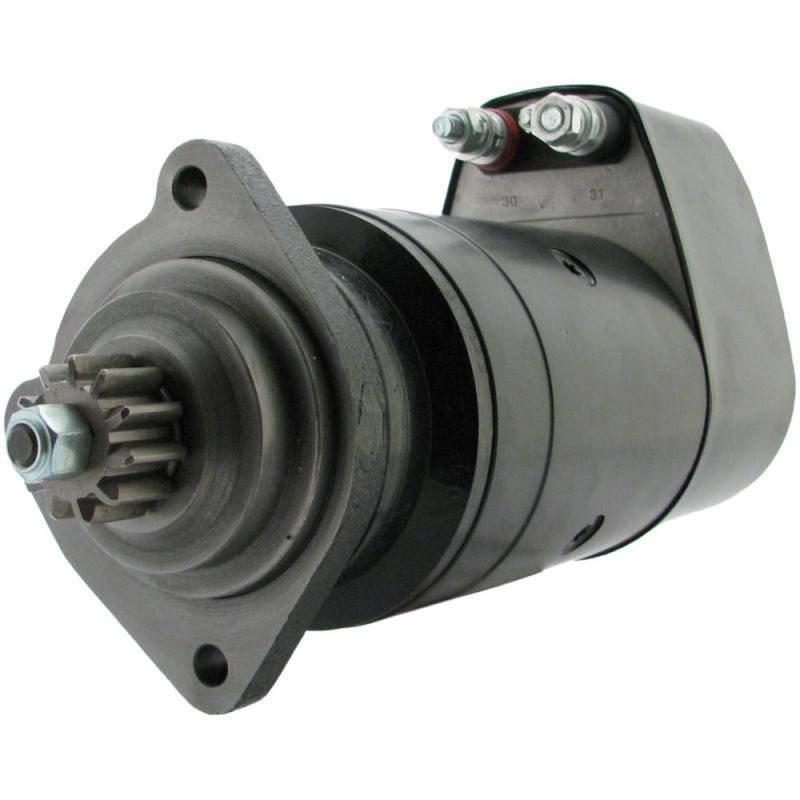

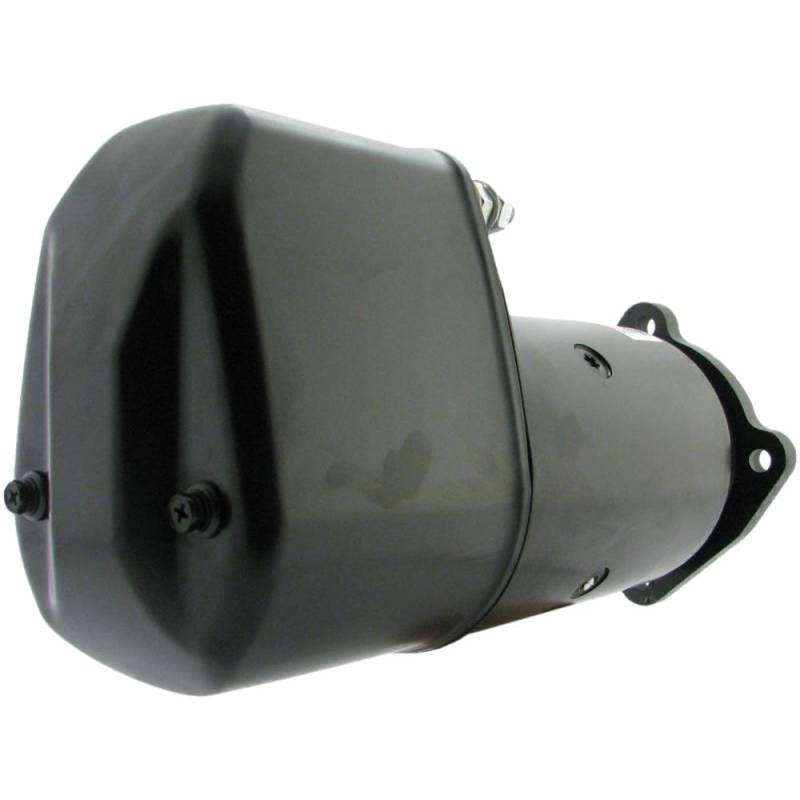

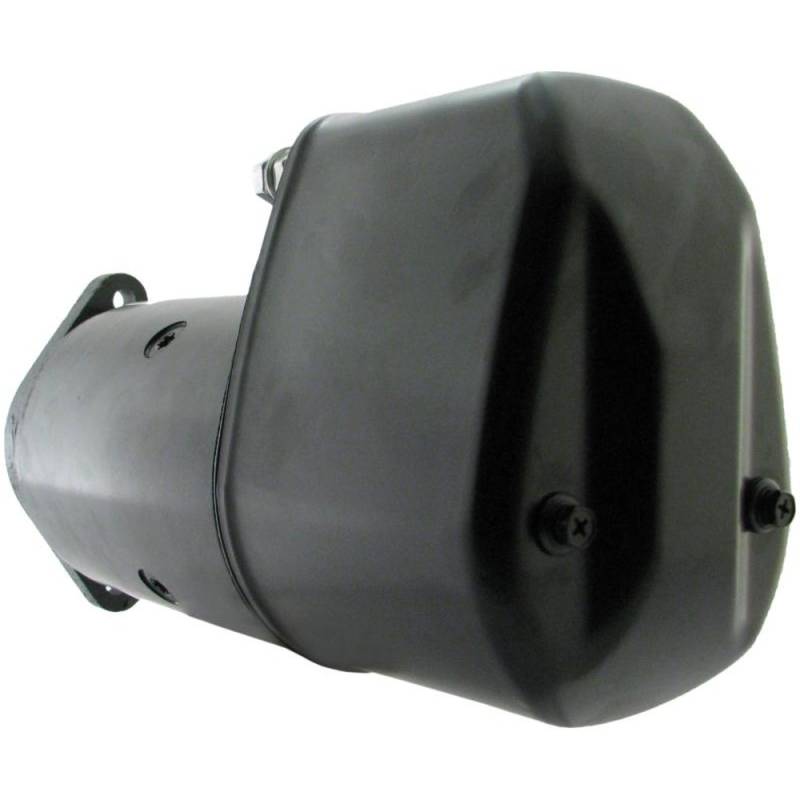

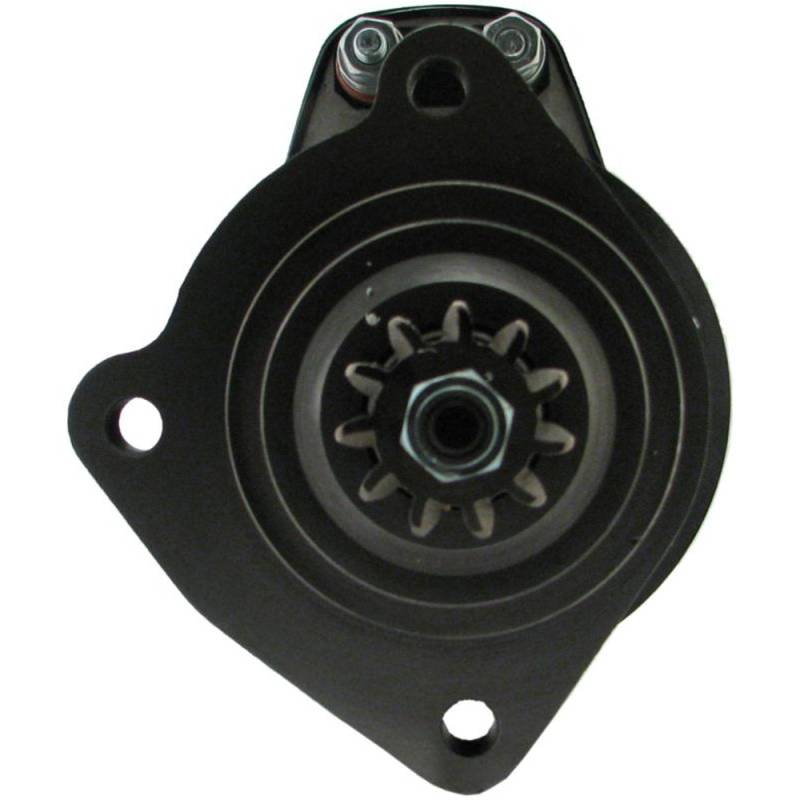

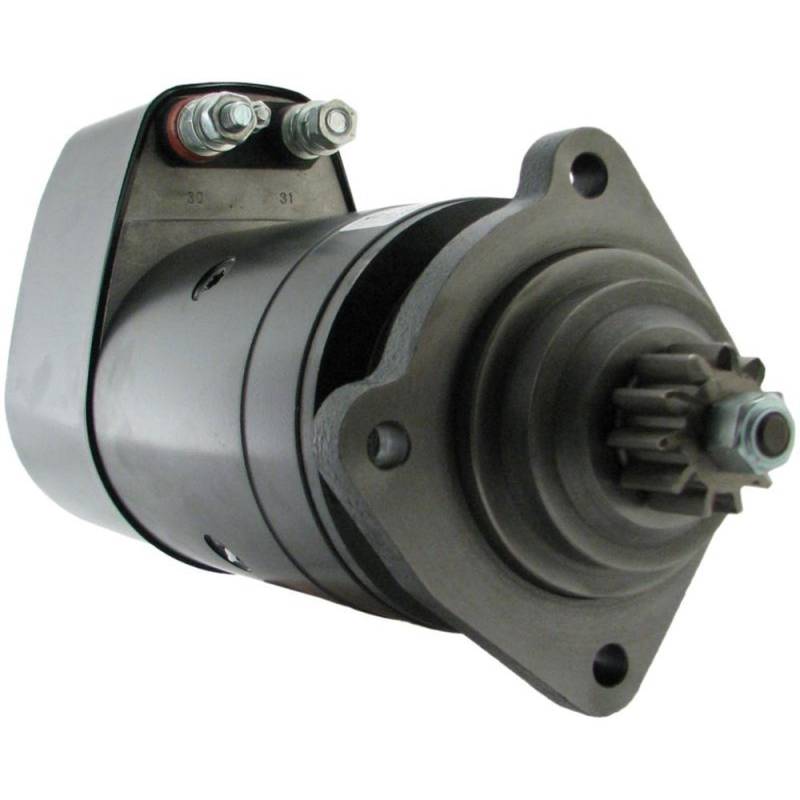

New 24 Volt 6.6Kw 11T Direct Drive Starter Motor Cw Compatible With Deutz F4l413 F6l413 F8l413

OEM PART NUMBERS:
• Bosch: 0-001-417-024 / 0001417024
• Deutz KHD: 0117-4647 / 01174647, 117-4647 / 1174647, 1173432, 1183037, 1183039
• Iskra Letrika: IS9079, 11.130.390 / 11130390, 11.131.586 / 11131586, 11.131.875 / 11131875, 11.139.088 / 11139088, AZG4653, AZG4682, AZK5440, AZL3634
• Bomag: 05710971
• International Harvester: B941506

SPECIFICATIONS:
• Type: Starter
• Voltage: 24V
• Output: 6.6kW
• Rotation: Clockwise (CW)
• Design: DD Direct Drive
• Pinion: 11T
• Gear Outside Diameter: 40.7mm / 1.602in
• Battery Stud: M10-1.5 Threaded
• Mounting Ear 1: 10.8mm Unthreaded
• Mounting Ear 2: 10.8mm Unthreaded
• Mounting Ear 3: 10.8mm Unthreaded
• Weight: 42.13 lb / 19.15 kg
• Engine: Deutz 413 series air-cooled V diesel, 125mm bore x 130mm stroke
• Polarity: Negative Ground
• Condition: New

APPLICATIONS:
• Deutz F4L413, F6L413, F6L413F, F6L413FW, F8L413 and F8L413F air-cooled V diesel
• TAM 110 T7B and 110 T7BV truck on the Deutz F4L413
• TAM 150 B7 and 150 B9VP truck on the Deutz F6L413
• Bomag equipment catalogued under 05710971
• International Harvester equipment catalogued under B941506

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
