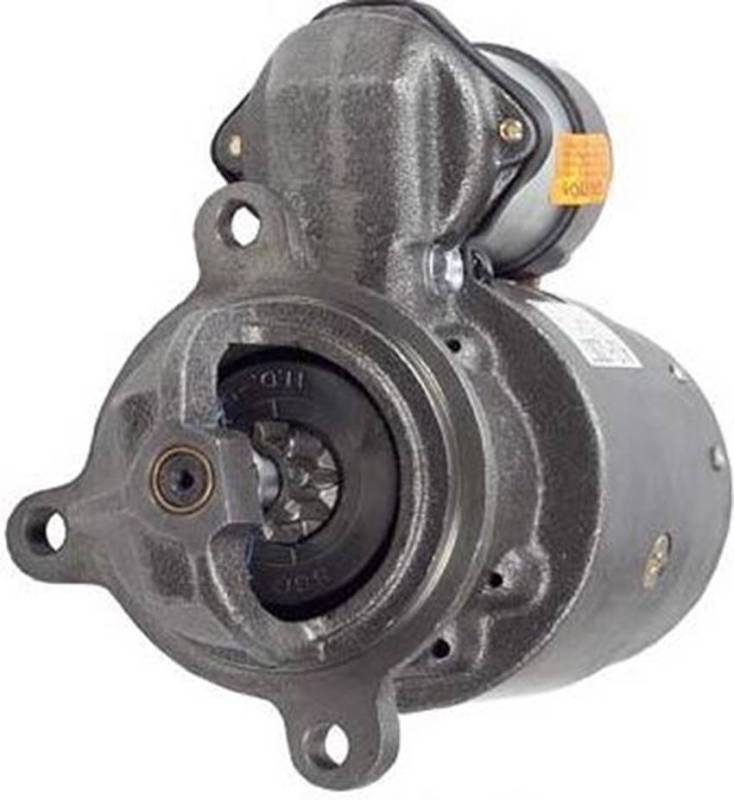

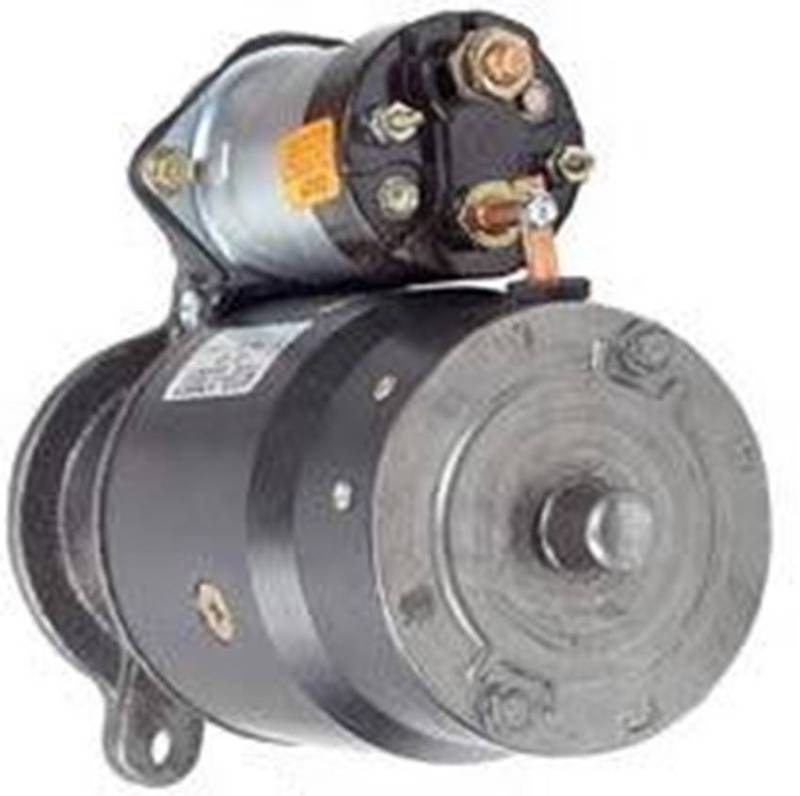

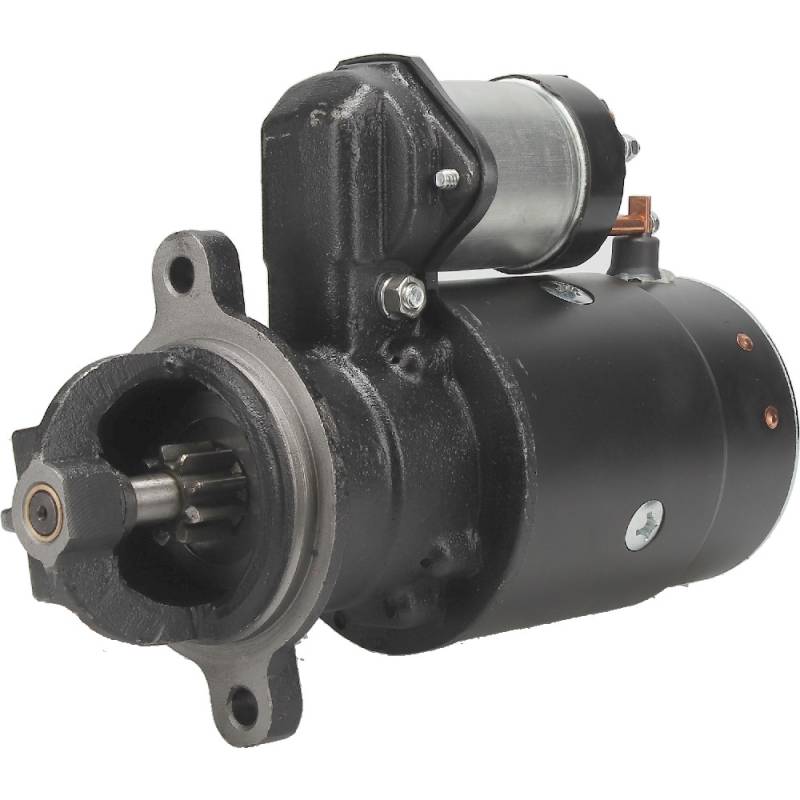

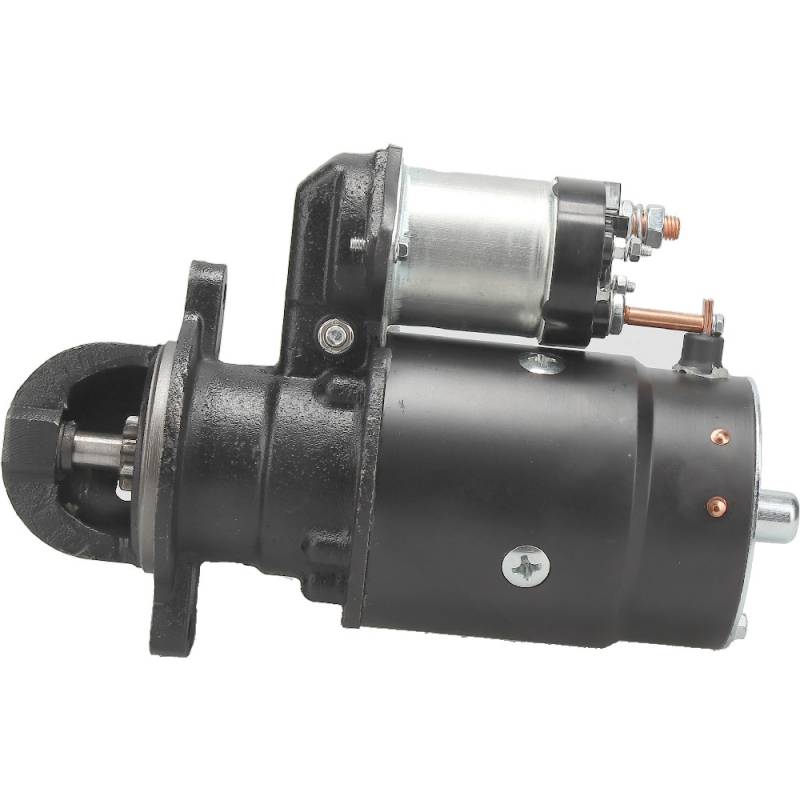

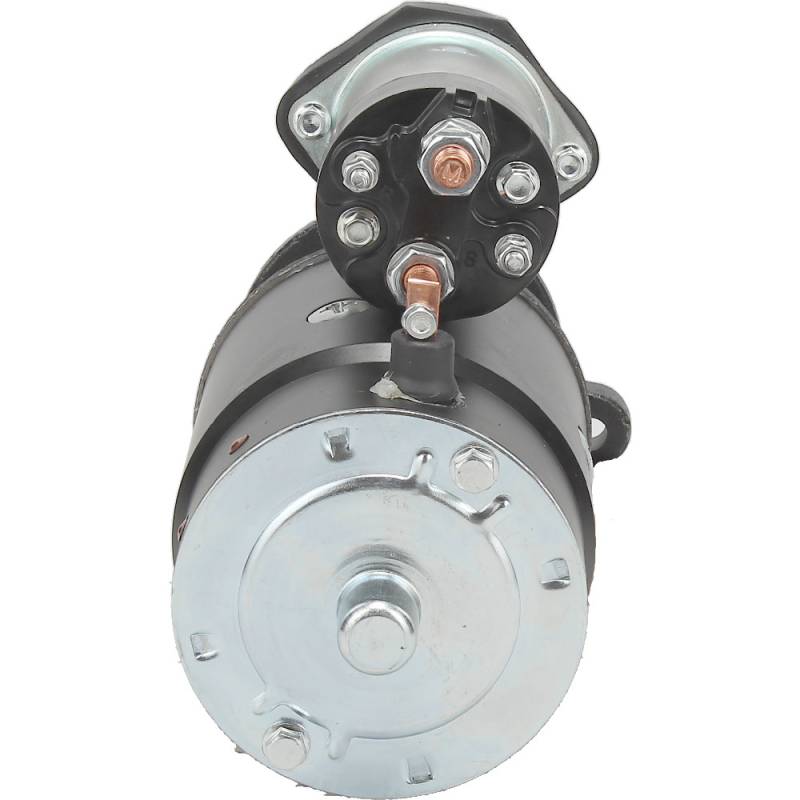

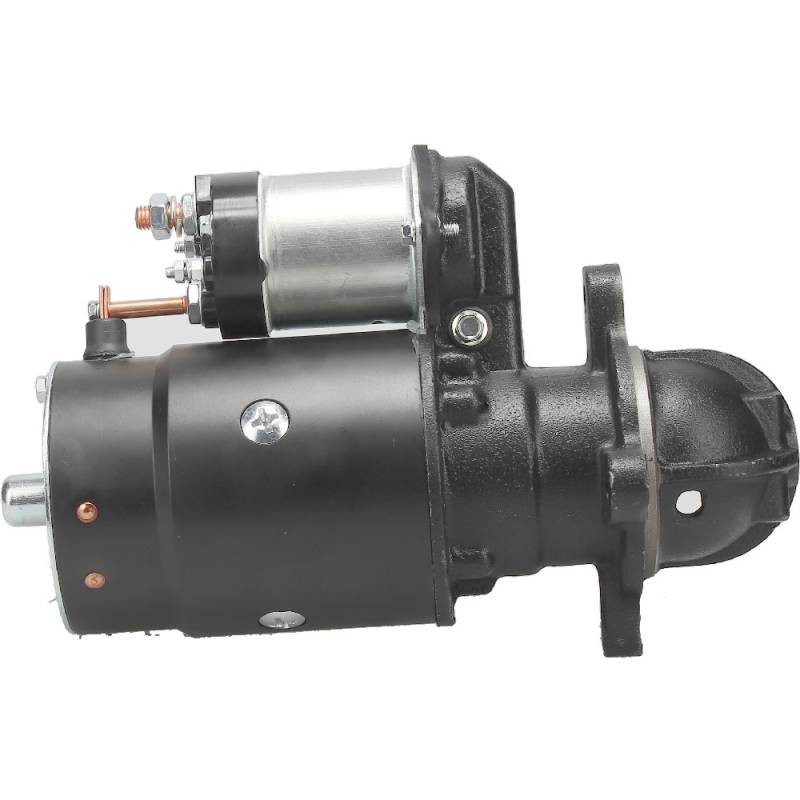

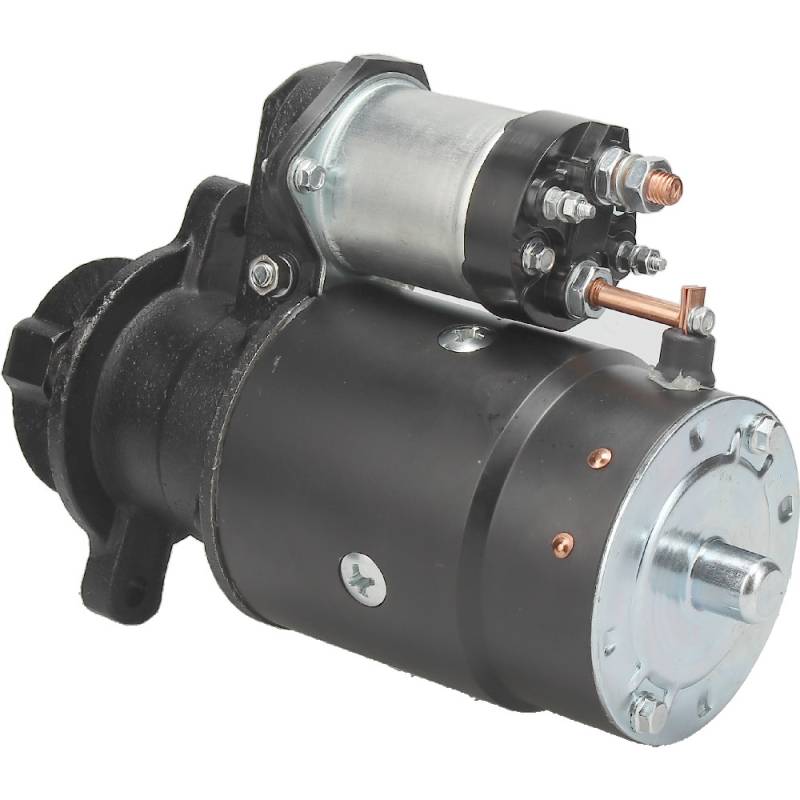

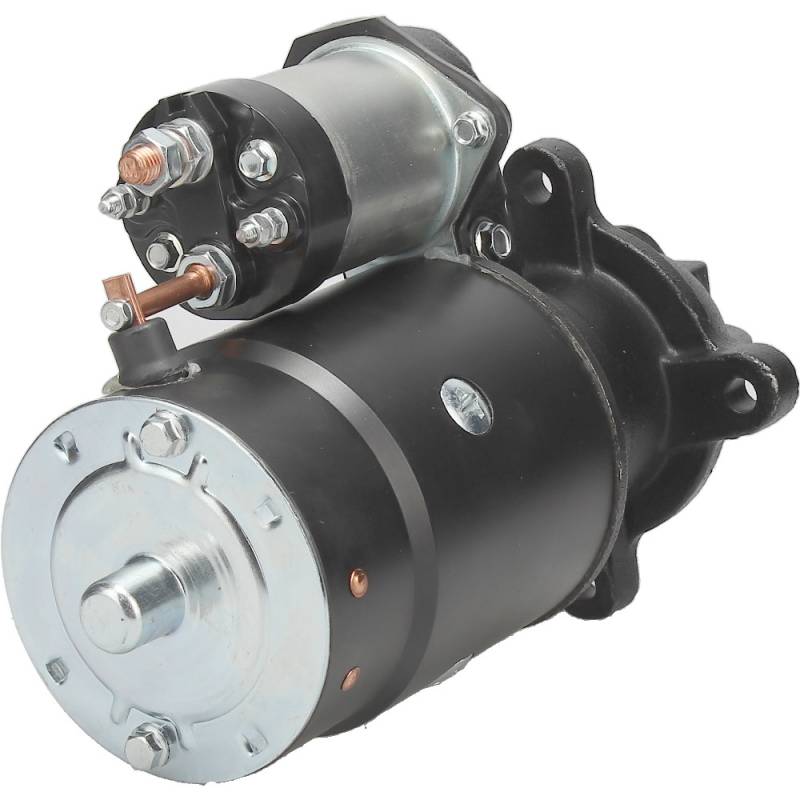

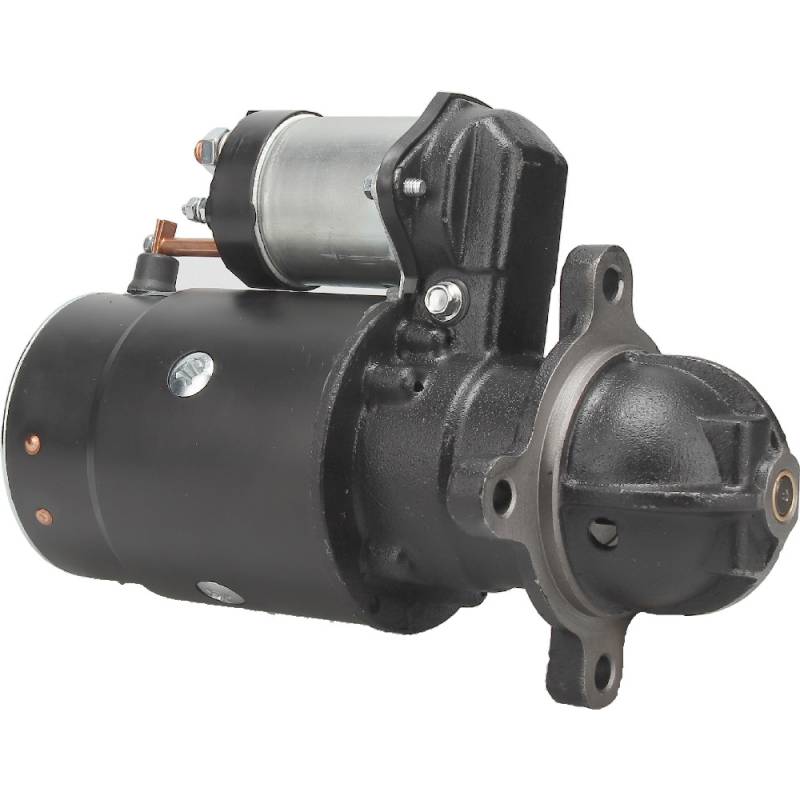

New Starter Motor Compatible With Clark Forklift C500-Y25 C500-Y30 C500-Y40 2200073-59 12301281

(0) Reviews: Write first review
4246C1
CLARK PART NUMBERS:
• 2355693
• 1636179

DELCO PART NUMBERS:
• 1109090
• 12301281
• 10455333
• 1107377

HYSTER PART NUMBERS:
• 3004552

TOWMOTOR PART NUMBERS:
• 971561

YALE PART NUMBERS:
• 2200073-59, 220007359

SPECIFICATIONS:
• Type: Delco 10MT direct drive (DD) starter
• Voltage: 12 Volt
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 10/12 pitch
• Gear OD: 29.2 mm (1.150 in)

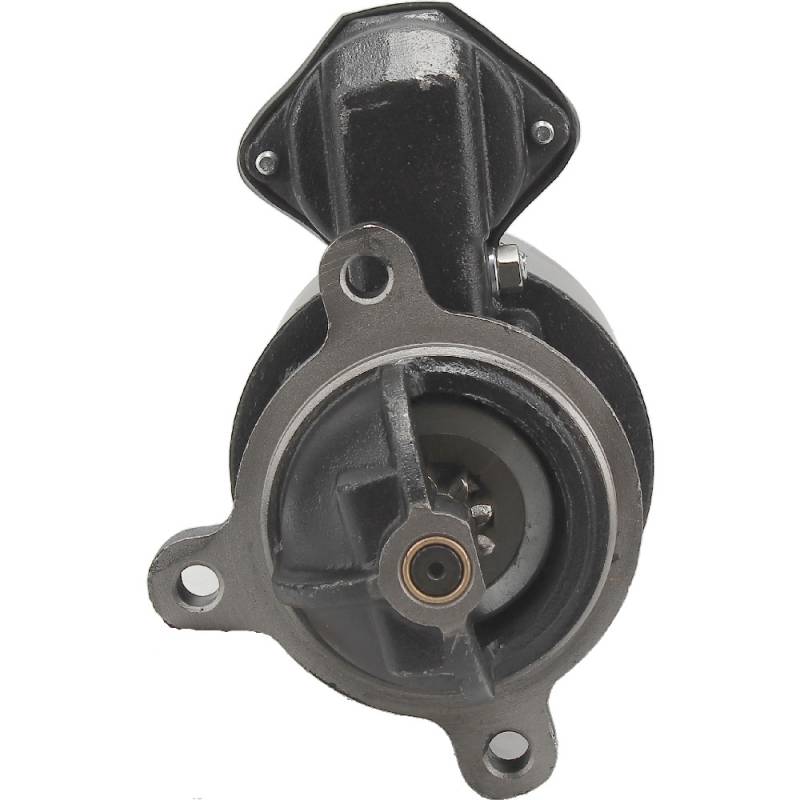

• Mounting: 3 ears, 0.420 in unthreaded holes, 2.500 in hole radius
• Solenoid position: 280 degree
• Weight: about 23.4 lb (10.65 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $370.56
Sale: $211.75
Save: 43%
Save: $158.81
Qty:
Free Shipping!

Description

⚠️ 12 VOLT DELCO 10MT DIRECT DRIVE STARTER, 9 TOOTH, CLOCKWISE, NEW:
• 12 volt Delco 10MT direct drive (DD), clockwise (CW) rotation, 9 tooth 10/12 pitch pinion, 29.2 mm (1.150 in) gear OD
• 3 mounting ears, 0.420 in unthreaded holes on a 2.500 in radius, 280 degree solenoid position, about 23.4 lb (10.65 kg)
• Gas and LP Continental and Waukesha engines; a 10 tooth or counterclockwise starter is a different part, count the teeth first

CLARK C500-Y20 / Y25 / Y30 LIFT TRUCKS:
• Clark C500-Y20 lift truck, Continental F-163, 1972-1986
• Clark C500-Y25 lift truck, Continental F-163, 1972-1986
• Clark C500-Y30 lift truck, Continental F-163, 1972-1986

CLARK C500-Y40 / Y45 / Y50 / Y55 LIFT TRUCKS:
• Clark C500-Y40 lift truck, Waukesha 176, 1977-1982
• Clark C500-Y45 lift truck, Waukesha 176, 1977-1982
• Clark C500-Y50 lift truck, Waukesha 176, 1977-1982
• Clark C500-Y55 lift truck, Waukesha 176, 1977-1982

CLARK C500-Y100 TO C500-Y150 LIFT TRUCKS:
• Clark C500-Y100 lift truck, Continental F-245, 1972-1986
• Clark C500-Y120 lift truck, Continental F-245, 1972-1981
• Clark C500-Y130 lift truck, Continental F-245, 1972-1981
• Clark C500-Y135 lift truck, Continental F-245, 1972-1981
• Clark C500-Y150 lift truck, Continental F-245, 1972-1981

CLARK C500-HY LIFT TRUCKS:
• Clark C500-HY40 lift truck, Waukesha 155 gas, 1972-1976
• Clark C500-HY45 lift truck, Waukesha 155 gas, 1972-1976
• Clark C500-HY50 lift truck, Waukesha 155 gas, 1972-1976
• Clark C500-HY55 lift truck, Waukesha 155 gas, 1972-1976
• Clark C500-HY40 lift truck, Waukesha 176, 1975-1976
• Clark C500-HY45 lift truck, Waukesha 176, 1975-1976
• Clark C500-HY50 lift truck, Waukesha 176, 1975-1976
• Clark C500-HY55 lift truck, Waukesha 176, 1975-1976
• Clark C500-HY60 lift truck, Continental F-245, 1972-1974
• Clark C500-HY70 lift truck, Continental F-245, 1972-1974
• Clark C500-HY80 lift truck, Continental F-245, 1972-1974

CLARK C500-S60 LIFT TRUCK:
• Clark C500-S60 lift truck, Waukesha 176, 1977-1981
