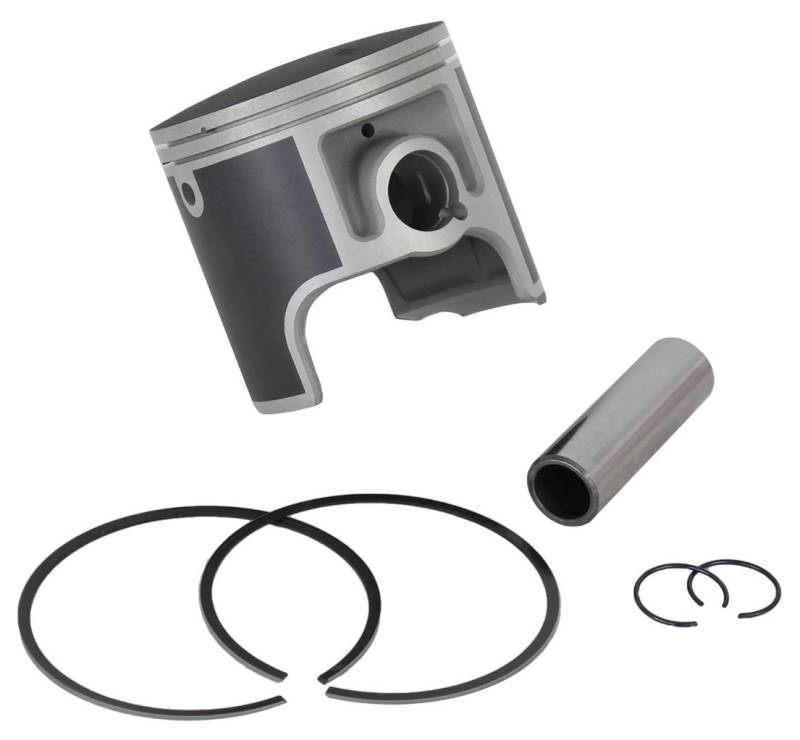

Piston Kit Compatible With 1993-2009 Yamaha Super Jet 700 Fx-1 Wave Blaster Wave Raider 700 1100

(0) Reviews: Write first review
010-827K*2
OEM PART NUMBERS (61X/62T/63M):
• Yamaha: 62T-11631-00-92 / 62T116310092
• Yamaha: 62T-11631-01-92 / 62T116310192
• Yamaha: 62T-11631-02-92 / 62T116310292
• Yamaha: 63M-11631-00-89 / 63M116310089

SPECIFICATIONS:
• Product Type: Piston Kit
• Bore Size: Standard — 81.00mm
• Piston-to-Wall Clearance: .004–.0045"
• Piston: Cast OEM Spec
• Engine Families: 701cc 2-Stroke Twin (61X/62T) AND 1051cc 2-Stroke Triple (63M)
• Bore × Stroke (both engines): 81.0mm × 68mm
• Standard bore — no cylinder boring required; light 400-grit hone
• 700cc: 2-Cylinder — 1 piston per kit (order 2 per engine)
• 1100cc: 3-Cylinder — 1 piston per kit (order 3 per engine)
• Weight: 2 lbs

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $139.81
Sale: $79.89
Save: 43%
Save: $59.92
Qty:
Free Shipping!

Description

YAMAHA SUPER JET 700 — STAND-UP PWC (1994-2009):
• Super Jet 701cc 61X 2-Cyl 2-Stroke ~63HP (1994-1995) — Single Carb
• Super Jet 701cc 62T/61X 2-Cyl 2-Stroke ~73HP (1996-2009) — Dual 38mm Mikuni
Stand-up PWC | Reed valve intake | CDI ignition | 121mm jet pump

YAMAHA FX-1 700 & PRO VXR 700 (1993-1995):
• FX-1 700 701cc 61X 2-Cyl 2-Stroke ~63HP (1994-1995) — Stand-Up
• Pro VXR 700 701cc 61X 2-Cyl 2-Stroke ~64HP @ 6250 RPM (1993-1994)
Single carb | Reed valve intake | Oil injection

YAMAHA WAVE BLASTER 700 (1993-1996):
• Wave Blaster 701cc 61X 2-Cyl 2-Stroke ~63HP (1993-1994) — Single Carb
• Wave Blaster 701cc 62T 2-Cyl 2-Stroke ~73HP (1995-1996) — Dual 38mm Mikuni

YAMAHA WAVE RAIDER 700 SERIES (1994-1995):
• Wave Raider 700 701cc 62T 2-Cyl 2-Stroke ~80HP @ 6250 RPM (1994-1995)
• Wave Raider Deluxe 700 701cc 62T 2-Cyl 2-Stroke (1995)
Dual 38mm Mikuni carbs | 155mm jet pump | Open-loop cooling

YAMAHA WAVE RUNNER III 700 (1994-1997):
• Wave Runner III 700 701cc 61X 2-Cyl 2-Stroke (1994-1995, 1997)
Sit-down PWC | Single carb | Oil injection

YAMAHA WAVE VENTURE 700 (1995-1998):
• Wave Venture 700 701cc 62T 2-Cyl 2-Stroke (1995-1996, 1998)
Touring PWC | Dual 38mm Mikuni carbs

YAMAHA XL 700 (1999-2004):
• XL 700 701cc 62T 2-Cyl 2-Stroke ~73HP (1999-2004)
Sit-down PWC | Dual 38mm Mikuni carbs

YAMAHA WAVE RAIDER 1100 (1995-1996) — 3-CYLINDER 1051CC:
• Wave Raider 1100 1051cc 63M 3-Cyl 2-Stroke ~110HP (1995-1996)
2-passenger sit-down PWC | Triple 38mm Mikuni carbs | 155mm jet pump

YAMAHA WAVE VENTURE 1100 (1996-1997) — 3-CYLINDER 1051CC:
• Wave Venture 1100 1051cc 63M 3-Cyl 2-Stroke ~110HP (1996-1997)
3-passenger touring PWC | Triple 38mm Mikuni carbs | 155mm jet pump

YAMAHA EXCITER 220 — JET BOAT (1996-1998):
• Exciter 220 1051cc 63M 3-Cyl 2-Stroke per engine (1996-1998)
5-passenger jet boat | Twin 63M engines = 220HP combined

ENGINE SPECIFICATIONS:
• 700cc: 701cc 2-Cyl 2-Stroke | Bore × Stroke: 81.0mm × 68mm | Engine: 61X or 62T
• 1100cc: 1051cc 3-Cyl 2-Stroke | Bore × Stroke: 81.0mm × 68mm | Engine: 63M
• Both share same 81mm bore — one piston fits all 700 and 1100 models
• Standard bore — no cylinder machining required; light 400-grit hone for seating
• Clearance: .004–.0045" | Compression: 7.2:1
