OEM PART NUMBERS:
• Yamaha: 63M-81800-00-00 / 63M818000000
• Yamaha: 63M-81800-00 / 63M8180000
• Yamaha: 63M81800
• Mitsuba: SM13453
SPECIFICATIONS:

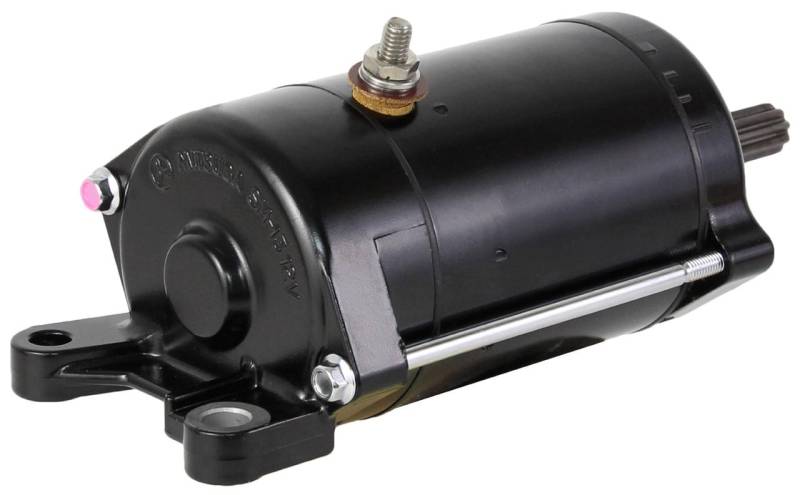

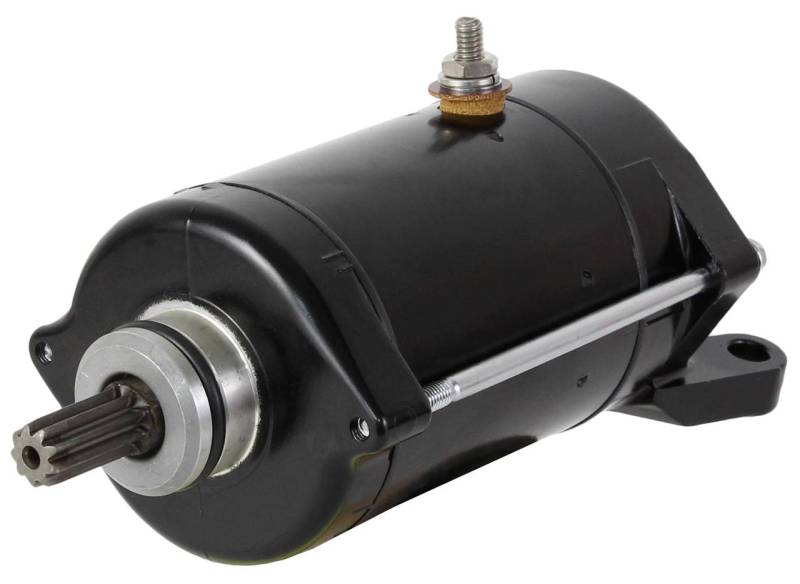

• Item Description: Starter Motor
• Unit Type: Yamaha / Mitsuba
• Starter Family: Mitsuba SM13
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12 Volts
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Pinion/Splines OD: 11.5mm / 0.453in
• Mounting Hole 1: 8.4mm ID Unthreaded
• Mounting Hole 2: 8.4mm ID Unthreaded
• Weight: 3.825 lbs / 1.74 kg
• Condition: New
YAMAHA PWC APPLICATIONS:
• GP1200/GP1200R WaveRunner 1176cc (1997-2002)
• GP1300R WaveRunner 1300cc (2003-2008)
• GP800 WaveRunner 784cc (1998-2005)
• RA1100 Wave Raider 1100cc (1995-1996)
• SUV1200 1176cc (1999-2004)
• WVT1100 Wave Venture 1100cc (1996-1997)
• XL800 WaveRunner 784cc (2000-2001)
• XL1200/XL1200 LTD WaveRunner 1176cc (1998-2000)
• XLT800 WaveRunner 784cc (2002-2004)
• XLT1200 WaveRunner 1176cc (2001-2005)
YAMAHA SPORT BOAT APPLICATIONS:
• AR210 (2003-2005), LS2000 (1999-2003), LX210 (2003-2005)
• LX2000 (2002), XR1800 (2000-2001), XRT1200 (2000-2001)
• LST1200 (1999-2005), Exciter 135/220/270 (1996-1999)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
