OEM PART NUMBERS:• Bosch: 0001107033, 0001107062, 0001107085, 0001108129
• Bosch: 0986019040
• Bosch Reman: SR5034N
• Valeo: D6RA22, D6RA52
• Valeo: 594085, 455634, 184646, 186215
• Lucas: LRS01190
• Lombardini: 5840133, 58401940, 58101330
• Magneti Marelli: 063521070620
• Mahle: MS455
SPECIFICATIONS:• Voltage: 12V
• Type: PMGR (Permanent Magnet Gear Reduction)
• Power: 1.1kW / 1.47HP
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 29.7mm / 1.169 Inch
• Mounting: 2 Ears, 10.5mm ID Unthreaded
• Weight: 6.8 lbs / 3.09 kg
• Condition: New
APPLICATION:• Lombardini LDW502 / LDW602 / LDW702 2-Cylinder Diesel
• Lombardini LDW903 / LDW1003 3-Cylinder Diesel
• Lombardini LDW1204 / LDW1204T / LDW1404 4-Cylinder Diesel
• Lombardini Marine LDW502M / LDW602M / LDW702M / LDW903M / LDW1003M / LDW1204M
• Kohler KDW502 / KDW702 / KDW1003 / KDW1404

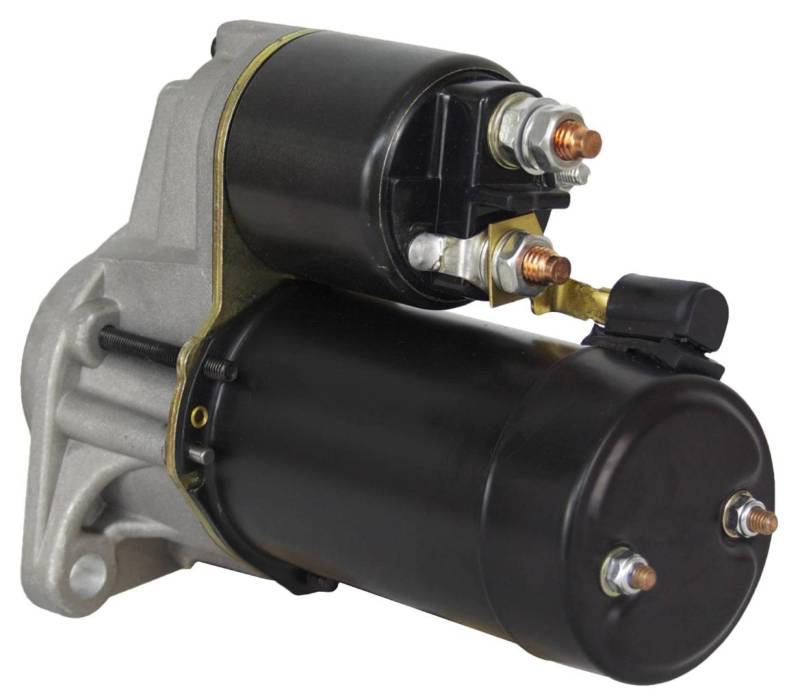

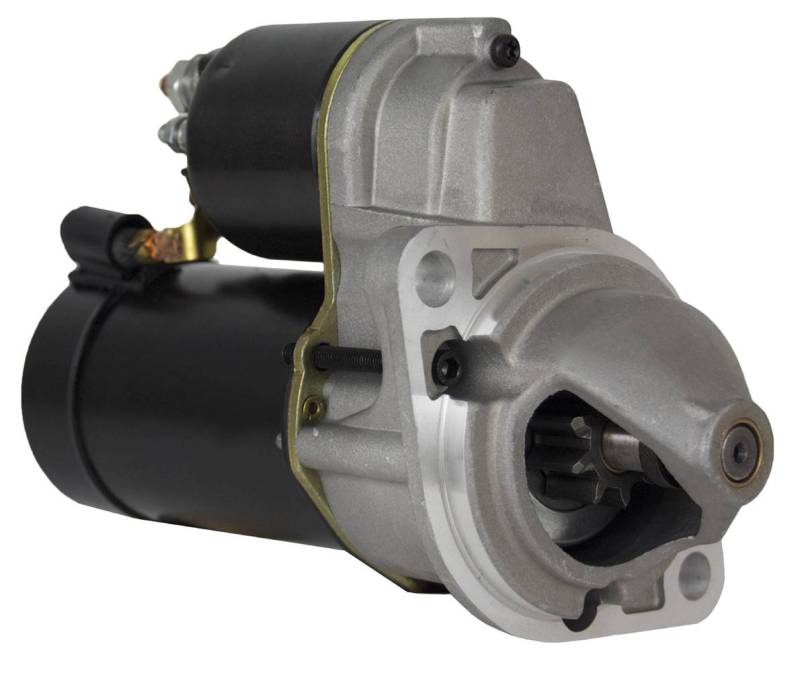

Starter Motor - Lombardini LDW1003 LDW1404 FOCS Diesel EngineNew 12V permanent magnet gear reduction starter motor for Lombardini and Kohler small diesel engines. 1.1kW output with 9-tooth pinion, clockwise rotation, and 29.7mm gear OD. Two-point mounting with 10.5mm unthreaded ears. Engineered for reliable starting in compact diesel applications including generators, pumps, and light industrial equipment. Replaces Valeo 594085, Lombardini 58401940, and Bosch 0001108129. Compatible with Lombardini LDW FOCS series, marine LDW M-series, and Kohler KDW diesel engines.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
