OEM PART NUMBERS:
• 19020608 / RA00104
• Pleasurecraft Marine: RA097007B / RA097007L
• 20115016TBA
• Indmar: 575010
AFTERMARKET CROSS REFERENCE:
• API Marine: 20113
• Arco Marine: 20825
• Sierra: 18-6288
SPECIFICATIONS:

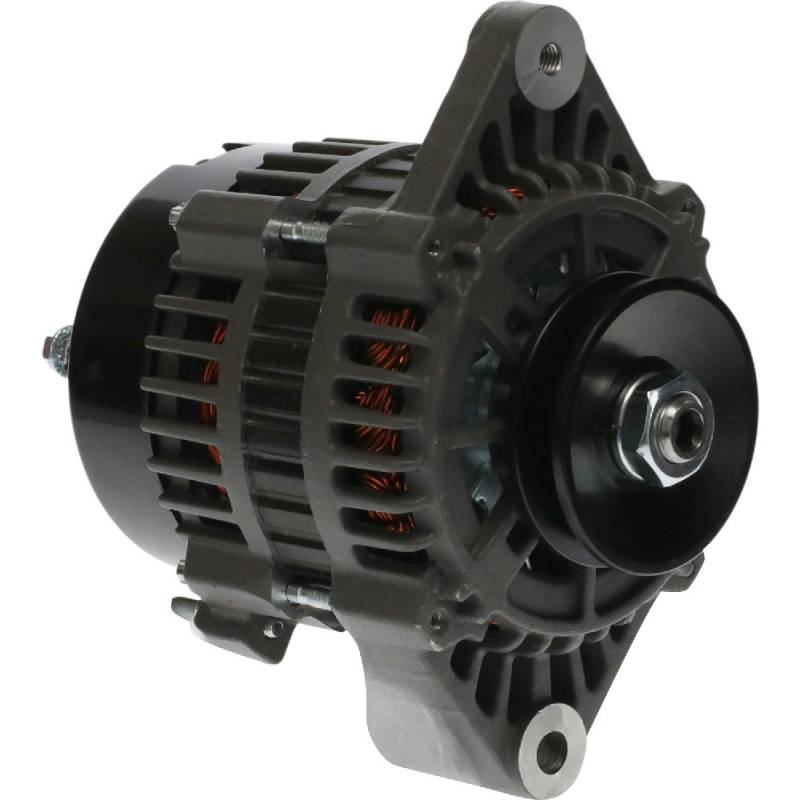

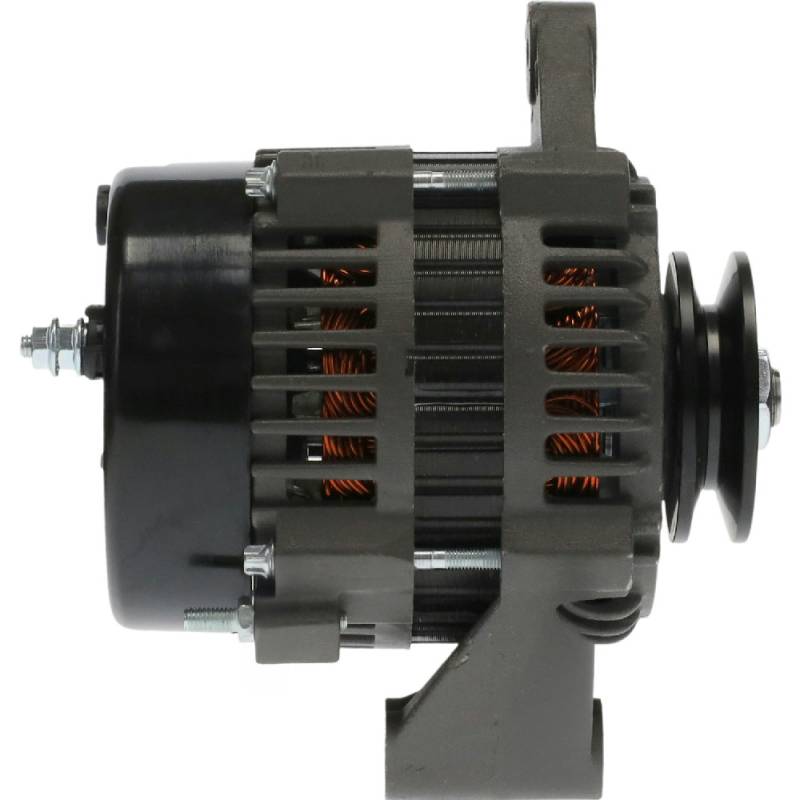

• Alternator Family: 7SI Series
• Design: IR/IF (Internal Regulator / Internal Fan)
• Voltage: 12V
• Amperage: 70A
• Rotation: CW (Clockwise)
• Pulley: 1-Groove V-Belt
• Regulator Clock: 12:00
• B+ Terminal: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 9mm Unthreaded
• Polarity: Negative
• Weight: 9.35 lbs / 4.25 kg
• Condition: New
CRUSADER / PLEASURECRAFT MARINE APPLICATIONS:
• Crusader 305 / 350 — GM V8 350CI 5.7L Inboard (2002-2004)
• Crusader 496 — GM V8 496CI 8.1L Inboard (2001-2004)
• Pleasurecraft 305CI 5.0L / 350CI 5.7L (2002-2005)
• Pleasurecraft 496CI 8.1L (2001-2004)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
