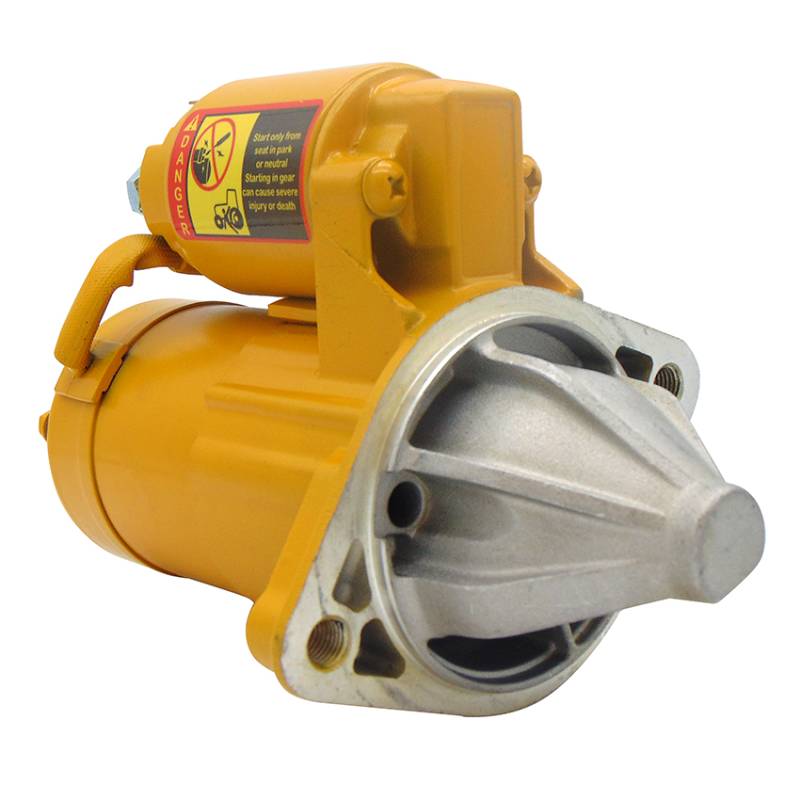

New OEM Starter Motor Compatible With Volvo Penta Ms2a-D Ms2a-E Ms2b-R Ms2l-D Ms2l-E 3803904

(0) Reviews: Write first review
3803904*3
VOLVO PENTA PART NUMBERS:
• 3803904
• 23140597
• 24539580
• 3840888
• 861845
• 3803437

MITSUBISHI PART NUMBERS:
• M2T47281
• M002T47281

PERKINS / ISHIKAWAJIMA PART NUMBERS (SAME STARTER):
• 185086540, 18508-6540
• 185086370, 18508-6370 (earlier number)

LUCAS PART NUMBERS:
• LRS02114, LRS2114

WILSON PART NUMBERS:
• 91-27-3330, 91273330

SPECIFICATIONS:
• Type: Mitsubishi direct drive (DD) starter with solenoid
• Voltage: 12 Volt
• Power: 0.8 kW
• Rotation: Clockwise (CW)
• Pinion: 8 teeth, 28.9 mm (1.138 in) OD
• Registry: 76.8 mm (3.024 in)

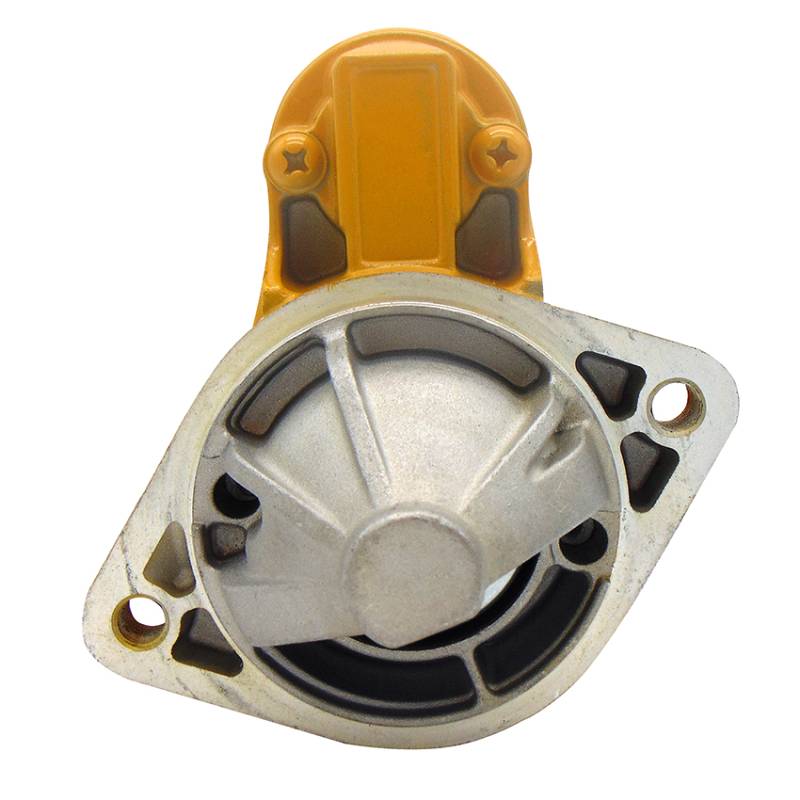

• Mounting: 2 threaded M10 x 1.25 mm holes, 104.6 mm (4.118 in) centers

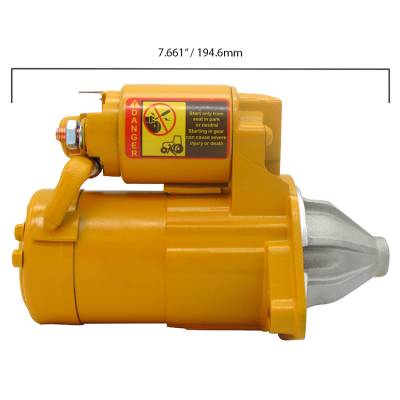

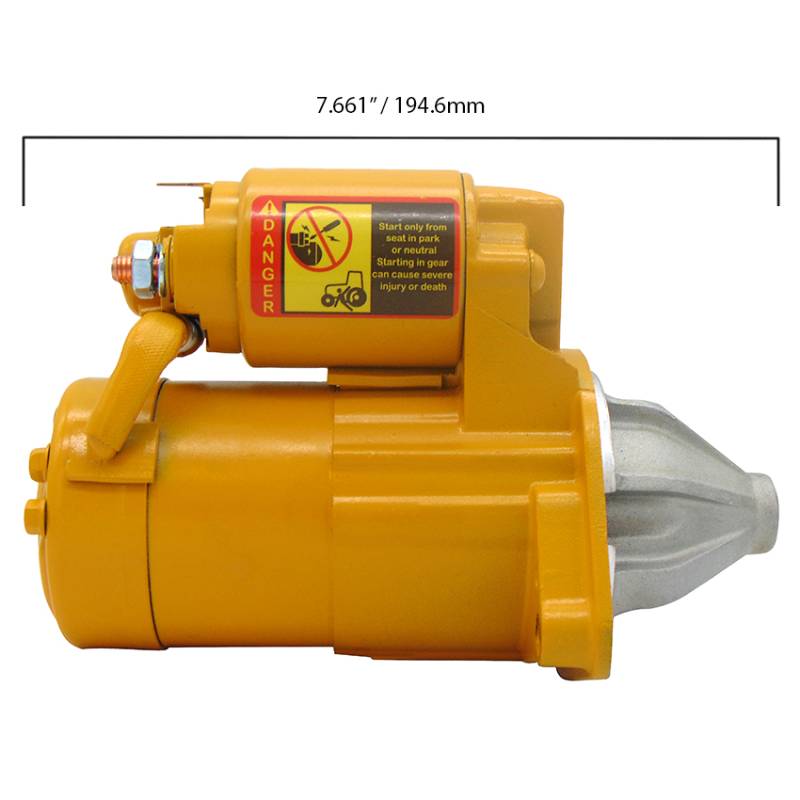

• Body length: 136 mm (5.354 in)
• Terminals: M8 battery stud, spade S terminal
• Weight: 8.25 lb (3.75 kg)
• Condition: New

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $268.92
Sale: $153.67
Save: 43%
Save: $115.25
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 0.8 KW 8 TOOTH CW MITSUBISHI DIRECT DRIVE STARTER, NEW:
• 12V, 0.8 kW, clockwise, Mitsubishi direct drive (DD) with solenoid
• 8 tooth pinion, 28.9 mm (1.138 in) gear OD, 76.8 mm registry
• Two M10-1.25 threaded mounting holes on 104.6 mm centers, M8 battery stud, spade S terminal
• 8.25 lb (3.75 kg), new
• D1-30, D2-40 and MD2030 engines take a 9 tooth starter, not this unit

VOLVO PENTA D1-13 MARINE DIESEL, 2 CYLINDER 0.51L:
• Volvo Penta D1-13 2005-2006
• Volvo Penta D1-13A 2005-2006
• Volvo Penta D1-13B 2006-2008
• Volvo Penta D1-13F 2008-2014

VOLVO PENTA D1-20 MARINE DIESEL, 3 CYLINDER:
• Volvo Penta D1-20 2005-2006
• Volvo Penta D1-20A 2005-2006
• Volvo Penta D1-20B 2006-2008
• Volvo Penta D1-20F 2008-2014

VOLVO PENTA D1-13 / D1-20 WITH SAILDRIVE OR REVERSE GEAR:
• Volvo Penta D1-13 / D1-20 with the 130S saildrive 2005-2014
• Volvo Penta D1-13 / D1-20 with the MS10A reverse gear 2005-2014
• Volvo Penta D1-13 / D1-20 with the MS10L reverse gear 2005-2014
• Volvo Penta D1-13 / D1-20 with the MS15A reverse gear 2005-2014
• Volvo Penta D1-13 / D1-20 with the MS15L reverse gear 2005-2014

VOLVO PENTA MD2010 MARINE DIESEL, 2 CYLINDER 7.5 KW:
• Volvo Penta MD2010 1993-1994
• Volvo Penta MD2010A 1993-1994
• Volvo Penta MD2010B 1994-1998
• Volvo Penta MD2010C 1998-2000
• Volvo Penta MD2010D 2000-2005

VOLVO PENTA MD2020 MARINE DIESEL, 3 CYLINDER 13.8 KW:
• Volvo Penta MD2020 1993-1994
• Volvo Penta MD2020A 1993-1994
• Volvo Penta MD2020B 1994-1998
• Volvo Penta MD2020C 1998-2000
• Volvo Penta MD2020D 2000-2005

VOLVO PENTA MD2010 / MD2020 WITH SAILDRIVE OR REVERSE GEAR:
• Volvo Penta MD2010 / MD2020 with the 120S-D saildrive 1993-2005
• Volvo Penta MD2010 / MD2020 with the 120S-E saildrive 1993-2005
• Volvo Penta MD2010 / MD2020 with the MS2A-D reverse gear 1993-2005
• Volvo Penta MD2010 / MD2020 with the MS2A-E reverse gear 1993-2005
• Volvo Penta MD2010 / MD2020 with the MS2B-R reverse gear 1993-2005
• Volvo Penta MD2010 / MD2020 with the MS2L-D reverse gear 1993-2005
• Volvo Penta MD2010 / MD2020 with the MS2L-E reverse gear 1993-2005
