CROSS-REFERENCE PART NUMBERS:
• Bombardier: 515-176-754 / 515-176-858 / 515-177-389
• Bombardier: 515-176-784 / 515-177-047
• Denso: 428000-6330 / 428000-7010 / 428000-7011

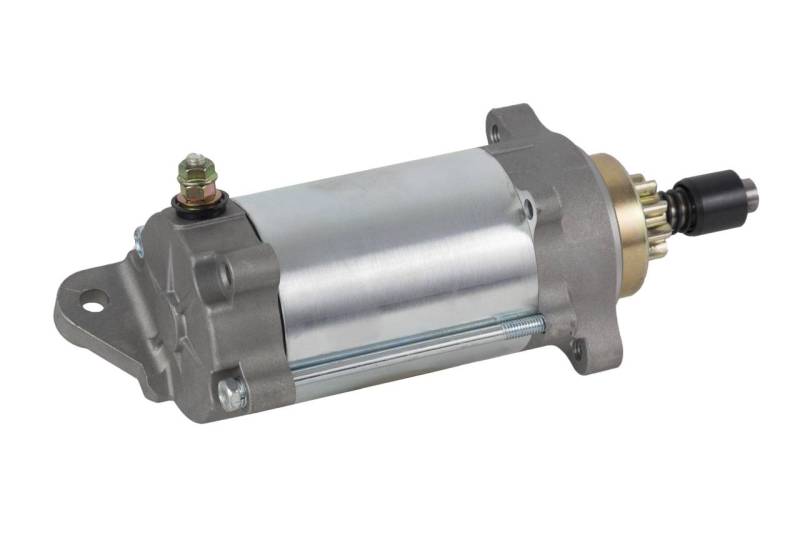

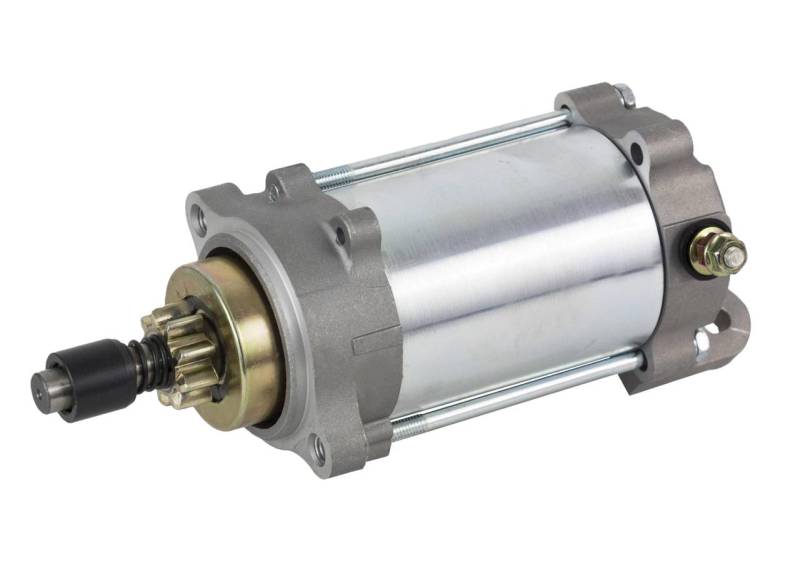

SPECIFICATIONS:
• Type: Denso PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 1.142in / 29mm
• Length: 6.484in / 164.7mm
• Mounting Ear 1: M8x1.25 Threaded
• Mounting Ear 2: M8x1.25 Threaded
• Mounting Ear 3: 8.5mm x 10.8mm Slotted
• Center to Center: 3.122in / 79.3mm
• Registry OD: 2.362in / 60mm
• B+ Stud: M6
• Weight: 5.2 lbs / 2.36 kg
• Condition: New
APPLICATION:
• Ski-Doo Snowmobiles 550-800cc (2009-2019)
• Lynx Snowmobiles 550-800 (2008-2016)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
