Top End Rebuild Kit 81.25Mm .25Mm Over Compatible With Yamaha Wave Raider 1100 1995-1996 Wave

OEM PART NUMBERS:
• Yamaha 63M: 63M-11631-00-89 / 63M116310089
• Yamaha 62T (cross-ref): 62T-11631-00-92 / 62T116310092
• Yamaha 62T (cross-ref): 62T-11631-01-92 / 62T116310192
• Yamaha 62T (cross-ref): 62T-11631-02-92 / 62T116310292

SPECIFICATIONS:

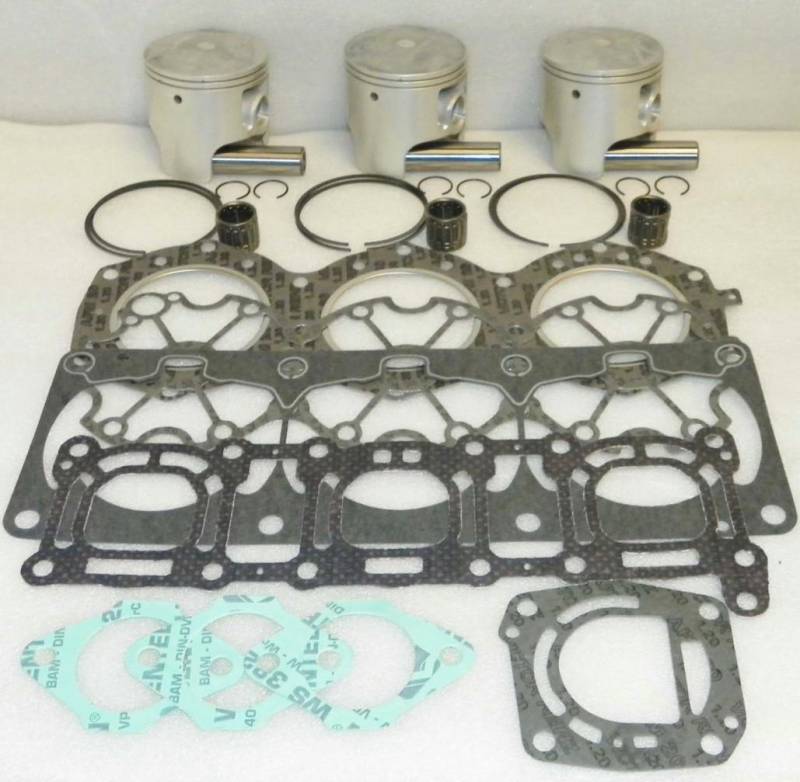

• Kit Type: Top End Rebuild Kit (pistons + rings + pins + bearings + circlips + ALL gaskets)
• Engine: Yamaha 63M ~1050cc 3-Cylinder 2-Stroke ~110HP
• Bore Size: 81.25mm (+.25mm Over) — Standard bore is 81.00mm
• Quantity: Kit covers all 3 cylinders (3 pistons, 3 ring sets, etc.)
• Gaskets Included: Head, Base, Exhaust, Intake — all gaskets for top-end rebuild
• Source: Aftermarket / Weight: 6 lbs

YAMAHA 1100 63M APPLICATIONS:
• Wave Raider 1100 WaveRunner (1995-1996)
• Wave Venture 1100 WaveRunner (1996-1997)
• Exciter 220 1100 Jet Boat (1996-1997) — TWO engines, 2 kits per boat

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
