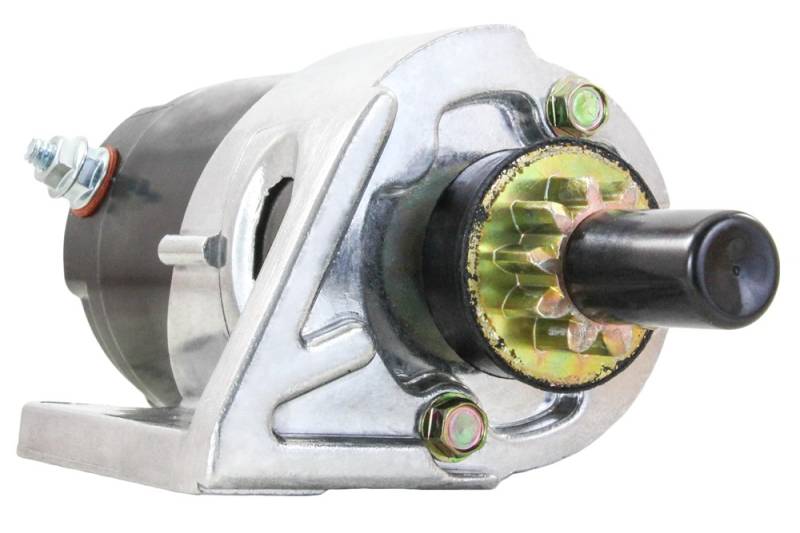

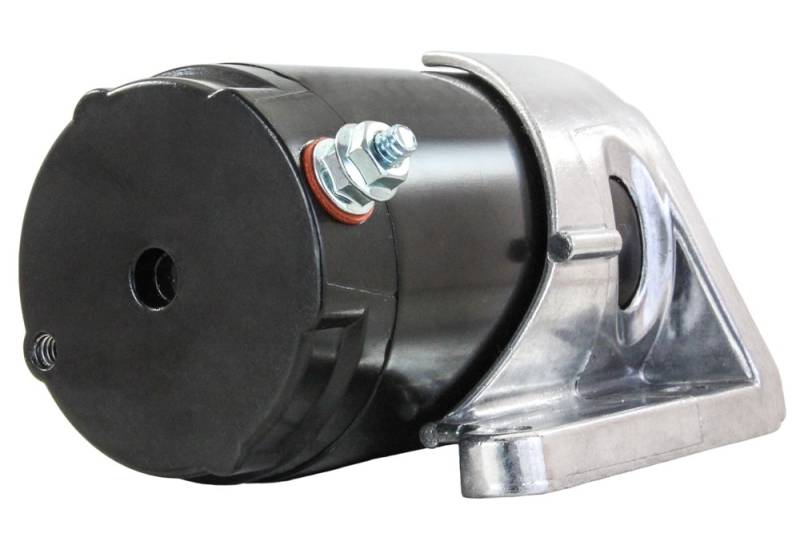

12 Volt Pmdd Starter Motor Compatible With Kohler Air-Cooled K-321 14Hp K-341 16Hp K-301 12Hp K-241

5760*2
KOHLER PART NUMBERS:
• 45-098-10, 4509810
• 45-098-10-S, 4509810S, 4509810-S
• 41-098-10, 4109810
• A236292, A-236292
• A236292S, A-236292-S
• A237132, A-237132
• B237132, B-237132
• A237511, A-237511

UT PART NUMBERS:
• 0599540, 0599540-M030SM, 0599540MO30SM
• 5665740, 5665740-M030SM, 5665740-MO30SM, 5665740MO30SM

JOHNSON ELECTRIC PART NUMBERS:
• SM05995
• SM56657
• SMH12A3
• SMH12A5
• SME12A13

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive), Bendix drive
• Voltage: 12 volt
• Rotation: CCW
• Pinion: 10 tooth, gear OD 32.2 mm (1.268 in)
• Mount: low mount, two unthreaded ears, 10.0 mm ID
• Field case length: 87.6 mm (3.45 in)
• Engines: Kohler K-241 10HP, K-301 12HP, K-321 14HP, K-341 16HP single cylinder cast-iron L-head
• Weight: 2.49 kg (5.485 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $161.72
Sale: $92.41
Save: 43%
Save: $69.31
Qty:
Free Shipping!

Description

KOHLER K-SERIES ENGINES (LOW MOUNT ELECTRIC START):
• Kohler K-241 10HP single cylinder cast-iron L-head, 23.9 cu in (391 cc), 3.25 in bore x 2.875 in stroke, K241S
• Kohler K-301 12HP single cylinder cast-iron L-head, 29.07 cu in, 3.375 in bore x 3.25 in stroke, K301S
• Kohler K-321 14HP single cylinder cast-iron L-head, 31.27 cu in, 3.5 in bore x 3.25 in stroke, K321S
• Kohler K-341 16HP single cylinder cast-iron L-head, 35.89 cu in, 3.75 in bore x 3.25 in stroke, K341S
• Kohler K-211 single cylinder 4-cycle air-cooled

CASE AND INGERSOLL GARDEN TRACTORS (KOHLER K-SERIES):
• Case Ingersoll 220, 222, 224 garden tractors with Kohler K-series
• Case Ingersoll 442, 444, 446 garden tractors with Kohler K-series

CUB CADET GARDEN TRACTORS:
• Cub Cadet 147 with the Kohler K-321 14HP
• Cub Cadet 149 with the Kohler K-321 14HP
• Cub Cadet 169 with the Kohler K-341 16HP

OTHER KOHLER K-SERIES EQUIPMENT:
• Caterpillar equipment with Kohler K-series 10HP to 16HP engines
• Welders, gensets and compressors with Kohler K-series 10HP to 16HP engines

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive), Bendix drive
• Voltage: 12 volt
• Rotation: CCW
• Pinion: 10 tooth, gear OD 32.2 mm (1.268 in)
• Mount: low mount, two unthreaded ears, 10.0 mm ID
• Field case length: 87.6 mm (3.45 in)
• Engines: Kohler K-241 10HP, K-301 12HP, K-321 14HP, K-341 16HP single cylinder cast-iron L-head
• Weight: 2.49 kg (5.485 lb)
• Condition: New aftermarket
