OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133
SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New
APPLICATION:
• Isuzu 3AB1 Engine — Agricultural and Industrial
• Isuzu 4FE1 Engine — Forklift and Material Handling
• Lift trucks FD9 through FD25 and FD9Z through FD25Z
• 12V 1.4kW Denso OSGR, 9-tooth CW

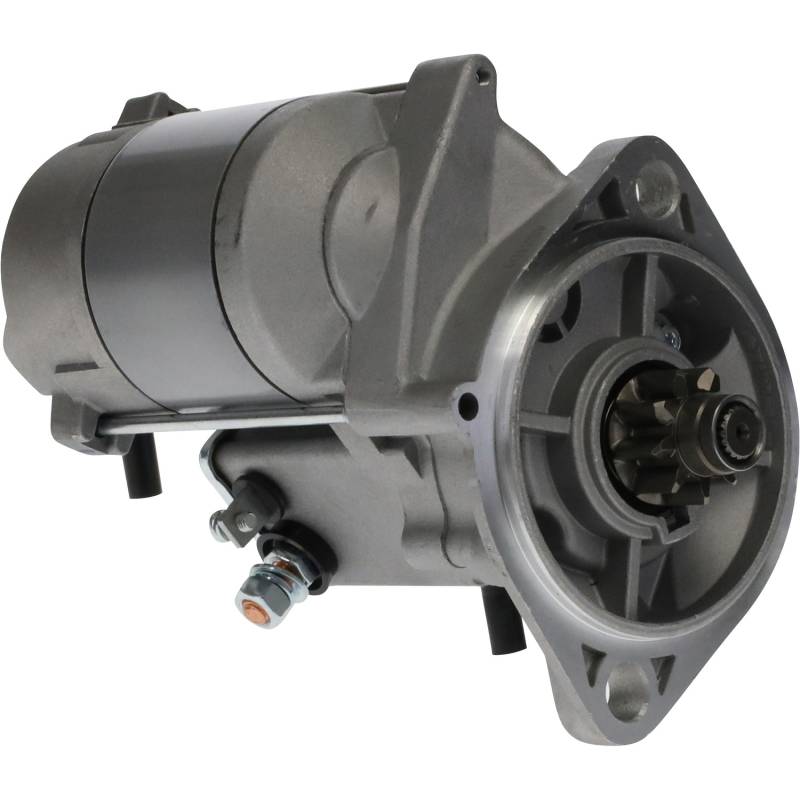

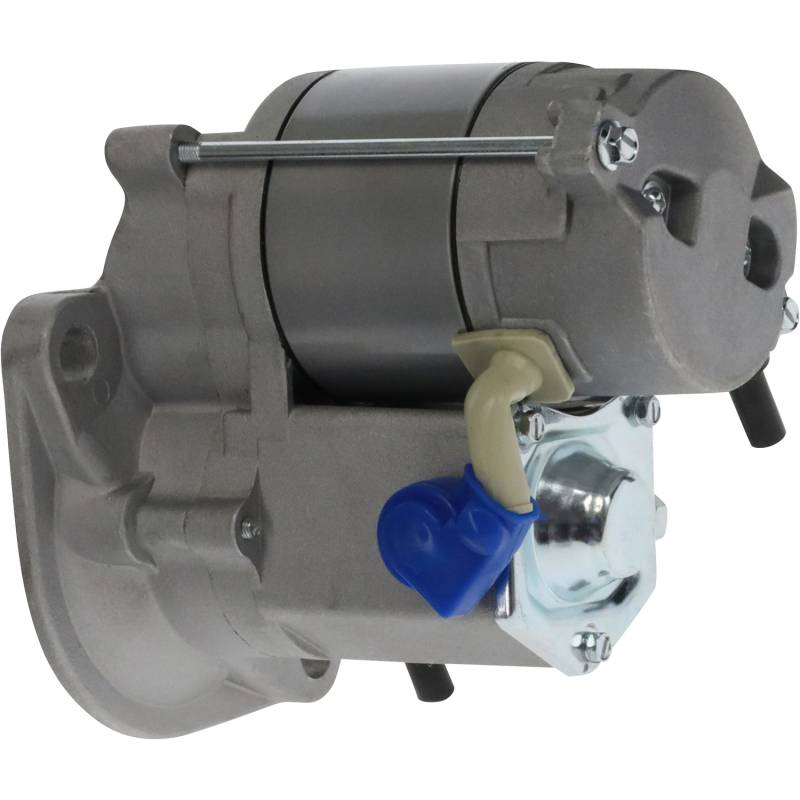

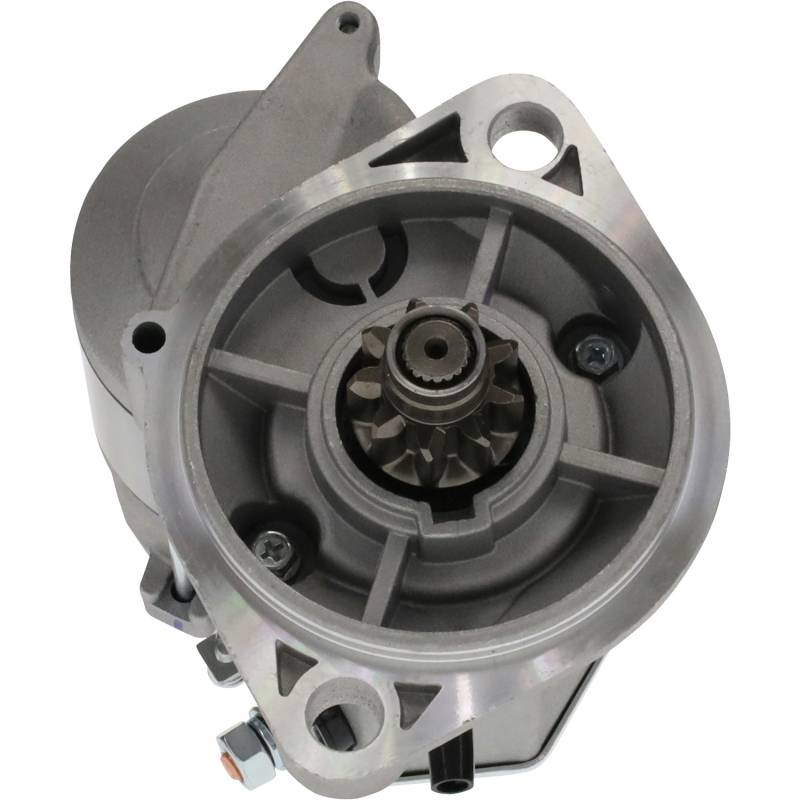

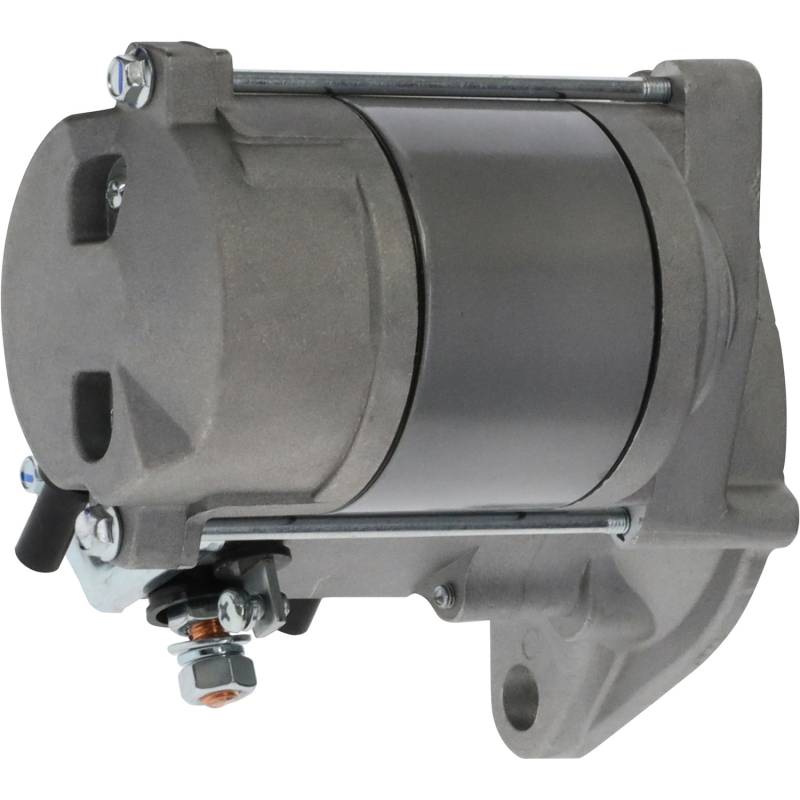

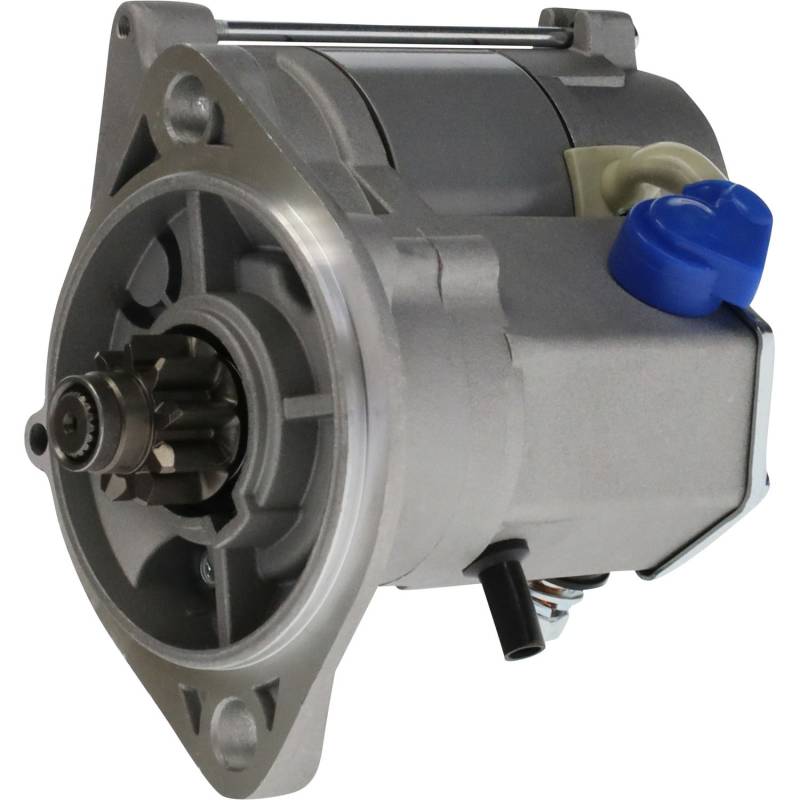

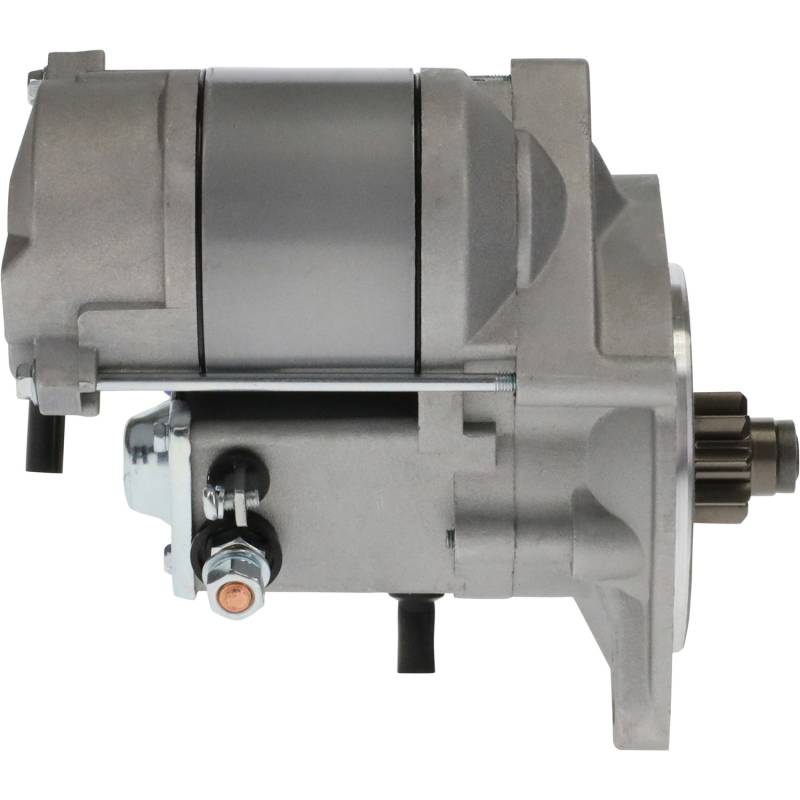

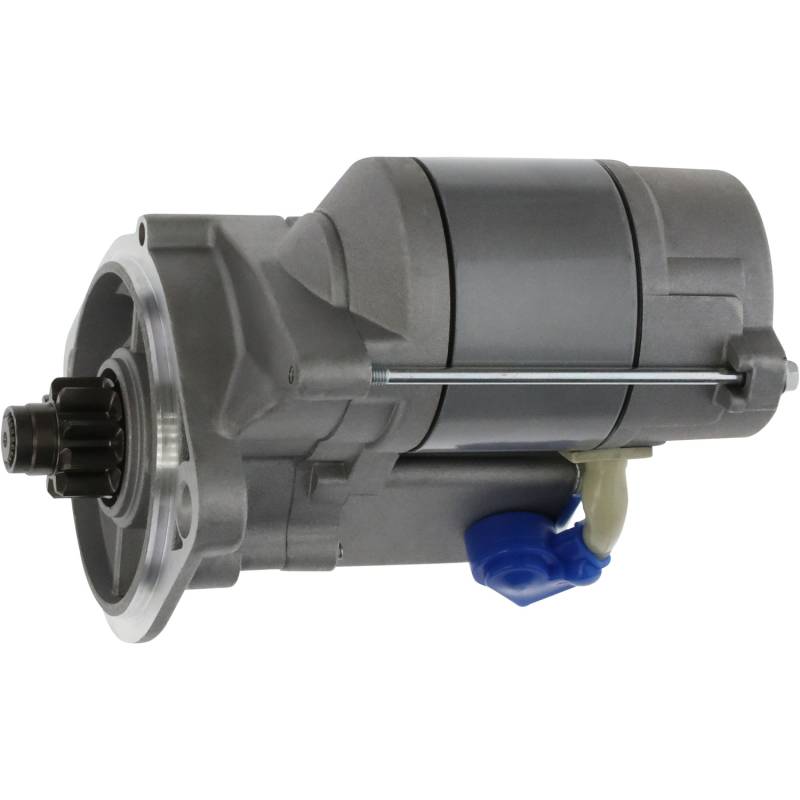

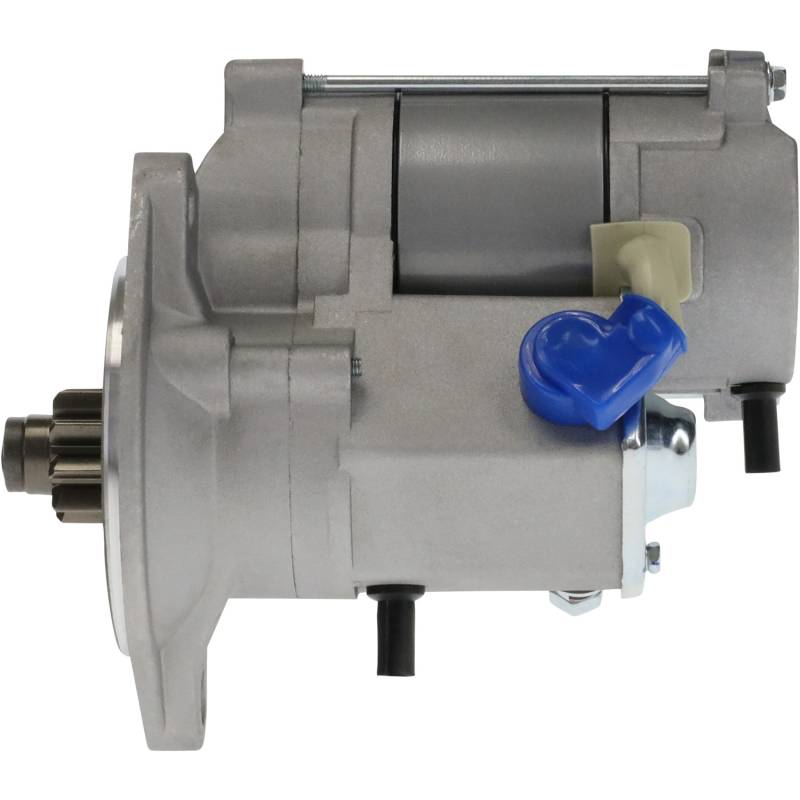

12V Starter Motor — Isuzu 3AB1/4FE1 Industrial Engines
12 volt 1.4kW starter motor for Isuzu 3AB1 and 4FE1 industrial and agricultural engines used in lift trucks, forklifts, and material handling equipment. Denso OSGR design with 9-tooth drive pinion, clockwise rotation. Dual 13.5mm unthreaded mounting ears, M8-1.25 battery and motor studs. Direct replacement for Denso 228000-1132, 228000-1133 and Isuzu 8970489662, 897048-9661, 897048-966-3.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
