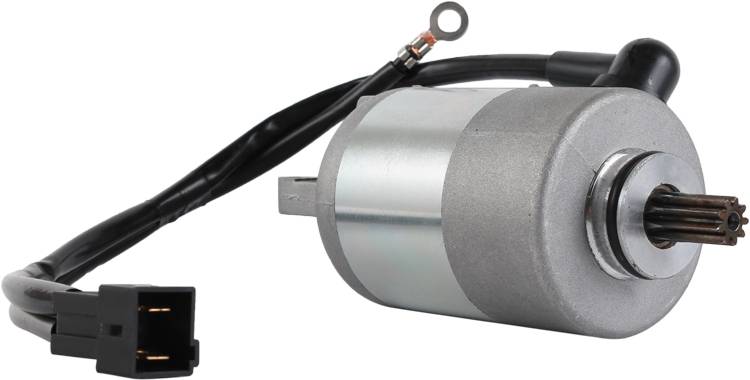

New Starter Motor Compatible With 2009-2015 Yamaha Zuma 125 Yw125 125Cc Single-Cylinder Sohc 4-Valve

SMU0538
OEM PART NUMBERS:
• Yamaha: 5S9-H1800-00-00 / 5S9H18000000

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Weight: 4 lbs
• Condition: New

APPLICATION:
• 2009-2015 Yamaha Zuma 125 YW125 125cc Scooter

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $52.76
Sale: $30.49
Save: 42%
Save: $22.27
Qty:
Free Shipping!

Description

YAMAHA ZUMA 125 (YW125) SCOOTER (2009-2015):
• Zuma 125 YW125 125cc Single-Cyl 4-Stroke SOHC 4-Valve (2009-2015)
• Liquid-Cooled / Fuel Injected / CVT Automatic
• Bore x Stroke: 52.4mm x 57.9mm
• Electric Start / 12V System
• Approximately 10HP

YAMAHA ZUMA 125 FEATURES:
• Urban commuter / All-weather scooter
• Rugged off-road inspired styling
• 12-inch wheels for stability
• Under-seat storage / Electric start
• Excellent fuel economy

MODEL YEARS:
• 2009 / 2010 / 2011 / 2012 / 2013 / 2014 / 2015
• All years use the same starter (5S9-H1800-00-00)

NOTES:
• PMDD starter system
• OEM Yamaha part number: 5S9-H1800-00-00
• Note: SMU0340 is a similar but different starter (shorter spline shaft, different battery wire) — verify part number
