OEM PART NUMBERS:
• Hitachi: S114-263B / S114263B
• Hitachi: S114-263BN
• Yamaha: 688-81800-10 / 688-81800-10-00
• Yamaha: 688-81800-11 / 688-81800-11-00
• Yamaha: 688-81800-12 / 688-81800-12-00
• Sierra Marine: 18-6423 / 186423
• Arco Marine: 3427
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 9
• Pinion Gear OD: 28.3mm / 1.114"
• Mounting Holes: 3x 9.0mm ID Unthreaded
• Weight: 7.9 lbs / 3.59 kg
• Condition: New
APPLICATION:
• Yamaha Outboard 90TLR 90HP (1991-2010)
• Yamaha Outboard 90TJR 90HP (1991-2001)
• Yamaha Outboard 90ETL 90HP (1984-1990)
• Yamaha Outboard B90TLR 90HP (1998-1999)
• Yamaha Outboard C90TLR 90HP (1997-2001)
• Yamaha Outboard C75TLR 75HP (1994-1999)
• Yamaha Outboard P75TLH 75HP (1996-1999)
• Yamaha Outboard C80TLR 80HP (1997)
• Yamaha Outboard C85TLR 85HP (1991-1996)
• Yamaha Outboard CV85EL/CV85ETL 85HP (1990)

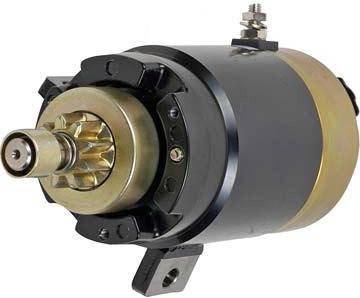

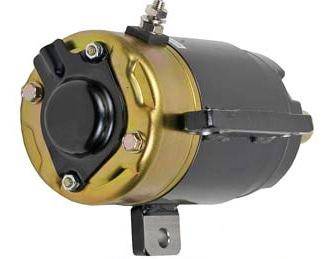

12V Starter - Yamaha Outboard 1984-2010
New 12V DD starter motor. CCW, 9 teeth, 28.3mm gear OD, 3x 9.0mm mounting holes. Replaces Yamaha 688-81800-11, Arco Marine 3427, Hitachi S114-263B, Sierra Marine 18-6423. Verify OEM part number.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
