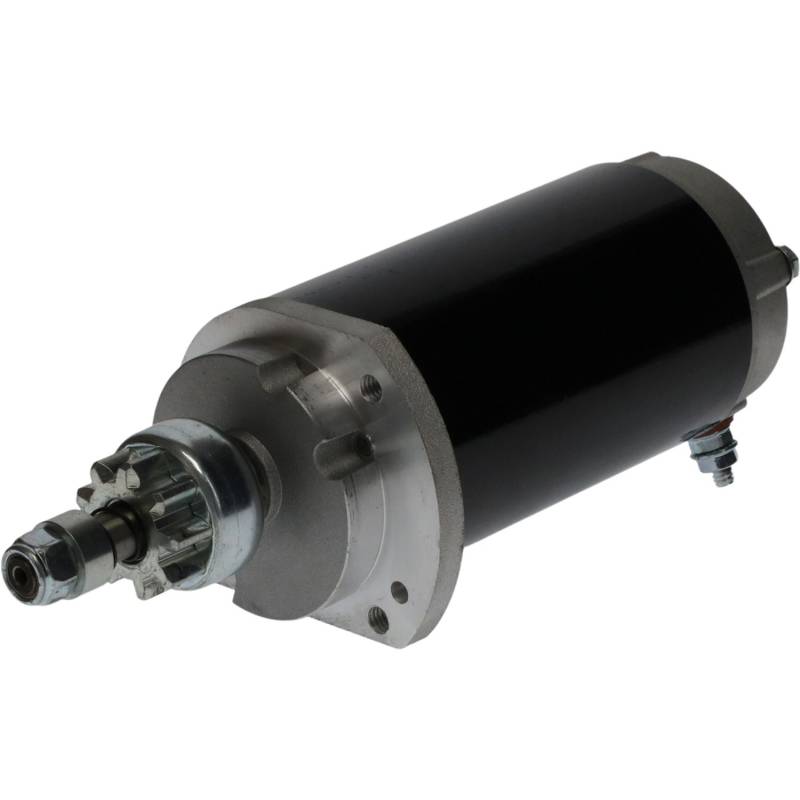

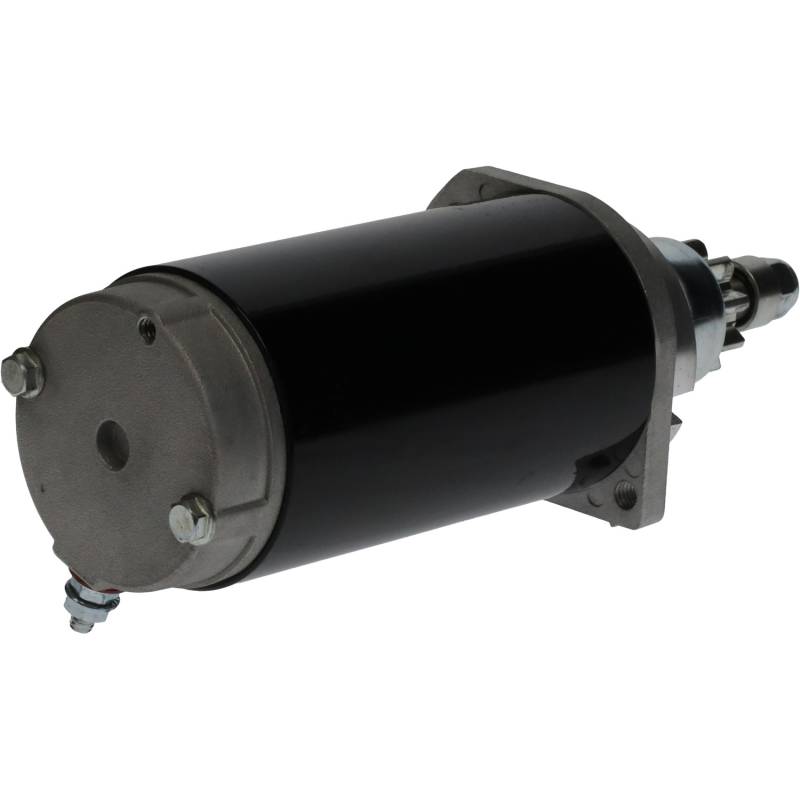

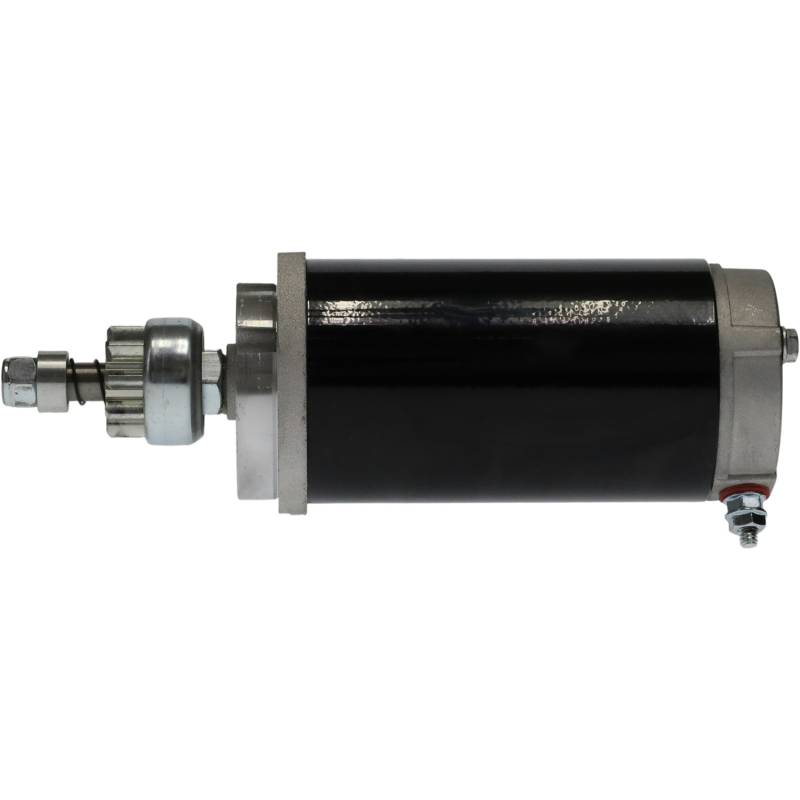

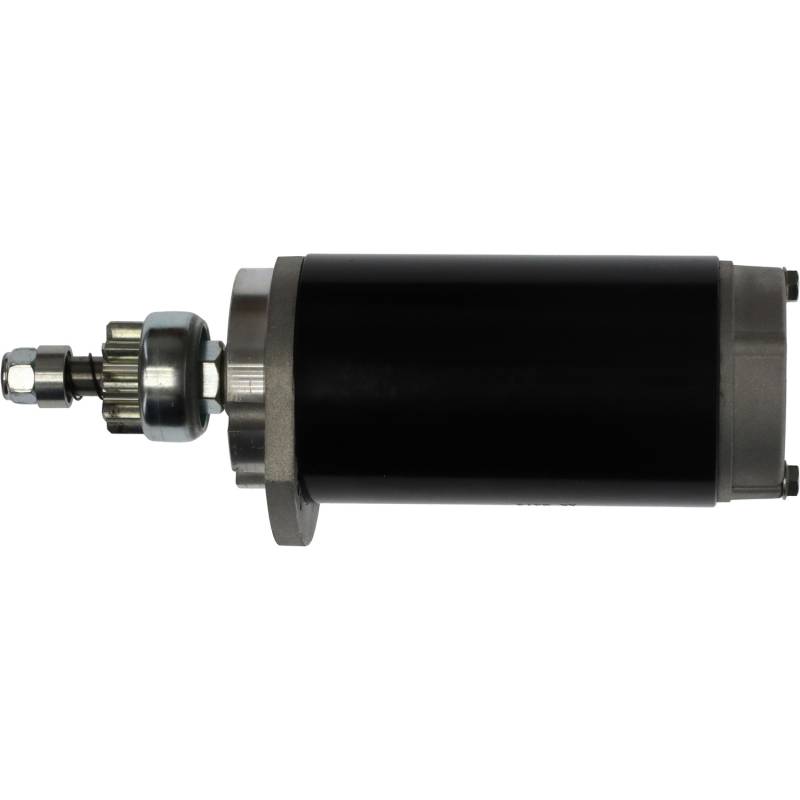

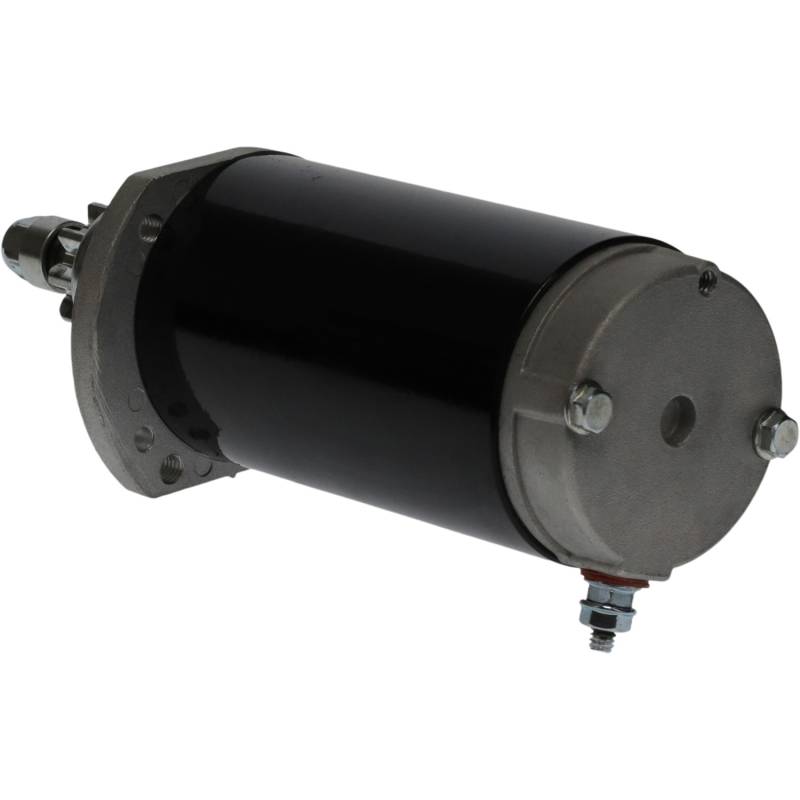

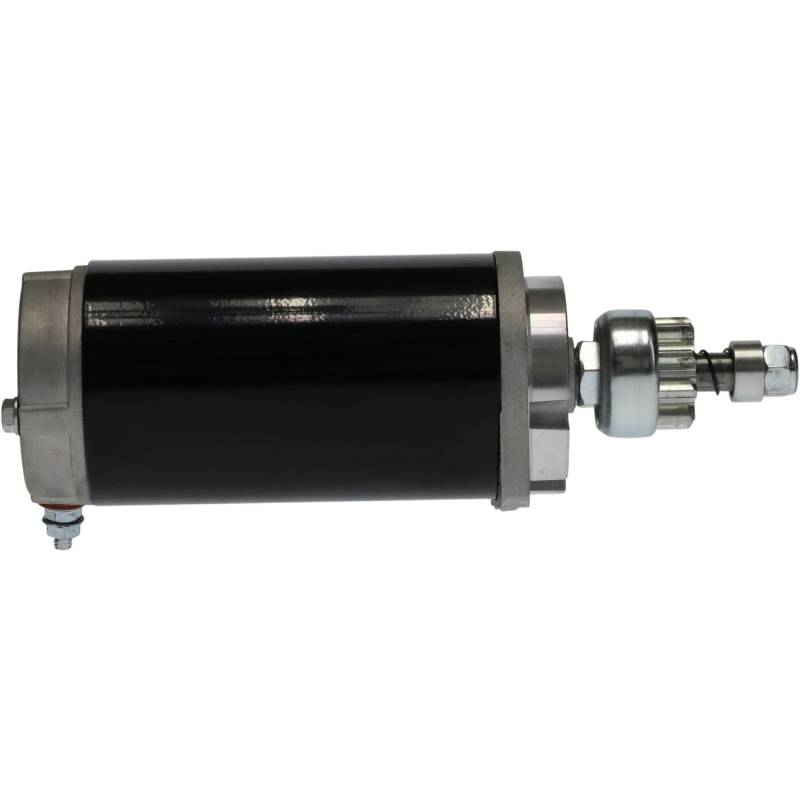

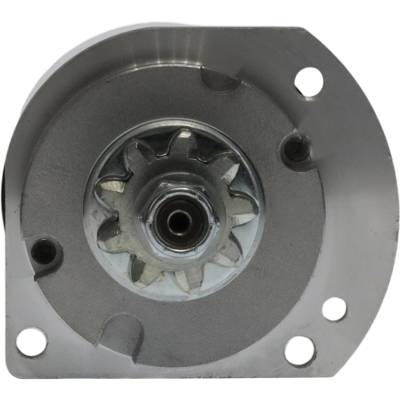

12V 9T Starter Motor Pmdd Ccw Compatible With Kohler K-482 K-532 K-582 18-23Hp 45-098-04 48-098-02

(0) Reviews: Write first review
5766*1
OEM PART NUMBERS:
• Kohler: 41-098-05
• Kohler: 45-098-04
• Kohler: 45-098-05
• Kohler: 48-098-01
• Kohler: 48-098-02
• Kohler: 48-098-04
• Kohler: 48-098-04-S
• Kohler: 48-098-05
• Kohler: A277214
• Kohler: A277599
• John Deere: AM34753
• John Deere: AM37725
• Bobcat: 6512287

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V DC
• Rotation: CCW (Counterclockwise)

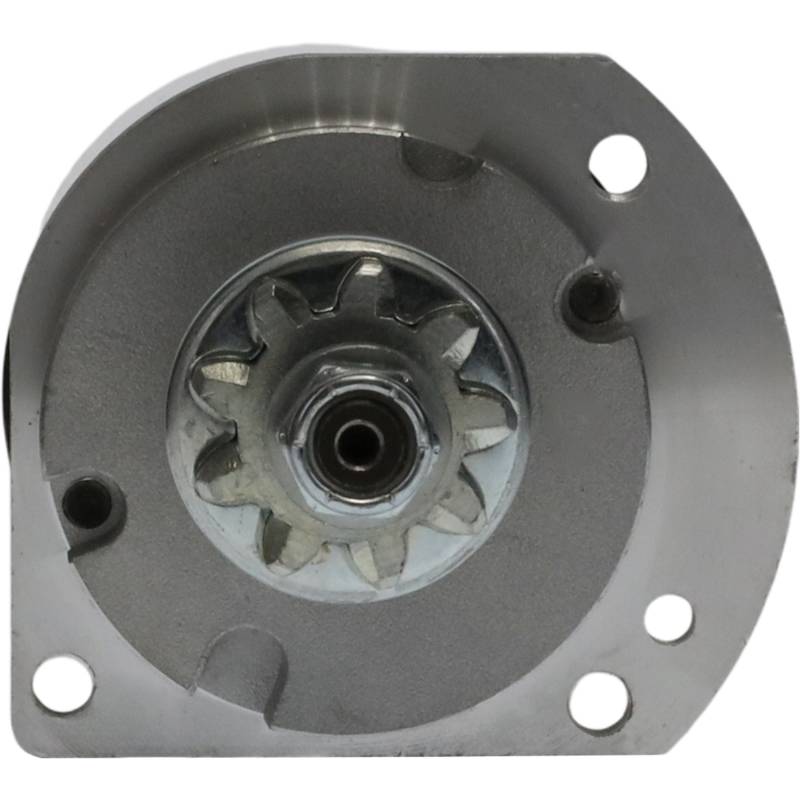

• Teeth: 9
• Gear OD: 36.5mm (1.437")
• Field Case Length: 129.2mm (5.07")

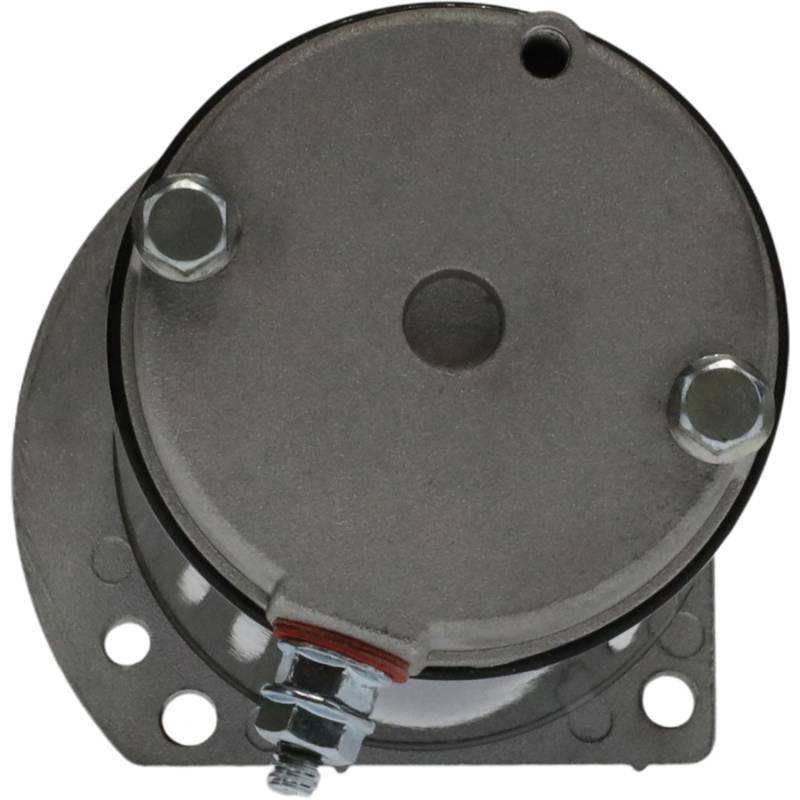

• Mounting: 3x 5/16-18 Threaded + 1x 6.6mm Unthreaded
• Weight: 7.39 lbs (3.36 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $163.35
Sale: $94.00
Save: 42%
Save: $69.35
Qty:
Free Shipping!

Description

KOHLER ENGINE APPLICATIONS:

Kohler K-482 Air-Cooled Twin Cylinder Engine:
• 18 HP / 13.4 kW
• 48 Cubic Inch Displacement (782cc)
• Bore: 82.6mm (3.25") / Stroke: 73.0mm (2.87")
• Opposed Twin, 4-Cycle, Horizontal Shaft
• Cast Iron Cylinder Sleeves, Full Pressure Lubrication

Kohler K-532 Air-Cooled Twin Cylinder Engine:
• 20 HP / 14.9 kW
• 53 Cubic Inch Displacement (868cc)
• Bore: 85.7mm (3.37") / Stroke: 76.2mm (3.0")
• Opposed Twin, 4-Cycle, Horizontal Shaft

Kohler K-582 Air-Cooled Twin Cylinder Engine:
• 23 HP / 17.1 kW
• 58 Cubic Inch Displacement (950cc)
• Bore: 88.9mm (3.5") / Stroke: 76.2mm (3.0")
• Opposed Twin, 4-Cycle, Horizontal Shaft

Kohler Command PRO CS Series:
• CS4 - 4HP Single Cylinder (Spec 9615xx, 9715xx)
• CS6 - 6HP Single Cylinder (Spec 9615xx, 9715xx)

JOHN DEERE EQUIPMENT:
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1975
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1976
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1977
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1978
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1979
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1980
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1981
• John Deere 400 Lawn Tractor - Kohler 19.9HP - 1982

BOBCAT SKID STEER LOADERS:
• Bobcat 520 Skid Steer - Kohler K-582S Gas Engine - 1976
• Bobcat 520 Skid Steer - Kohler K-582S Gas Engine - 1977
• Bobcat 530 Skid Steer - Kohler K-582S Gas Engine - 1977
• Bobcat 530 Skid Steer - Kohler K-582S Gas Engine - 1978
• Bobcat 530 Skid Steer - Kohler K-582S Gas Engine - 1979
• Bobcat 530 Skid Steer - Kohler K-582S Gas Engine - 1980
• Bobcat 530 Skid Steer - Kohler K-582S Gas Engine - 1981
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1981
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1982
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1983
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1984
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1985
• Bobcat 540 Skid Steer - Kohler K-582S Gas Engine - 1986
