OEM CROSS-REFERENCE PART NUMBERS — GENERAC:
• Generac: 020692 / 20692 / G020692
• Generac: 070954 (RV Model 9344 specific)
SPECIFICATIONS:

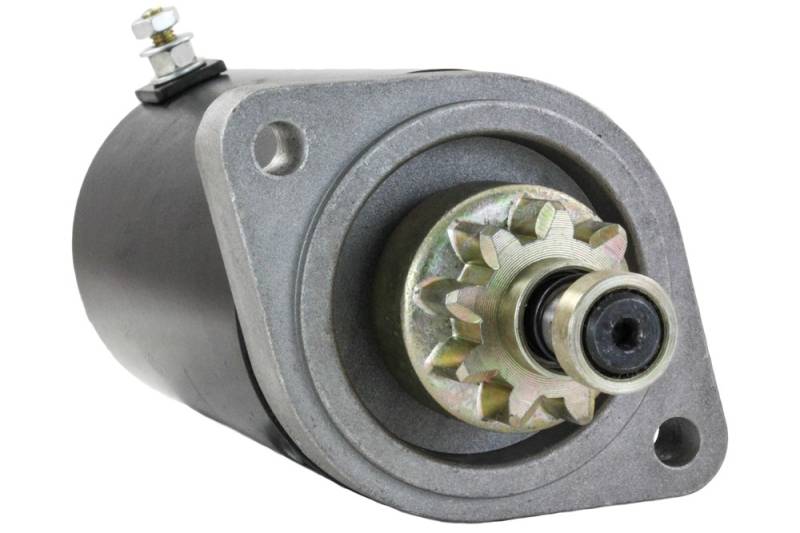

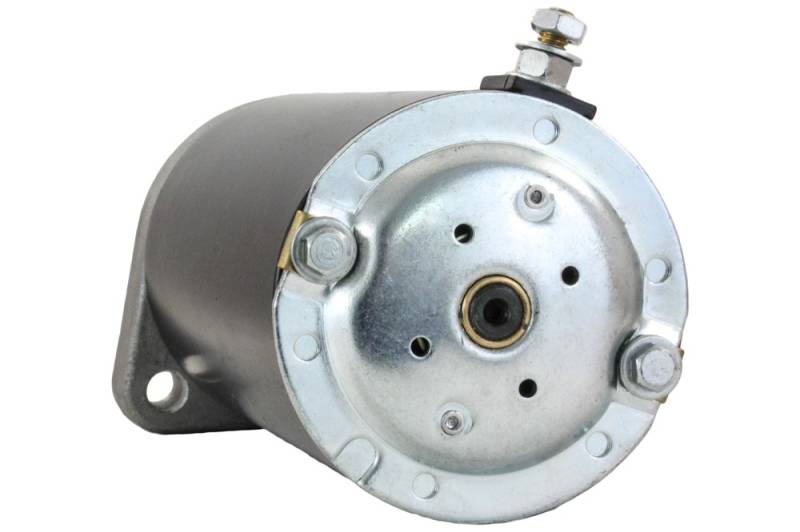

• Product Type: Generac Generator Starter Motor (PMDD CW)
• OEM Manufacturer: Johnson Electric
• Voltage: 12 Volt
• Rotation: CLOCKWISE (CW) — important: CW, not CCW
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 9
• Pinion / Gear OD: 36.7mm / 1.445"
• Field Case Length: 5.13" / 130.4mm
• Mounting Ear 1: 9.0mm Unthreaded
• Mounting Ear 2: 9.0mm Unthreaded
• Weight: 7.05 lbs / 3.2 kg
• Engine: Fiat 1.6L (1600cc) Liquid-Cooled Gas / Mitsubishi 1.5L (1500cc) Liquid-Cooled Gas / 1.0L Diesel
• Application: Generac RV Quietpact / Home Standby / Portable Generators (also fits Honeywell/Guardian/Siemens/Carrier/Watchdog/Centurion/Bryant rebadged Generac generators)
• Condition: New
APPLICATION SUMMARY — GENERAC GENERATORS WITH FIAT 1.6L / MITSUBISHI 1.5L:
• Generac Quietpact 55 / 65 / 75 / 75D RV Generators (Models 4270 / 4702 / 4703 / 4705 / 4706 / 4707)
• Generac RV Model 9344 (Fiat 1.6L or Mitsubishi 1.5L)
• Generac Liquid-Cooled / Water-Cooled Home Standby Generators
• Generac Portable Generators with Fiat 1.6L or Mitsubishi 1.5L engines
• Honeywell / Guardian / Siemens / Carrier / Watchdog / Centurion / Bryant rebadged Generac generators
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
