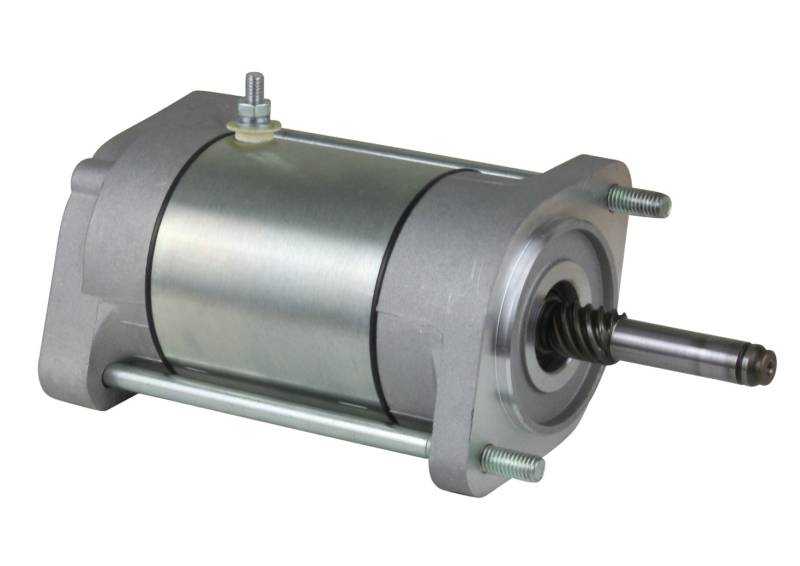

Starter Motor Compatible With 2014 Arctic Cat Snowmobile Bearcat 570 Xt F570 T570 565Cc 12V

OEM PART NUMBERS:
• Arctic Cat (Arctco): 0745-392 / 0745392
• Cross-Reference: 70-956-200 / 70956200

SPECIFICATIONS:
• Product Type: Starter Motor
• Voltage: 12V
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Teeth: 10
• Length: 5.925 in / 150.5mm
• Registry OD: 2.441 in / 62mm
• Mounting: M8-1.25 Threaded Thru-Bolts
• Output Shaft: 12mm OD, 7-Spline (16.2mm OD at Splines)
• B+ Terminal: M6 Stud
• Condition: New

APPLICATION:
• 2014 Arctic Cat Bearcat 570 / Bearcat 570 XT Snowmobile 565cc
• 2014 Arctic Cat F570 / T570 Snowmobile 565cc

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
