OEM PART NUMBERS:
• Facet: 40222 / 40222N / 40234
• Carrier Transicold: 30-60009-00 / 306000900
• FulTyme RV: 4500
• HC Cargo: 070076
• Seachoice (Land N Sea): 20331
SPECIFICATIONS:

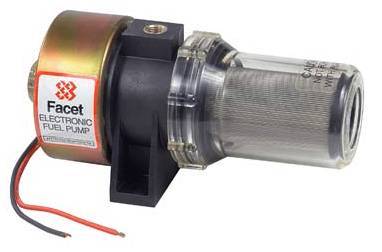

• Type: Dura-Lift Electronic Fuel Pump
• Voltage: 12V
• Flow Rate: 33 GPH
• Max Shutoff Pressure: 11.5 PSI
• Min Shutoff Pressure: 9.0 PSI
• Min Dry Lift: 120 inches (10 feet / 304.8cm)
• Fitting Type: 1/8-27 NPTF Internally Threaded
• Filter: 80 Micron Stainless Steel Screen (removable)
• Check Valve: Yes (Included)
• Positive Shutoff Valve: No
• Quiet Valve: No
• Pump Dimensions: 8" Height x 3-1/4" OD
• Mounting: 2-Bolt Flange (molded into nylon body)
• Lead Wire: 5"
• Weight: 2.465 lbs / 1.12 kg
• Self-Priming: Yes (to 10 feet)
• Dry Run Time: 4 Hours
• Salt Spray Tested: 100+ Hours
• Condition: New
APPLICATIONS:
• Carrier Transicold refrigeration trucks/trailers
• Marine generator sets and diesel engines
• Diesel filtration systems and industrial fuel lift
• 1983-1994 Ford diesel trucks/vans (lift pump replacement)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
