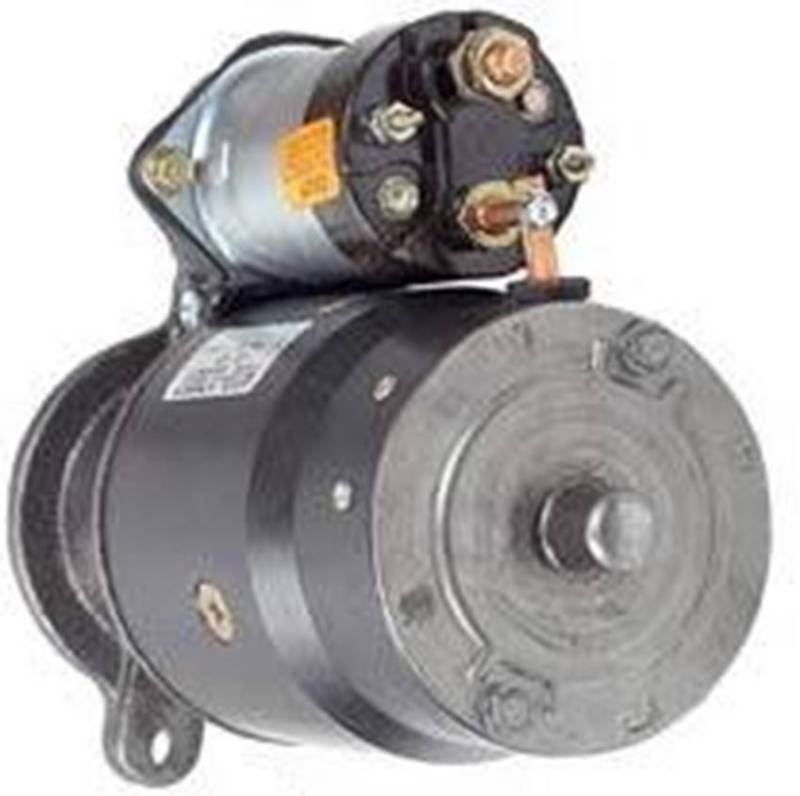

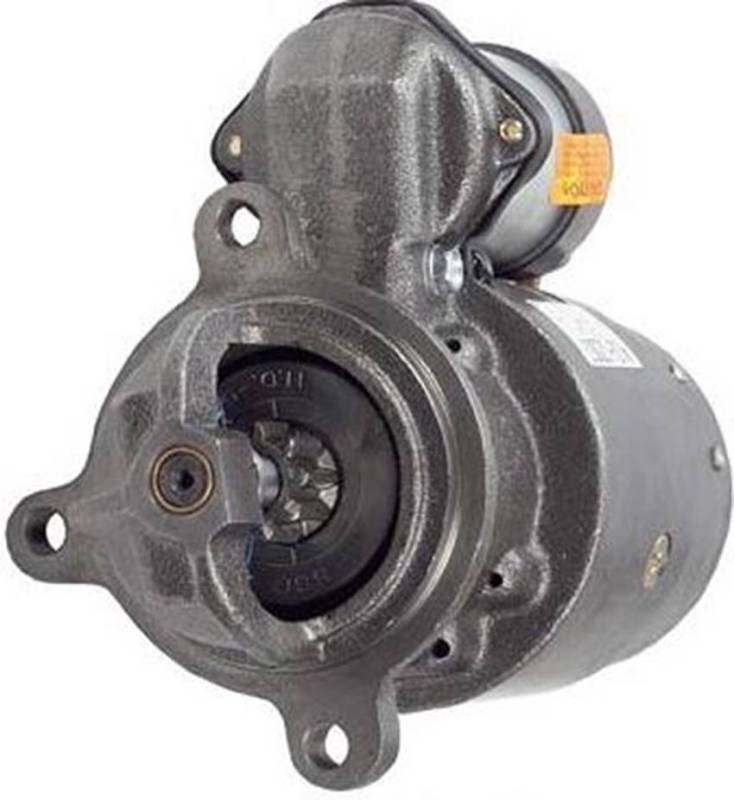

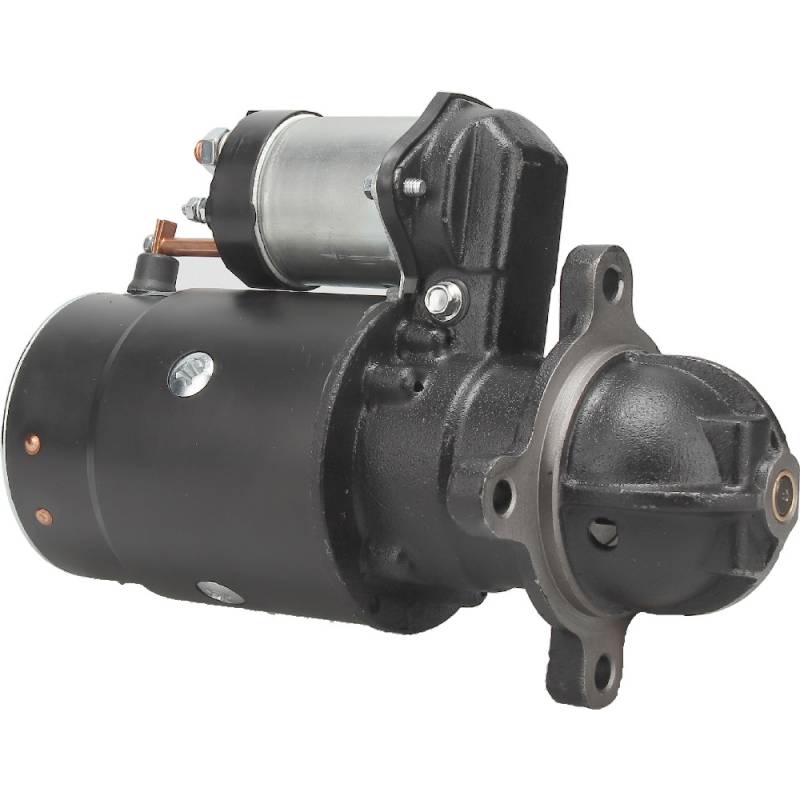

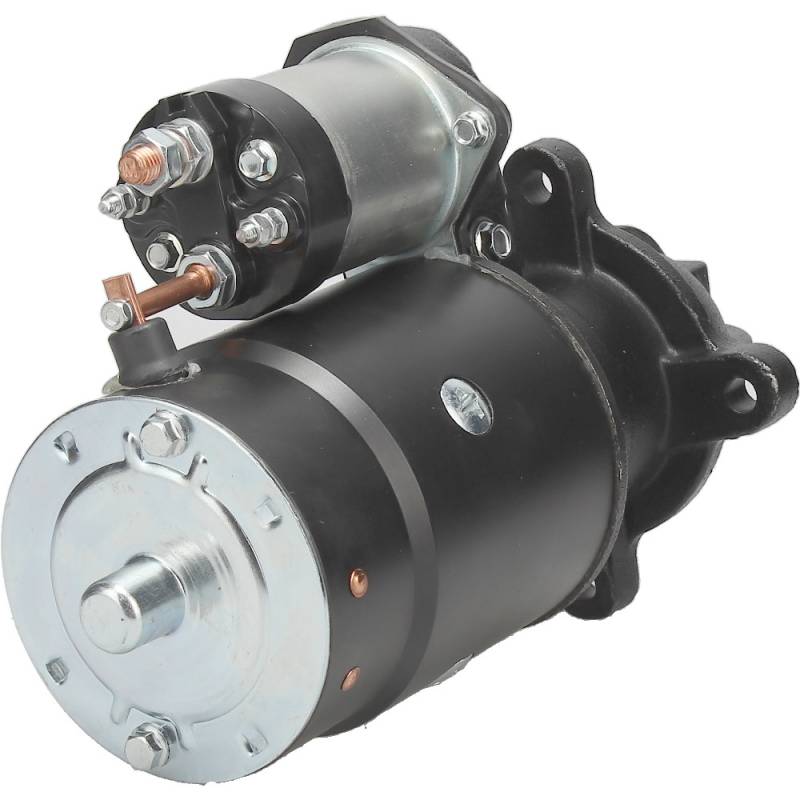

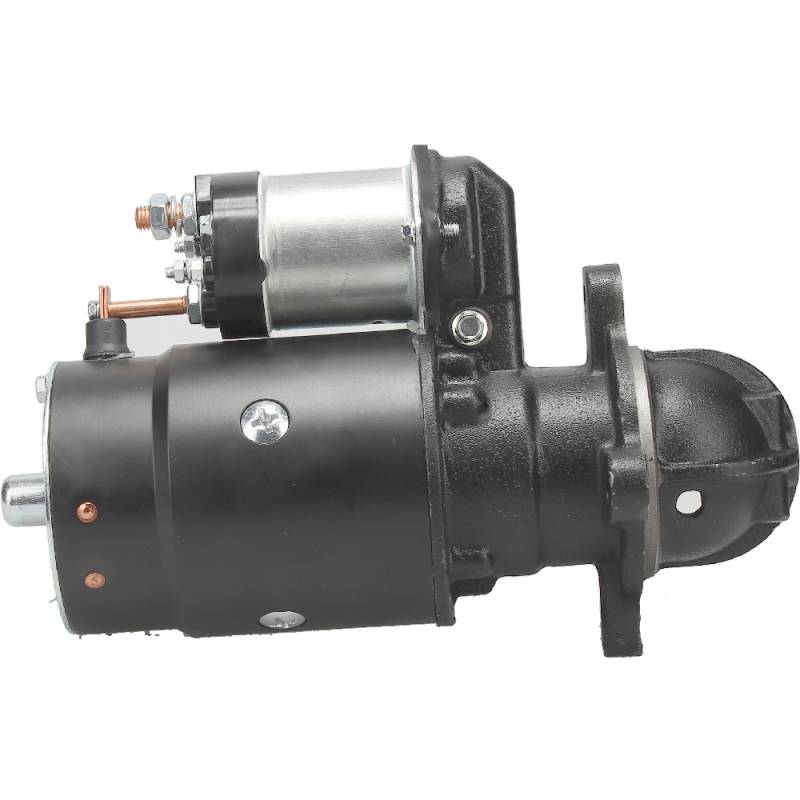

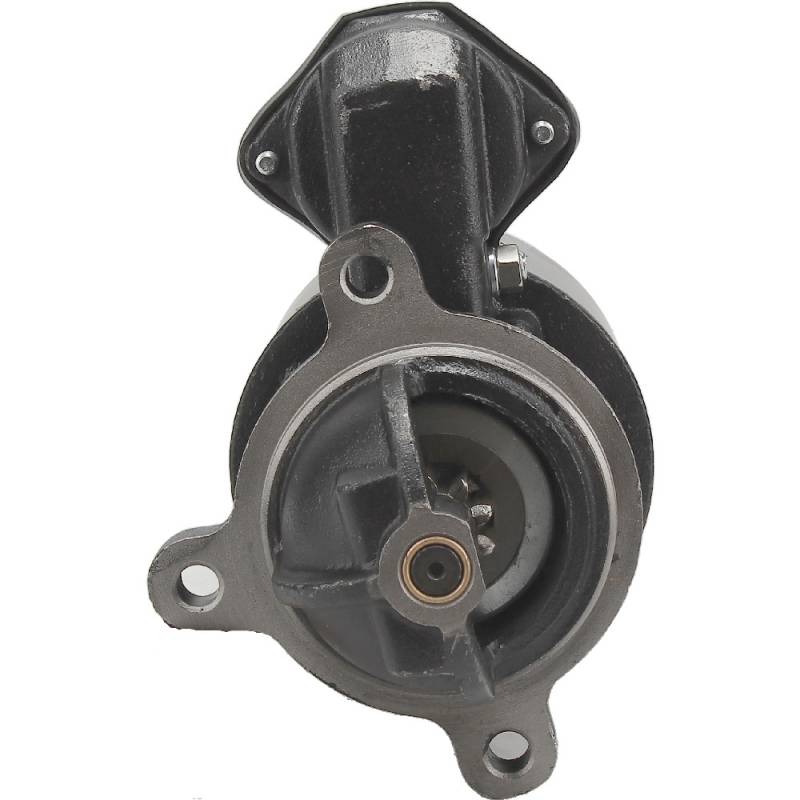

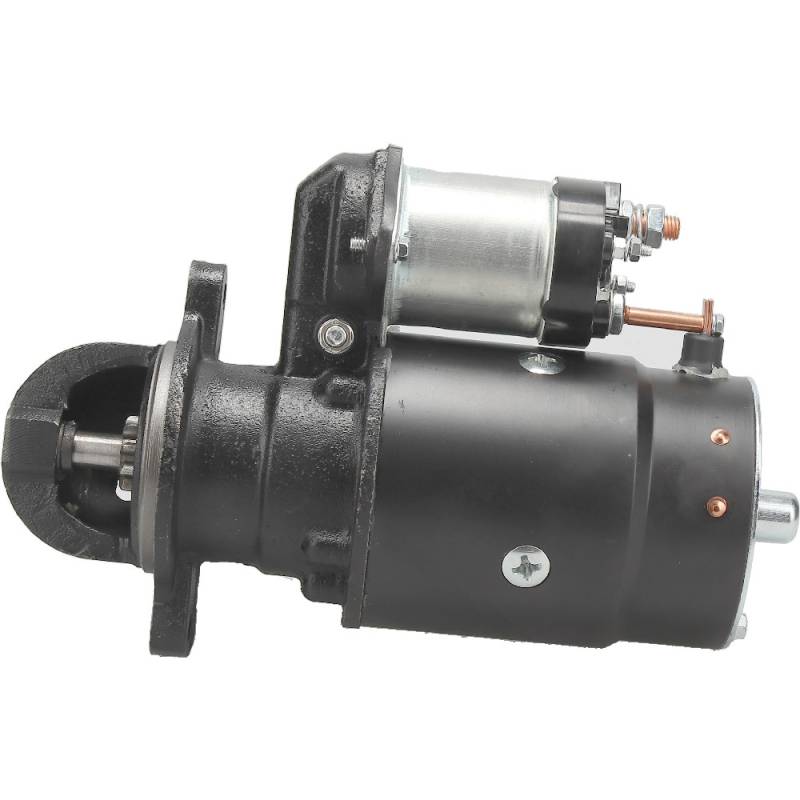

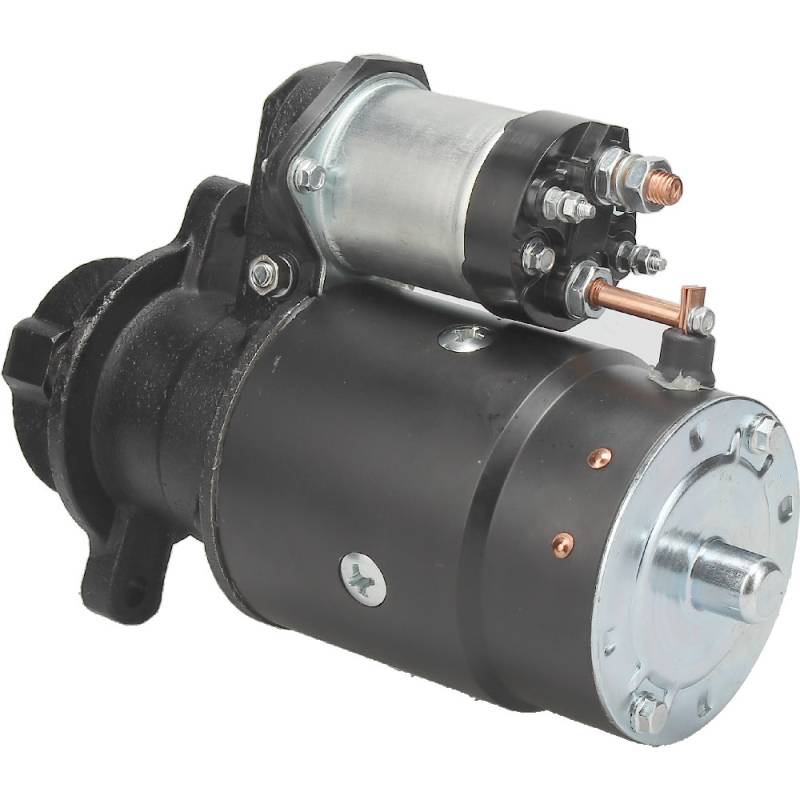

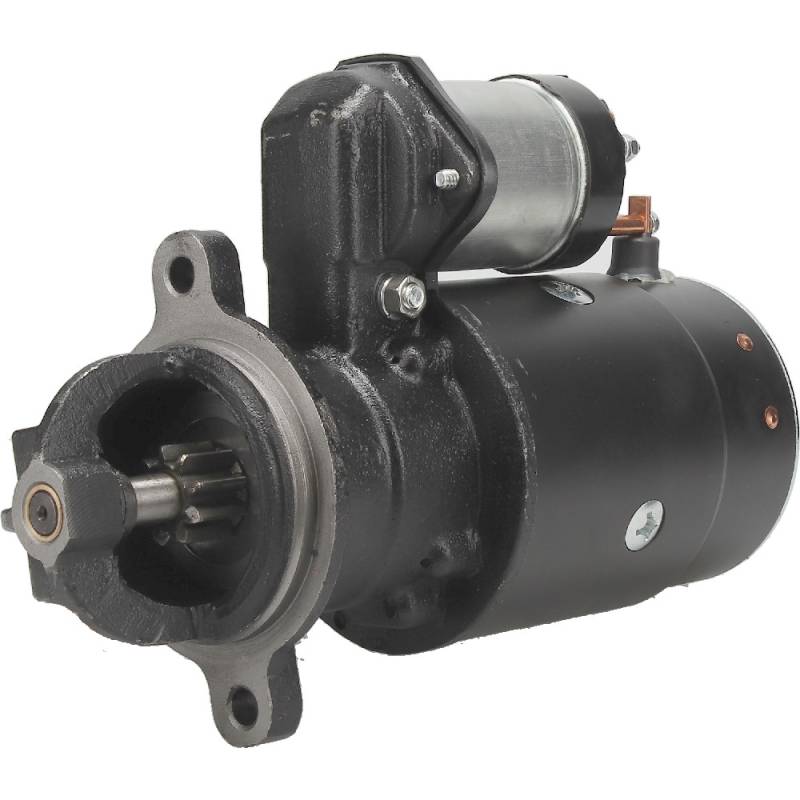

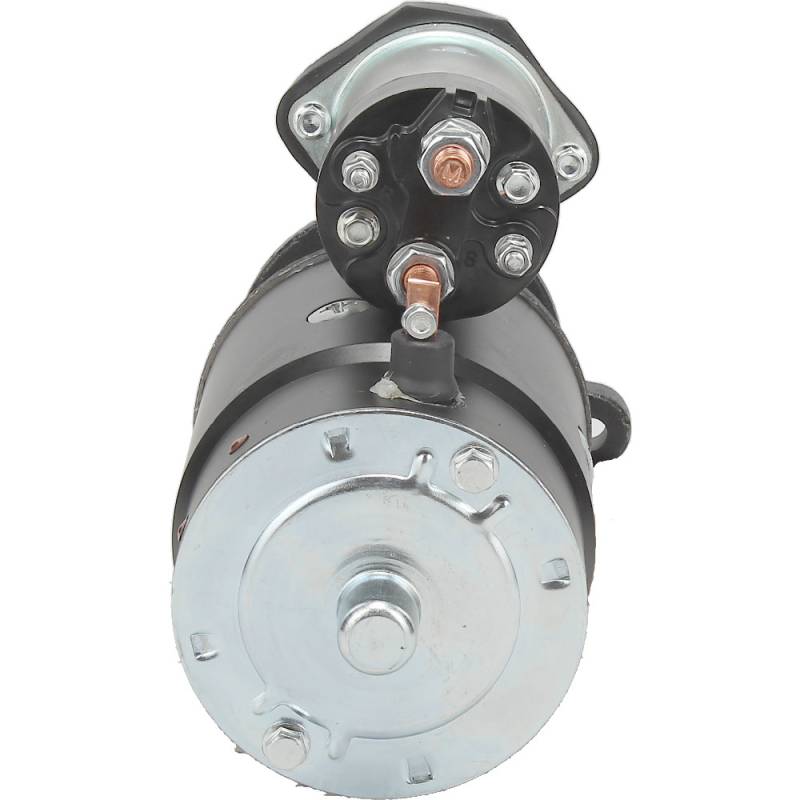

New Starter Motor Compatible With Clark Forklift C500-45 C500-50 C500-55 1636179 1107377

(0) Reviews: Write first review
4246A1
CLARK PART NUMBERS:
• 2377360
• 1636179

DELCO PART NUMBERS:
• 1109091
• 1107377

ACDELCO PART NUMBERS:
• 323-632, 323632

SPECIFICATIONS:
• Type: Delco 10MT direct drive (DD) starter
• Voltage: 12 Volt
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 10/12 pitch
• Gear OD: 29.2 mm (1.150 in)
• Mounting: 3 ears, 0.420 in unthreaded holes, 2.500 in hole radius
• Solenoid position: 280 degree
• Weight: about 23.4 lb (10.65 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $370.56
Sale: $211.75
Save: 43%
Save: $158.81
Qty:
Free Shipping!

Description

⚠️ 12 VOLT DELCO 10MT DIRECT DRIVE STARTER, 9 TOOTH, CLOCKWISE, NEW:
• 12 volt Delco 10MT direct drive (DD), clockwise (CW) rotation, 9 tooth 10/12 pitch pinion, 29.2 mm (1.150 in) gear OD
• 3 mounting ears, 0.420 in unthreaded holes on a 2.500 in radius, 280 degree solenoid position, about 23.4 lb (10.65 kg)
• Gas and LP Continental and Waukesha engines; a 10 tooth or counterclockwise starter is a different part, count the teeth first

CLARK CY60 / CY70 / CY80 LIFT TRUCKS:
• Clark CY60 lift truck, Continental F-244, 1966
• Clark CY70 lift truck, Continental F-244, 1966
• Clark CY80 lift truck, Continental F-244, 1966
• Clark CY60 lift truck, Continental F-245, 1967-1970
• Clark CY70 lift truck, Continental F-245, 1967-1970
• Clark CY80 lift truck, Continental F-245, 1967-1970

CLARK Y40 / Y45 / Y50 / Y55 LIFT TRUCKS:
• Clark Y40 lift truck, Waukesha 155 gas, 1969-1971
• Clark Y45 lift truck, Waukesha 155 gas, 1969-1971
• Clark Y50 lift truck, Waukesha 155 gas, 1969-1971
• Clark Y55 lift truck, Waukesha 155 gas, 1969-1971

CLARK CY30B / CY40B / CY50B LIFT TRUCKS:
• Clark CY30B lift truck, Continental F-163, 1969-1970
• Clark CY40B lift truck, Continental F-163, 1969-1970
• Clark CY50B lift truck, Continental F-163, 1969-1970

CLARK HUT / UT / Y SERIES LIFT TRUCKS (1966):
• Clark HUT60 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark HUT70 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark HUT80 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark HUT100 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark UT60 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark UT70 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark UT80 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark UT100 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark Y60 lift truck, Continental F-209 (standard or optional engine), 1966
• Clark Y100 lift truck, Continental F-209 (standard or optional engine), 1966

CLARK SKID STEER LOADER:
• Clark 970 skid steer loader, Continental F-227, 1973

CLARK TOW TRACTORS:
• Clark Clarkette tow tractor, Continental Y-112, 1967-1978
• Clark Clarkat tow tractor, Continental Y-112, 1970-1982
• Clark CK30 tow tractor, Continental Y-112, 1982-1987
