New Alternator Compatible With 10Si Delco 1 Wire Self Energizing Hookup 50 Amp 24 Volt Se24vv

SE24V
DELCO REMY PART NUMBERS:
• 10480060
• 1101195
• 1101204
• 1102918
• 1103123
• 1105179
• 1105419
• 1105510
• 1105537
• 19020527
• 53150
• 93059

JOHN DEERE PART NUMBERS:
• AT130930
• AT157178
• RE20034
• TY6776
• TY6752
• SE501377
• SE501384

CASE PART NUMBERS:
• A167152
• 104260A1
• 104260A1R
• A47484
• L101465
• L112091
• L78103

CUMMINS PART NUMBERS:
• 3604476RX
• 3905225
• 3909984

FIAT-ALLIS PART NUMBERS:
• 73112312

OTHER REPLACEMENT NUMBERS:
• Wilson 90-01-3123, 90013123

SPECIFICATIONS:
• Type: 10SI type alternator, 1 wire self exciting (self energizing) hookup, internal regulator, external fan
• Voltage: 24 volt
• Output: 50 amp (also replaces the 40 amp originals)
• Regulator position: 12:00
• Polarity: negative ground
• Output stud: M6-1.0

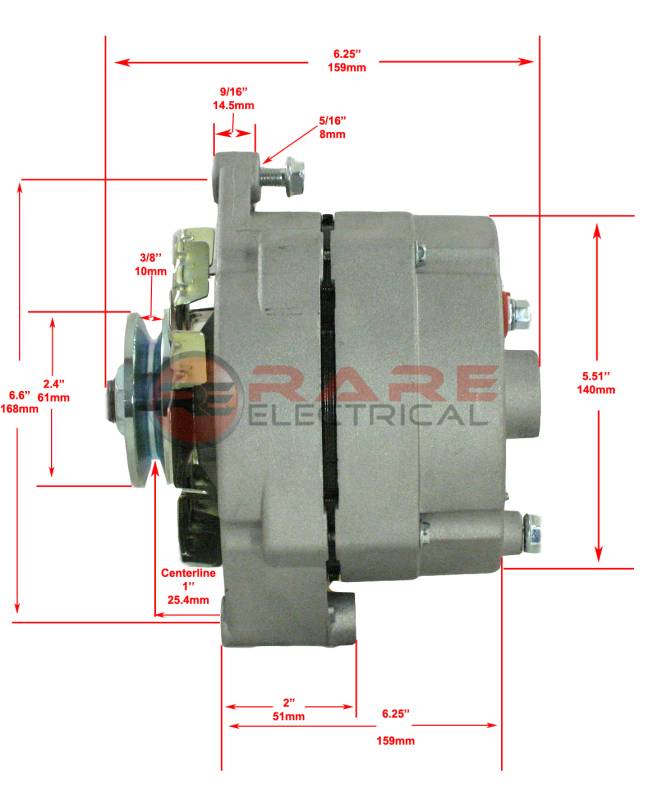

• Mounting: 2 inch mounting foot and 1 adjusting ear
• Pulley: 1-V pulley for 3/8 inch and 7/16 inch belts, front adjusting ear mounting bolt included
• Wiring: one wire from the battery positive post to the output terminal, 10 gauge cable minimum; replaces 3 wire originals
• Turn on: low turn on, starts charging at low RPM
• Weight: 11.4 lb (5.18 kg)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $335.69
Sale: $191.82
Save: 43%
Save: $143.87
Qty:
Free Shipping!

Description

UNIVERSAL 24 VOLT 1 WIRE CONVERSION:
• Universal fit 24 volt 1 wire alternator for engines and machines with a 10SI type mount: 2 inch mounting foot and 1 adjusting ear
• Comes with a new self exciting regulator: 1 wire self energizing hookup, no ignition exciter wire needed
• Wiring: one wire from the positive post on the battery to the output terminal on the back of the alternator
• Use a minimum of 10 gauge cable for the output wire
• Low turn on alternator: starts charging at low RPM
• Comes with a 1-V pulley for 3/8 inch and 7/16 inch belts and the front adjusting ear mounting bolt
• Common conversion: replaces 3 wire 10SI type originals, only the B+ output wire is connected
• 50 amp output, also replaces the 40 amp 10SI type originals listed here

ALSO FITS, CASE WHEEL LOADERS:
• Case W14 with the 336 diesel, 1972-1977
• Case W14H with the 336 diesel, 1975-1977
• Case W18 with the IHC 6-504 diesel, 1971-1977, and the IHC V401 gas, 1973-1977
• Case W20 with the IHC 6-504 diesel, 1979-1984
• Case W24B with the 504 diesel, 1970-1977
• Case W24C with the 504 diesel, 1977-1982
• Case W26B with the 504 diesel, 1971-1977
• Case W36 with the 504 diesel, 1978-1982
• Case W14B with the 6-590 diesel, 1983-1989
• Case W18B with the A504BD diesel, 1978-1988
• Case W20B with the A401BD diesel, 1980-1984
• Case W20C with the A504BD diesel, 1982-1989
• Case W24 with the A504BD diesel, 1983-1988
• Case W30 with the A504BD diesel, 1983-1992

ALSO FITS, CASE SKID KING AND CONSTRUCTION KING:
• Case 600 Skid King with the 336 diesel, 1975-1977
• Case 800 Skid King with the 336 diesel, 1975-1977
• Case 825 Skid King with the 336 diesel, 1975-1977
• Case 680G Construction King with the 336BD diesel, 1979-1982
• Case 680H Construction King with the 336BD diesel, 1980-1982

ALSO FITS, CASE LOADER BACKHOES:
• Case 680K with the 6-590 diesel, 1984-1988
• Case 780 with the 336 diesel, 1971-1981
• Case 780B with the 336BDT diesel, 1981-1985
• Case 780C with the 6T-590 diesel, 1984-1988

ALSO FITS, CASE CRAWLERS:
• Case 850
• Case 850B with the 336 diesel, 1976-1981
• Case 850C with the 336 diesel, 1981-1984
• Case 850D with the 6-590 diesel, 1984-1991
• Case 855C with the 336 diesel, 1984
• Case 855D with the 6-590 diesel, 1984-1991
• Case 1150 with the A401D diesel, 1969-1974
• Case 1150C with the 451 diesel, 1978-1983
• Case 1150D with the 504 diesel, 1983-1986
• Case 1155D with the 504 diesel, 1983-1986
• Case 1450B with the 504 diesel, 1980-1987

ALSO FITS, CASE EXCAVATORS:
• Case 880D with the 6T-590 diesel, 1984-1997
• Case 1080B with the 504 diesel, 1985-1988
• Case 1085B with the 6T-590 diesel, 1983-1990
• Case 1085C with the 6T-590 diesel, 1990-1994
• Case 1086B with the 6T-590 diesel, 1985-1994

ALSO FITS, FIAT-ALLIS:
• Fiat-Allis 100C with the 11000 engine, 1974-1976
• Fiat-Allis 150C with the 11000 engine, 1974-1976
• Fiat-Allis 200C with the 11000 engine, 1974-1976

ALSO FITS, JOHN DEERE EXCAVATORS:
• John Deere 190E with the John Deere 4039D diesel, 1993-1998
• John Deere 290D with the John Deere 4239D diesel, 1990-1995
• John Deere 490 with the John Deere 4276D diesel, 1985-1988
• John Deere 490D with the John Deere 4239 diesel, 1985-1988, and the 4276D diesel, 1987-1992
• John Deere 490E with the John Deere 4045T diesel, 1992-1997
• John Deere 495D with the John Deere 4276T diesel, 1985-1992
• John Deere 590D with the John Deere 4276T diesel, 1988-1997
• John Deere 690D with the John Deere 6414T diesel, 1988-1992
• John Deere 690E LC with the John Deere 6068 diesel, 1991-1998
• John Deere 70D with the John Deere 4039 diesel, 1988-1993
• John Deere 790 with the John Deere 6466A diesel, 1986-1987
• John Deere 790D with the John Deere 6466A diesel, 1988-1998
• John Deere 790E LC with the John Deere 6068 and 6068T diesels, 1992-1997
• John Deere 792 with the John Deere 6466A diesel, 1986-1988
• John Deere 892D LC with the John Deere 6466A diesel, 1989-1993
• John Deere 892E LC with the John Deere 6076 diesel, 1993-1998, and the 6466A diesel, 1994-1998
• John Deere 992D with the John Deere 6619A diesel, 1988-1993
• John Deere 595D with the John Deere 4045 4.5L diesel, 1988-1998

ALSO FITS, JOHN DEERE FELLER BUNCHERS:
• John Deere 493D with the John Deere 4276D diesel, 1987-1991, and the 4045 diesel, 1988-1995
• John Deere 693D with the John Deere 6414T diesel, 1988-1995
• John Deere 793D with the John Deere 6466A diesel, 1988-1995

ALSO FITS, JOHN DEERE DOZERS:
• John Deere 750 with the John Deere 300 Series engine, 1975-1986
• John Deere 750B with the John Deere 6068 diesel, 1985-1995
• John Deere 850, 1978-1981, various engines
• John Deere 850B with the John Deere 6466A diesel, 1985-1995

ALSO FITS, JOHN DEERE CRAWLER LOADERS:
• John Deere 655, 1981-1985, various engines
• John Deere 655B with the John Deere 6068T diesel, 1985-1995
• John Deere 755, 1976-1982, various engines
• John Deere 755A, 1981-1985, various engines
• John Deere 755B with the John Deere 6068T diesel, 1985-1995
• John Deere 855 with the John Deere 500 Series engine, 1978-1986

ALSO FITS, JOHN DEERE GRADERS AND SCRAPER:
• John Deere 570B with the John Deere 6059D diesel, 1982-1997
• John Deere 670B with the John Deere 6068T diesel, 1982-1995
• John Deere 672B with the John Deere 6414T diesel, 1988-1998
• John Deere 770B with the John Deere 6076T diesel, 1982-1995
• John Deere 772B with the John Deere 6466T diesel, 1982-1995
• John Deere 862B scraper with the John Deere 6-619 10.1L diesel, 1986-2001

ALSO FITS, JOHN DEERE ENGINES:
• John Deere 6329D 5.4L industrial diesel engine
• John Deere 6466A, 6466D and 6466T 7.6L industrial diesel engines

SPECIFICATIONS:
• Type: 10SI type alternator, 1 wire self exciting (self energizing) hookup, internal regulator, external fan
• Voltage: 24 volt
• Output: 50 amp (also replaces the 40 amp originals)
• Regulator position: 12:00
• Polarity: negative ground
• Output stud: M6-1.0
• Mounting: 2 inch mounting foot and 1 adjusting ear
• Pulley: 1-V pulley for 3/8 inch and 7/16 inch belts, front adjusting ear mounting bolt included
• Wiring: one wire from the battery positive post to the output terminal, 10 gauge cable minimum; replaces 3 wire originals
• Turn on: low turn on, starts charging at low RPM
• Weight: 11.4 lb (5.18 kg)
• Condition: New aftermarket
