OEM PART NUMBERS:
• Honda: 31100-R70-A01 / 31100R70A01
• Honda Reman: 31100-R70-A01RM / 31100R70A01RM
• Honda Reman Service: 06311-R70-505RM / 06311R70505RM
• Honda CSF Code: CSF91
• 104210-5910 / 1042105910
• Reman: 210-0645 / 2100645
SPECIFICATIONS:

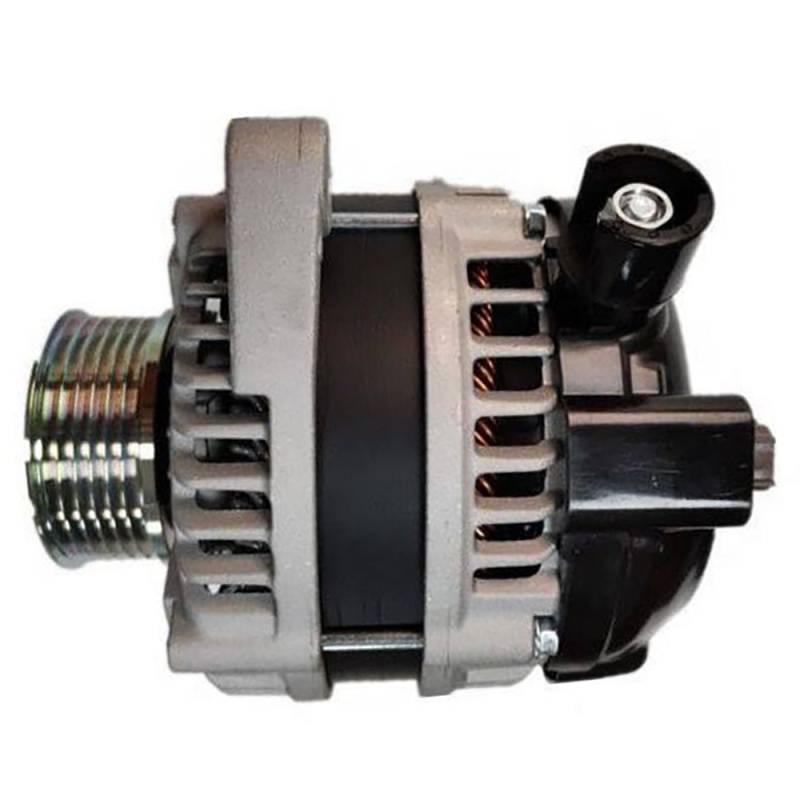

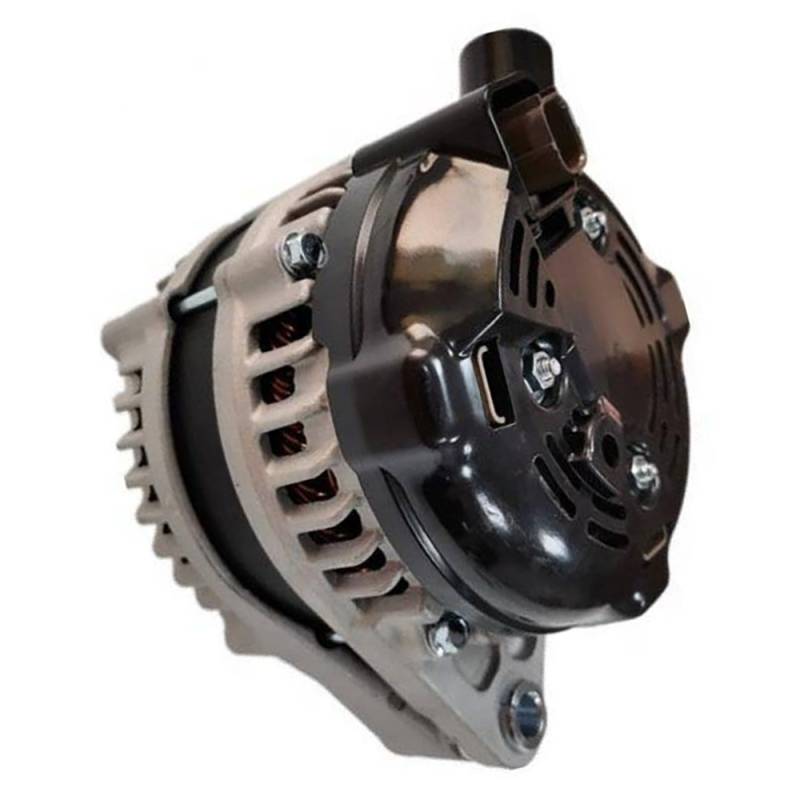

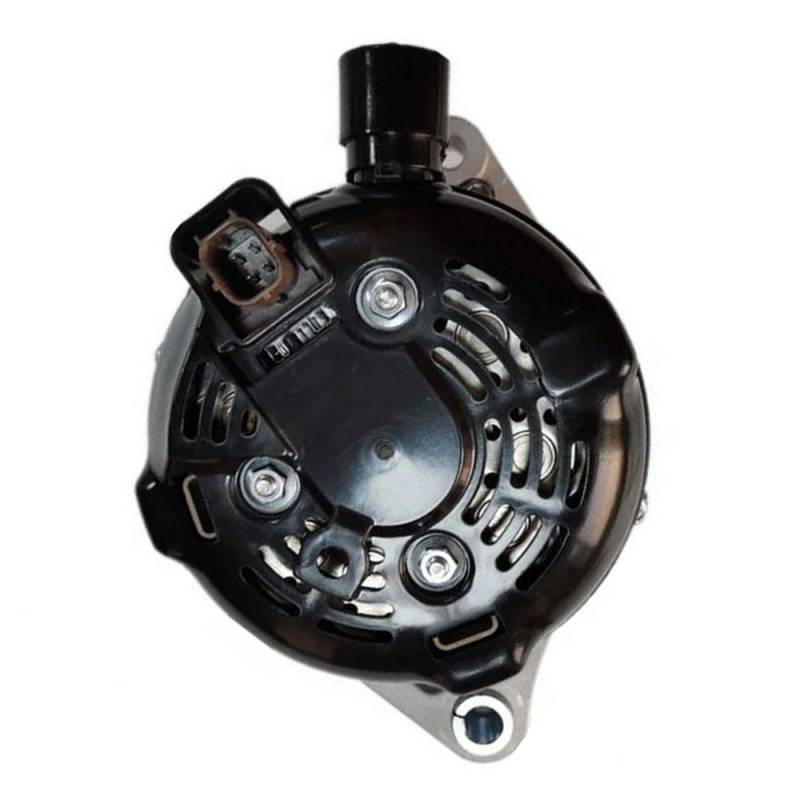

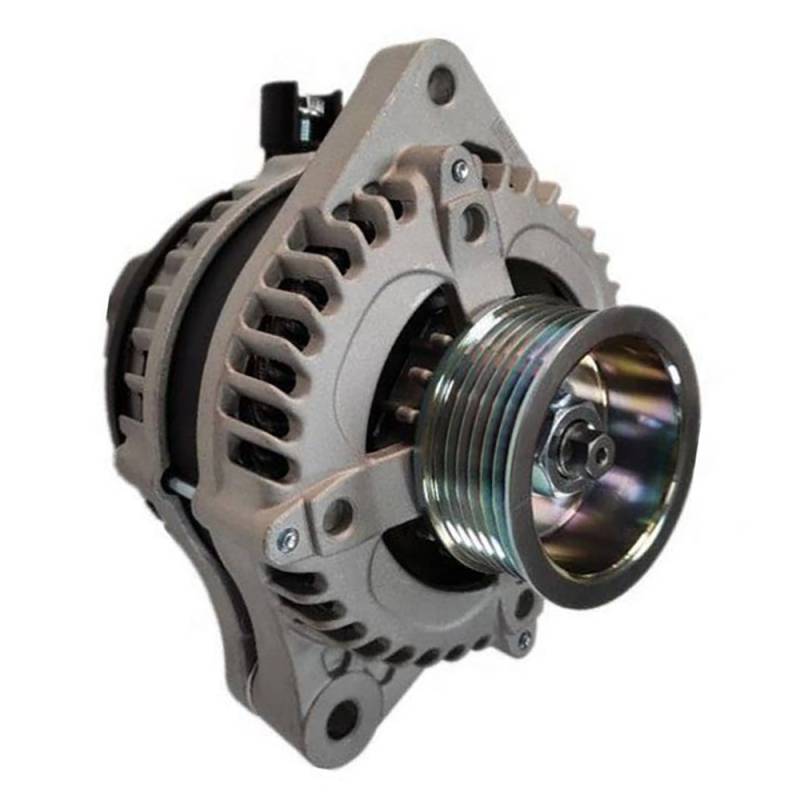

• Type: Alternator | Family: SC (Hairpin)
• Voltage: 12V | Amperage: 130A | Rotation: CW | Polarity: Negative
• Fan: Internal (IF) | Regulator: Internal (IR) | Reg Clock: 11:00
• Mount: Spool | Ear 1: 8.9mm Unthreaded (19mm thick) | Ear 2: 10.5mm Unthreaded (46.3mm thick)
• Pulley: S6 6-Groove Solid | Pulley OD: 71.4mm / 2.811in
• B+ Terminal: M8-1.25 | IG/C/FR/L Terminals: Spade
• Weight: 13.54 lbs / 6.15 kg | Condition: New
APPLICATIONS:
• Honda Accord V6 3.5L 3471cc J35Z2 SOHC VTEC 271HP (2008-2010)
• Honda Accord V6 3.5L 3471cc J35Z3 SOHC VTEC 271HP (2011-2012) — J35Z3 ONLY
• Honda Accord Crosstour V6 3.5L 3471cc J35Z3 SOHC VTEC (2010)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
