HARLEY DAVIDSON OEM PART NUMBERS:
• 31458-66
• 31458-66A
• 31458-66B
• 31458-66C
• 31458-66TA
PRESTOLITE PART NUMBERS:
• MGL4004
• P66A
SPECIFICATIONS:

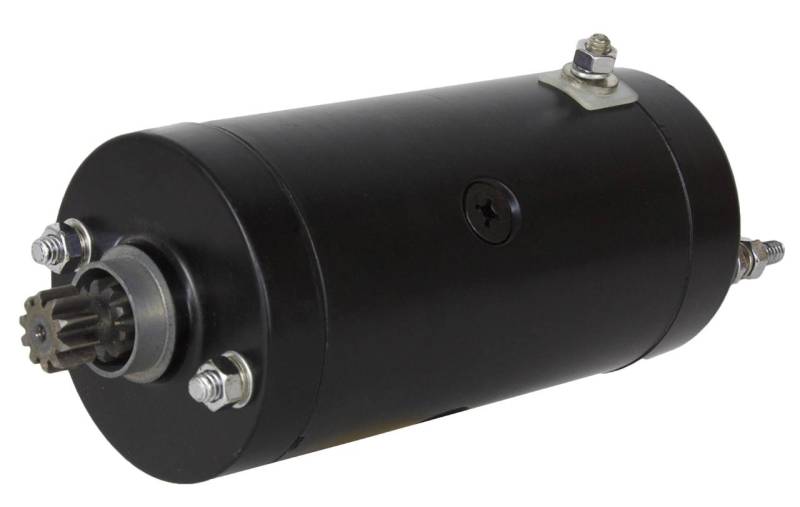

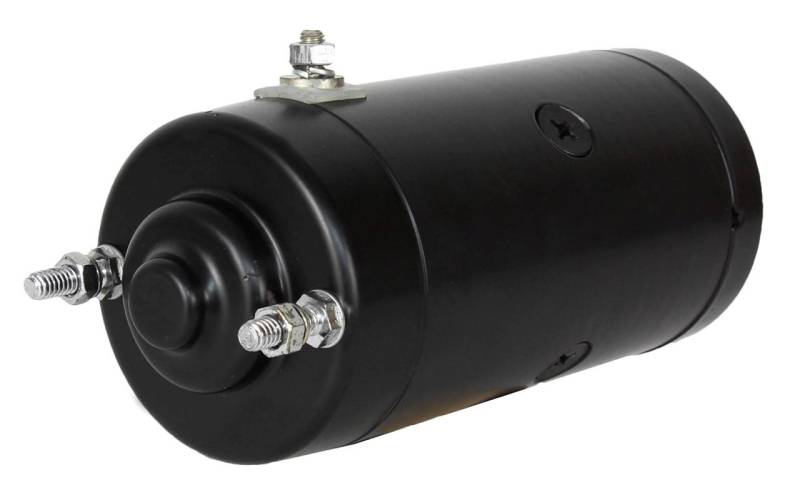

• Type: Motorcycle Starter
• Unit Type: Prestolite Type
• Design: DD (Direct Drive)
• Voltage: 12V
• Power: 1.6 KW
• Rotation: Counterclockwise (CCW)
• Tooth Count: 10
• Gear/Pinion OD: 0.65 in (16.6mm)
• Product Finish: BLACK (Black Enamel Paint)
• Overall Length: 8.175 in (207mm)
• Field Case/Body Length: 6.0 in (154mm)
• Overall Diameter: 2.4 in (60mm)
• Mounting Hole Spacing: 3.0 in (77mm) center to center
• Mounting Thread: 1/4-20 (large)
• Weight: 8.34 lbs (3.79 kg)
COMPATIBLE MOTORCYCLE LINES:
Big Twin Models (1941-1983):
• FL Series - Hydra-Glide, Duo-Glide, Electra Glide
• FLH Electra Glide - 1200cc, 1340cc
• FLT Tour Glide - 1340cc (1980-Mid 1983)
• FXR/FXRS Super Glide II - 1340cc (1982-1983 Prestolite type)
Sportster Models (1975-1985):
• XLH Sportster - 1000cc Ironhead
• XLCH Sportster - 900cc, 1000cc, 1200cc
• XLCR Cafe Racer - 1000cc
• XLS Roadster - 1000cc
• XLX-61 - 1000cc
• XR1000 - 1000cc Performance
ENGINE TYPES:
• Shovelhead - 1200cc (1966-1978), 1340cc (1978-1984)
• Ironhead Sportster - 900cc, 1000cc (1957-1985)
• Pan/Knucklehead transition (1941-1965)

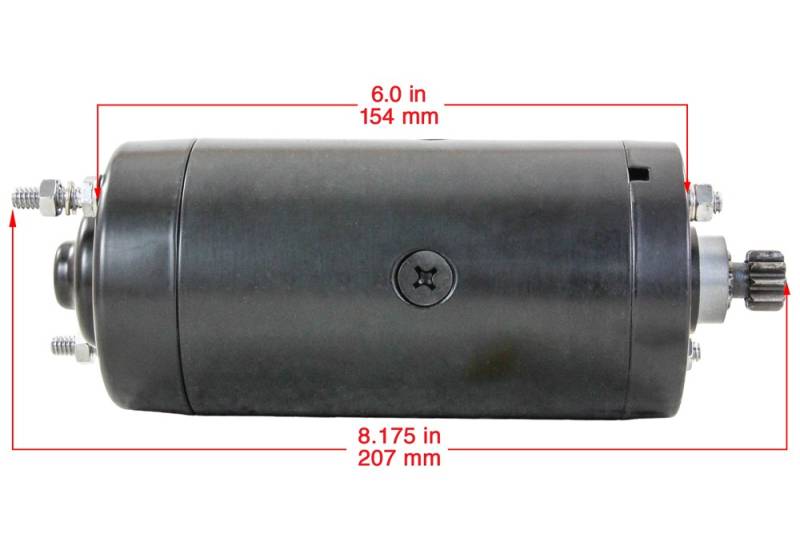

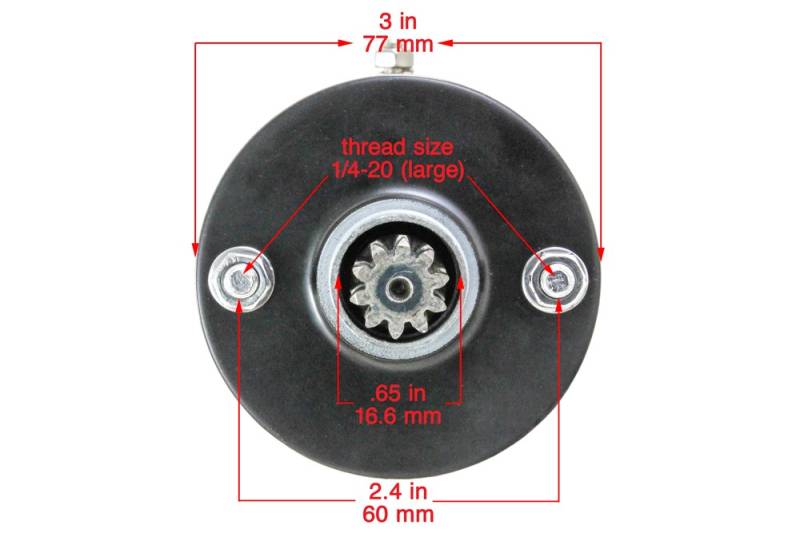

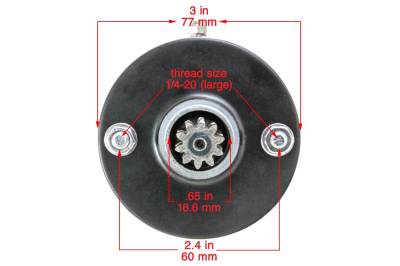

DIMENSIONS (VERIFIED FROM PRODUCT IMAGES):
• Overall Length: 8.175 in (207mm)
• Field Case Length: 6.0 in (154mm)
• Overall Diameter: 2.4 in (60mm)
• Mounting Hole Spacing: 3.0 in (77mm)
• Mounting Thread Size: 1/4-20
• Gear OD: 0.65 in (16.6mm)
⚠️ CRITICAL WARNINGS:
• PRESTOLITE TYPE ONLY - This starter ONLY fits bikes originally equipped with Prestolite type starters
• NOT for Denso, Shindengen, or other starter types
• BLACK FINISH - Not chrome or polished
• Verify OEM part number from your original unit
• Some model years used multiple starter types
• Check your service manual for correct type
INSTALLATION NOTES:
• Direct bolt-on replacement
• Use anti-seize on mounting bolts
• Verify electrical connections before installation
• Test function before final assembly
