1989-2003 Oil Elbow Fitting 90 Degree Crankcase Oil Injection Line Replacement Compatible With

OIL ELBOW FITTING — SEA-DOO 580/650/720/800 APPLICATIONS

ROTAX 587 (580cc) — Twin Cylinder 2-Stroke
Bore: 76.5mm x Stroke: 64mm | 50-56 HP | Rotary Valve Induction
- Sea-Doo GT 580 (1990-1991)
- Sea-Doo GTS 580 (1992-1996)
- Sea-Doo GTX 580 (1992-1996)
- Sea-Doo SP 580 (1989-1996)
- Sea-Doo SPI 580 (1993-1996)
- Sea-Doo SPX 580 (1993)
- Sea-Doo XP 580 (1992)

ROTAX 657 (650cc) — Twin Cylinder 2-Stroke
Bore: 78mm x Stroke: 68mm | ~65 HP | Rotary Valve Induction
- Sea-Doo GTX 650 (1994-1995)
- Sea-Doo SPX 650 (1994-1995)
- Sea-Doo XP 650 (1993-1995)
- Sea-Doo XPI 650 (1994)

ROTAX 717 (720cc) — Twin Cylinder 2-Stroke
Bore: 82mm x Stroke: 68mm | 85 HP | Rotary Valve Induction
- Sea-Doo GS 720 (1997-2001)
- Sea-Doo GSI 720 (1997)
- Sea-Doo GTI 720 (1996-2003)
- Sea-Doo GTI LE 720 (2002-2003)
- Sea-Doo GTS 720 (1996-2001)
- Sea-Doo HX 720 (1995-1997)
- Sea-Doo SP 720 (1997)
- Sea-Doo SPI 720 (1996)
- Sea-Doo SPX 720 (1996-1997)
- Sea-Doo XP 720 (1995)

ROTAX 787 (800cc) — Twin Cylinder 2-Stroke RAVE
Bore: 82mm x Stroke: 75mm | 110 HP | RAVE Exhaust Valves
- Sea-Doo GSX 800 (1996-1997)
- Sea-Doo GSX RFI 800 (1999-2001)
- Sea-Doo GTI LE RFI 800 (2003)
- Sea-Doo GTX 800 (1996-1997)
- Sea-Doo GTX RFI 800 (1998-2002)
- Sea-Doo SPX 800 (1997-1999)
- Sea-Doo XP 800 (1995-1997)

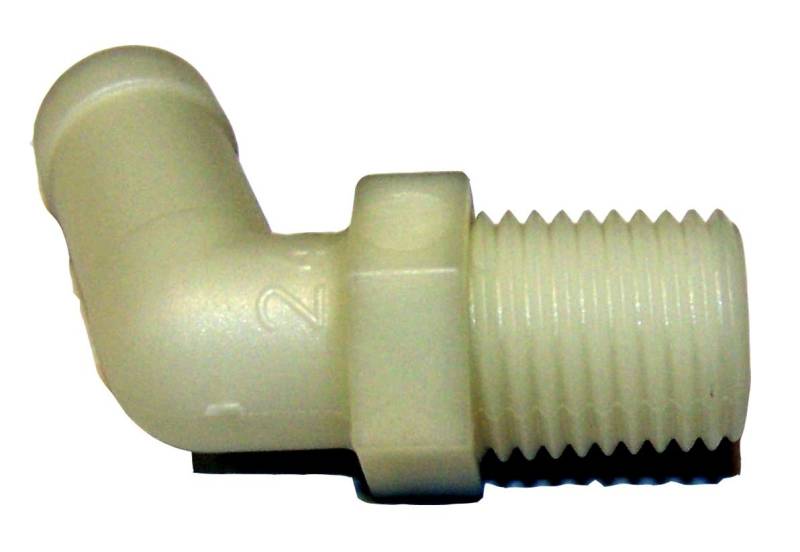

NOTE: This 90-degree oil elbow fitting connects the oil injection line to the crankcase on all Sea-Doo 2-stroke Rotax engines (587/657/717/787). Common replacement during engine service or when oil injection system maintenance is performed.
